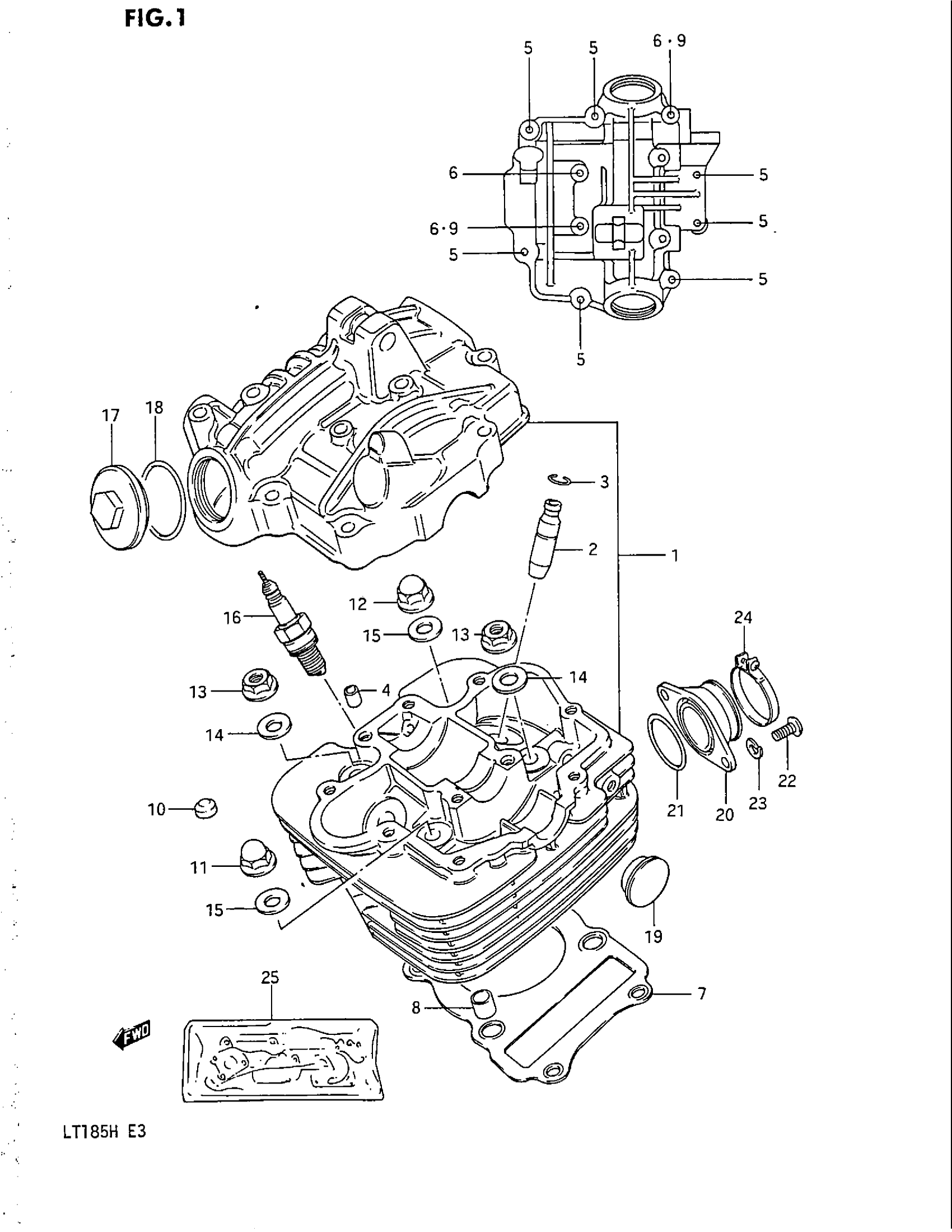

Suzuki LT185 (1987) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-24401.

11100-24403

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$30.22

3

.RING (10X85)

09381-10004

$1.35

4

PIN

09206-08001

$1.77

5

BOLT This part replaces 01517-06358.

01550-06357

$2.80

6

BOLT This part replaces 01517-06608.

01550-06607

$4.53

7

GASKET, CYLINDER HEAD This part replaces 11141-24400.

11141-18A00

$13.01

8

PIN

04211-11169

$1.77

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

10

PAD, RUBBER

11151-45000

$3.62

11

NUT This part replaces 09159-08047.

09159-08049

$4.25

12

NUT

09159-08049

$4.25

13

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

14

WASHER

09160-08039

$1.95

15

GASKET This part replaces 09168-08012.

09168-08013

$2.80

16

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$2.80

16

SPARK PLUG (DENSO,X22ESR-U) This part replaces 09482-00183.

09482-00222

$4.90

17

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$11.16

18

.O RING (D:3,ID:29.5)

09280-30001

$1.70

19

PLUG, HEAD

09241-22002

$4.73

20

PIPE, INTAKE

13110-18900

$37.00

21

O RING

09280-32006

$1.99

22

SCREW This part replaces 02112-06168.

02112-06167

$1.43

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

24

CLAMP This part replaces 09402-42306.

09402-42303

$4.36

25

GASKET SET | OPT This part replaces 11400-24820.

11400-24823

Unavailable
