1992 Suzuki LT160E Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 1992 Suzuki LT160E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

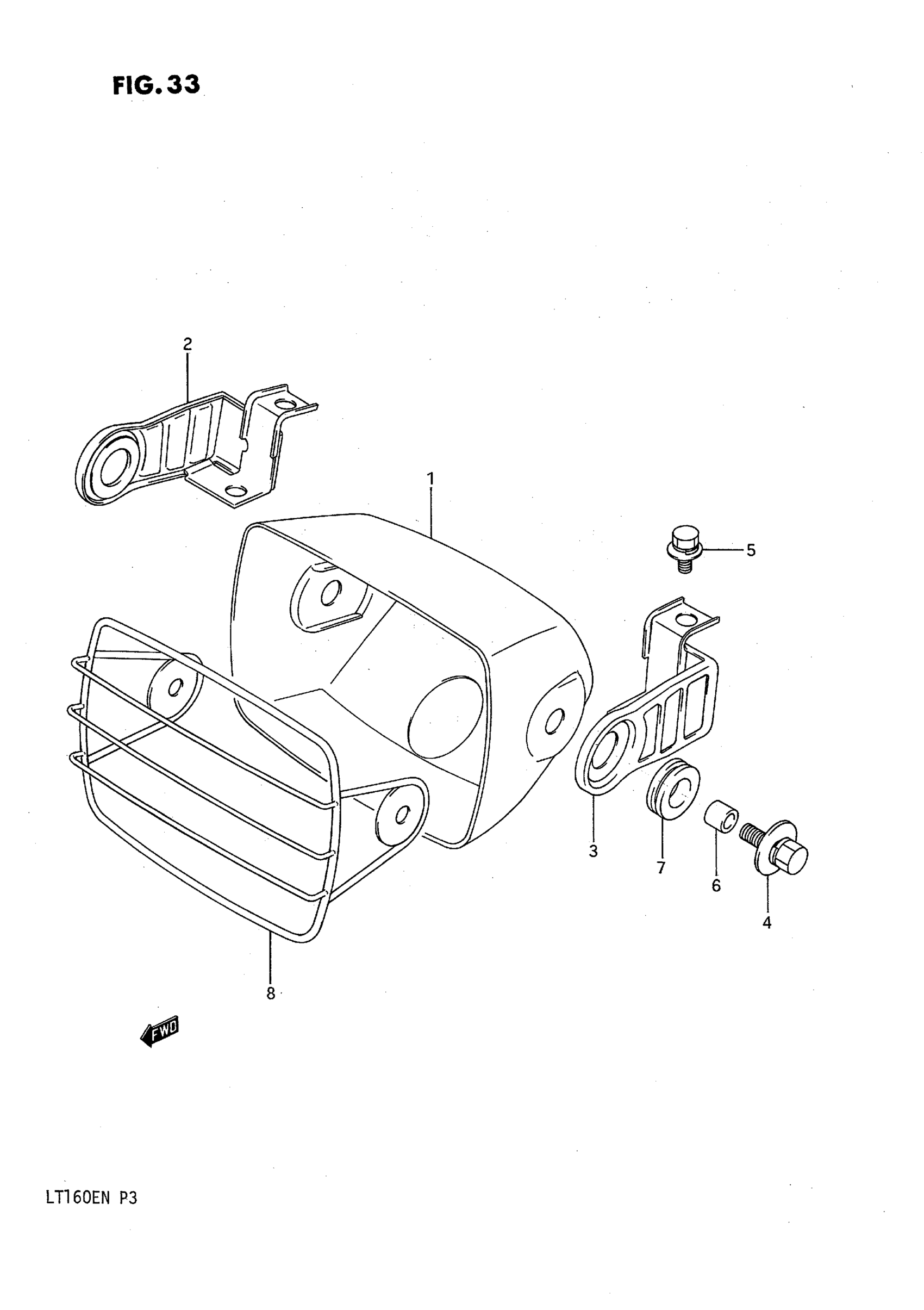

1992 Suzuki LT160E Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP (BLACK) | MODEL K This part replaces 51811-02C00-19F.

51811-02C00-291

1
Out of stock

1

HOUSING, HEADLAMP (BLACK) | MODEL L/M/N

51811-02C00-291

1
Out of stock

2

BRACKET, HEADLAMP RH

51530-02C00

1
Out of stock

3

BRACKET, HEADLAMP LH

51540-02C00

1
Out of stock

4

BOLT This part replaces 01187-08165.

01580-0816A

2
Out of stock

5

BOLT This part replaces 09118-08136.

09118-08119

2
Out of stock

6

SPACER

09180-08007

2
Out of stock

7

CUSHION

51827-02C00

2
Out of stock

8

GUARD, HEADLAMP | OPT

48500-02C00

1
Out of stock
← Headlamp Magneto →
