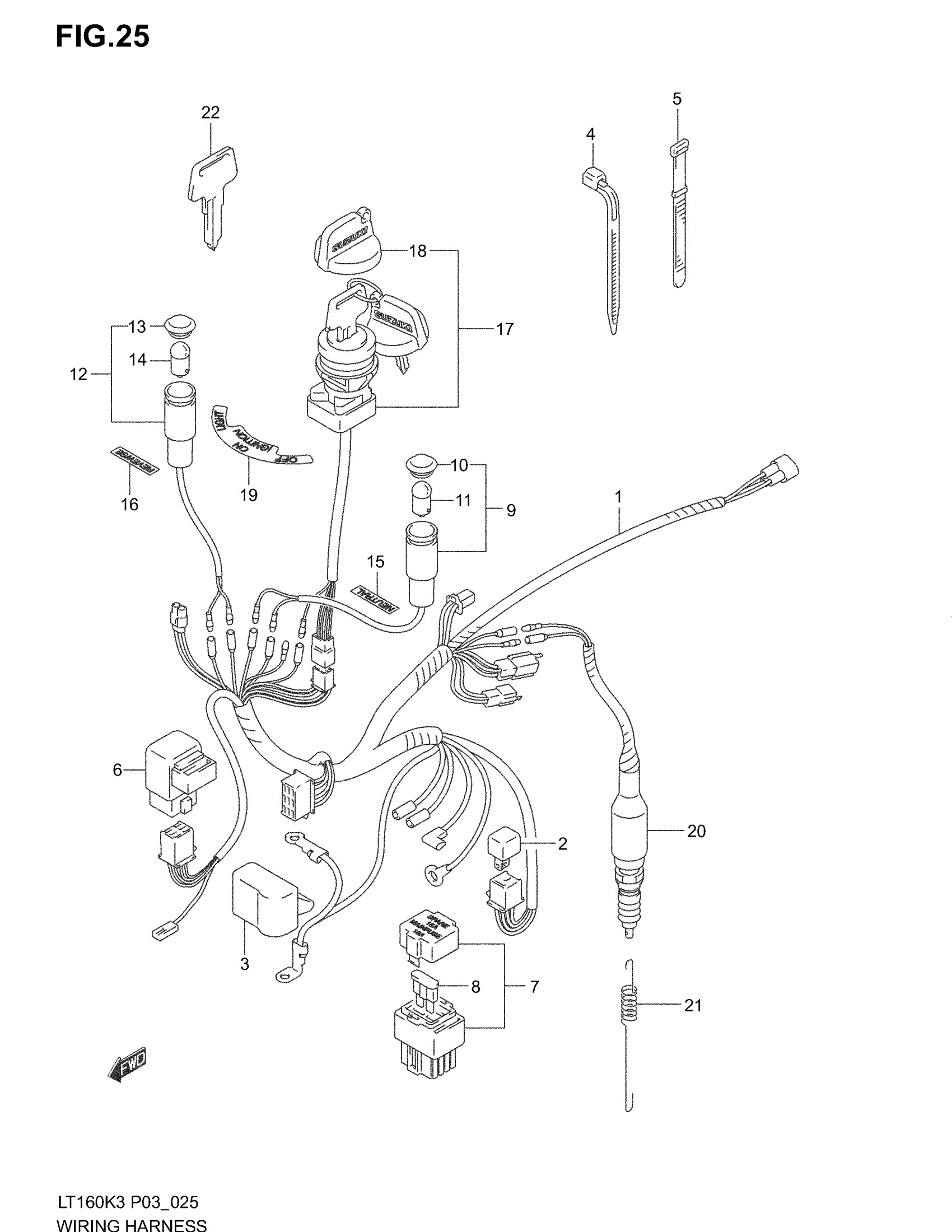

Suzuki LT160 (2004) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 2 - 3

36610-02C60

$291.03

2

RECTIFIER ASSY

32800-16A00

$22.07

3

CAP, BATTERY (+)

33624-02C00

Unavailable

4

CLAMP (L:125)

09407-14403

$2.31

4

CLAMP (L:165)

09407-18402

$2.29

4

CLAMP (L:235)

09407-25401

$4.33

5

CLAMP

09407-12402

$2.82

6

RELAY, NEUTRAL START

38740-24X50

$43.23

7

BOX ASSY, FUSE | Includes Item(s) 8

36740-04701

$25.08

8

FUSE (15A)

09481-15101

$2.77

9

LAMP ASSY, NEUTRAL | Includes Item(s) 10 - 11

36320-02C00

Unavailable

10

LENS

36321-43000

$4.74

11

BULB (12V,3.4W)

09471-12001

$1.73

12

LAMP ASSY, REVERSE | Includes Item(s) 13 - 14

36360-02C00

Unavailable

13

LENS

36361-43200

$6.00

14

BULB (12V,3.4W)

09471-12001

$1.73

15

LABEL, NEUTRAL

36367-02C00

Unavailable

16

LABEL, REVERSE

36367-02C10

$4.12

17

SWITCH ASSY,IGN | Includes Item(s) 18 This part replaces 37110-02C00.

37110-02C01

$131.20

18

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.77

19

LABEL, CONTRAL INDENTIFICATION

37139-02C01

$6.23

20

SWITCH ASSY,STO This part replaces 37740-25C00.

37740-25C01

Unavailable

21

SPRING This part replaces 09443-06058.

09443-06088

$5.28

22

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.71

22

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.71
