2004 Suzuki LT160 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2004 Suzuki LT160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

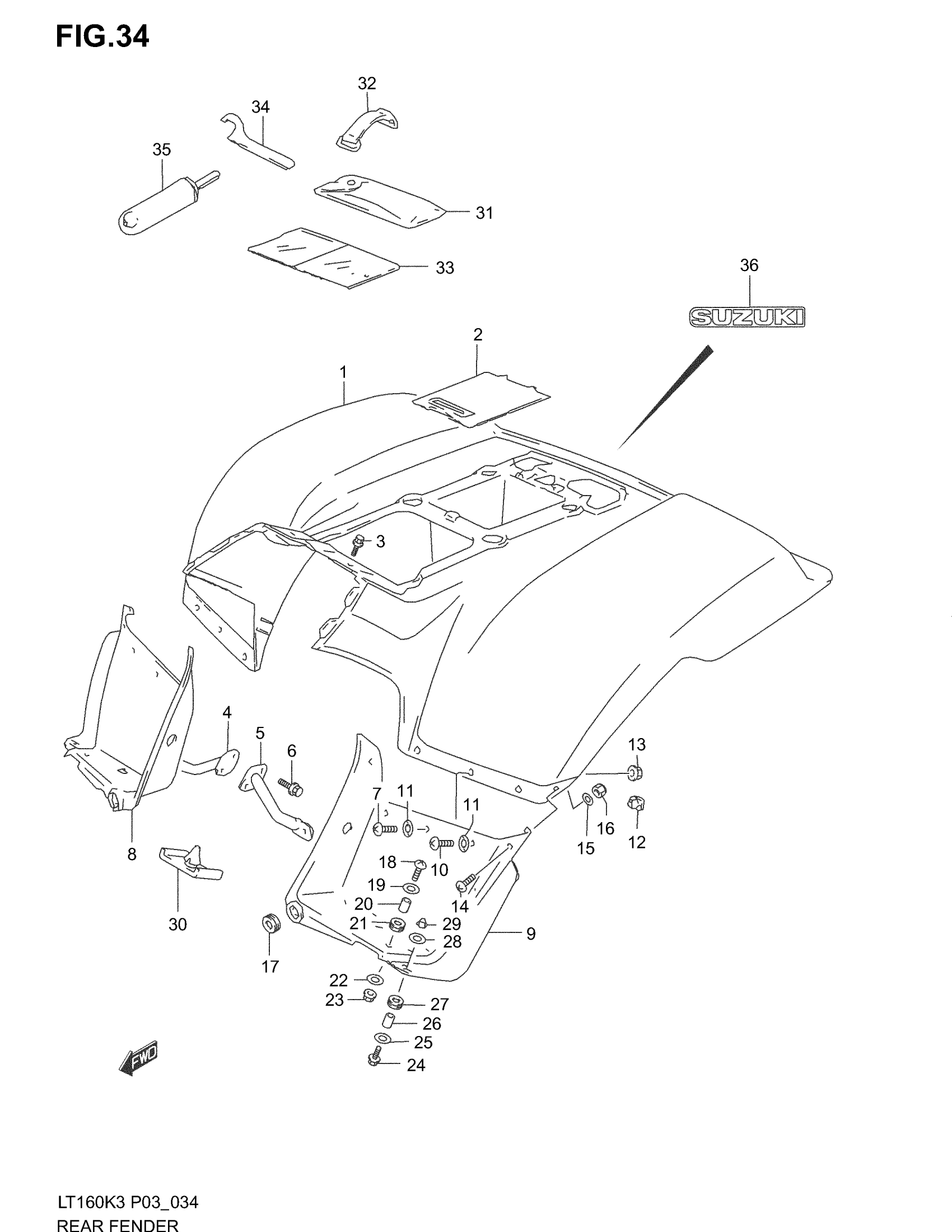

2004 Suzuki LT160 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (YELLOW)

63111-02C01-YU1

1
Out of stock

2

COVER, FENDER (BLACK)

63171-02C00-291

1
Out of stock

3

BOLT

09118-06017

4
Out of stock

4

REINFORCEMENT, RH

63140-02C00

1
Out of stock

5

REINFORCEMENT, LH

63150-02C00

1
Out of stock

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

4
Out of stock

7

SCREW This part replaces 02142-06203.

02142-0620A

2
Out of stock

8

BODY, MUD GUARD RH (BLACK)

63330-02C10-291

1
Out of stock

9

BODY, MUD GUARD LH (BLACK)

63340-02C10-291

1
Out of stock

10

SCREW

09136-06004

6
Out of stock

11

WASHER, MUD GUARD

09160-06109

2
Out of stock

12

NUT

09146-06003

6
Out of stock

13

NUT, CENTER

08319-31067

2
Out of stock

14

.SCREW This part replaces 02142-05123.

02142-0512A

2
Out of stock

15

2

$1.97

In stock

16

NUT This part replaces 08319-31053.

08319-3105B

2
Out of stock

17

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

18

SCREW, REAR This part replaces 02142-05203.

02142-0520B

2
Out of stock

19

WASHER

09160-05037

2
Out of stock

20

SPACER

09180-06248

2
Out of stock

21

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

22

WASHER

09160-05501

2
Out of stock

23

NUT This part replaces 08319-31053.

08319-3105B

2
Out of stock

24

BOLT This part replaces 01550-05163.

01550-0516B

2
Out of stock

25

WASHER

09160-05501

2
Out of stock

26

SPACER

09180-06248

2
Out of stock

27

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

4
Out of stock

28

WASHER

09160-05037

2
Out of stock

29

NUT This part replaces 08313-10053.

08313-1005B

2
Out of stock

30

CUSHION

63191-02C00

2
Out of stock

31

TOOL ASSY This part replaces 09800-21019.

09800-21075

1
Out of stock

32

BAND This part replaces 09462-000E6.

09462-00046

1
Out of stock

33

BAG,OWNER'S MAN This part replaces 94980-01C01.

94980-01C02

1
Out of stock

34

CLAMP, WRENCH

09822-00004

1
Out of stock

35

GAUGE ASSY,AIR PRESSUR

96200-18A02

1
Out of stock

36

EMBLEM | MODEL K3

68111-19B30-HW1

1
Out of stock

36

EMBLEM | MODEL K4

68111-19B30-GY8

1
Out of stock
