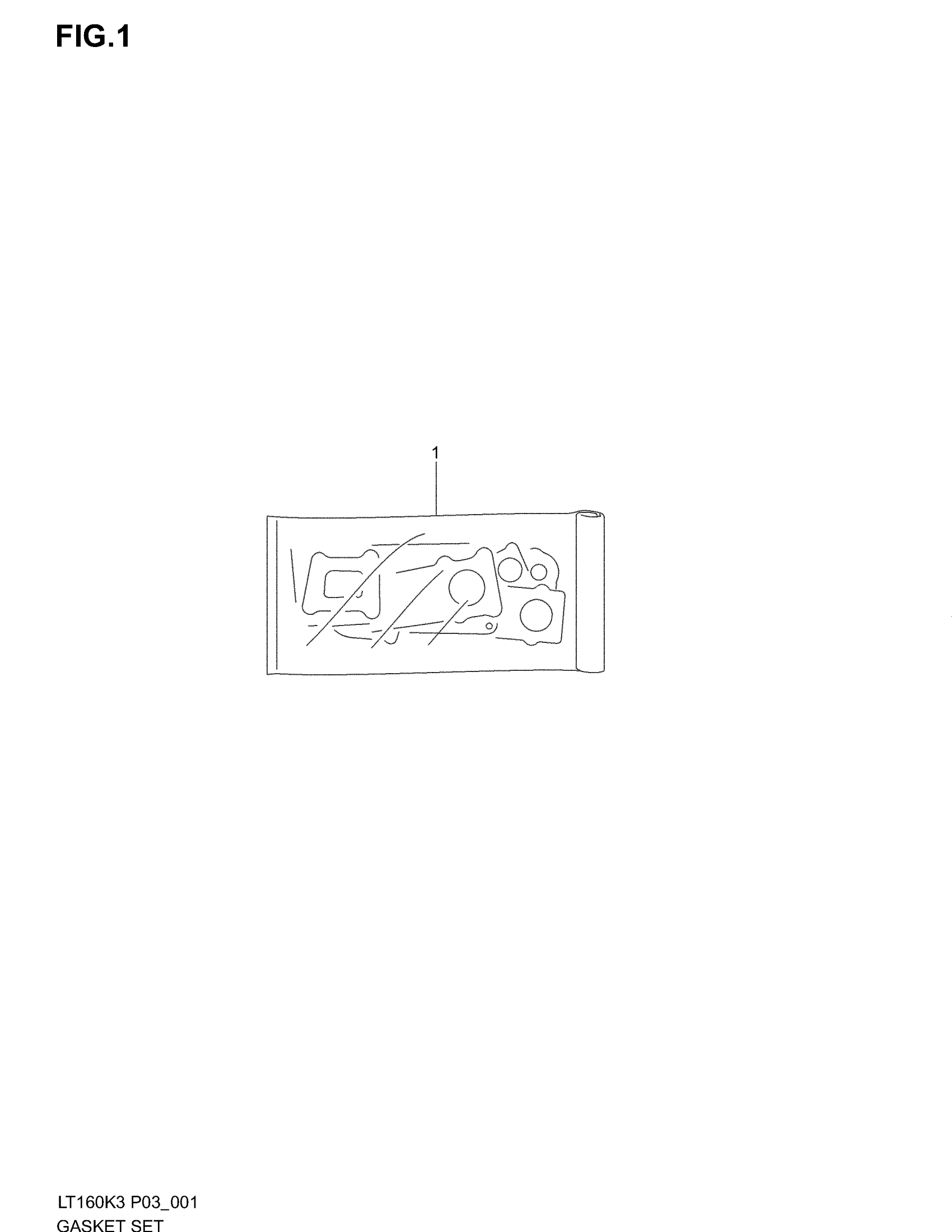

Suzuki LT160 (2004) GASKET SET Diagram

#

Description
Price

1

GASKET SET | OPT; Includes Item(s) 2 - 28 This part replaces 11401-02844.

11401-02846

Unavailable

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-02C01

$11.44

3

GASKET, CYLINDER | NOT SHOWN

11241-24402

$11.44

4

GASKET, CLUTCH COVER | NOT SHOWN

11482-02C10

$21.48

5

GASKET, MAGNETO COVER | NOT SHOWN

11483-02C10

$10.95

6

GASKET,CL RLSE | NOT SHOWN This part replaces 11495-02C10.

11495-02C11

$7.67

7

.GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-32410

$2.80

8

.GASKET,EXHAUST | NOT SHOWN This part replaces 14181-02C01.

14181-18C00

$6.91

9

GASKET (5.8X13X1.2) | NOT SHOWN

09168-06023

$2.09

10

GASKET (8.2X14X1) | NOT SHOWN This part replaces 09168-08008.

09168-08016

$1.70

11

GASKET (8.5X20X2.3) | NOT SHOWN

09168-08013

$2.80

12

GASKET (8.2X14X1.6) | NOT SHOWN

09168-08015

$2.80

13

GASKET (14.1X18X1.5) | NOT SHOWN

09168-14004

$1.69

14

O RING (D:1.2,ID:4.0) | NOT SHOWN

09280-04004

$1.76

15

.O RING (D:1.9,ID:8.6) | NOT SHOWN

09280-09005

$3.44

16

O RING (D:1.9,ID:9.8) | NOT SHOWN

09280-10016

$3.13

17

O RING (D:2.2,ID:11.8) | NOT SHOWN

09280-12006

$1.56

18

O RING (D:1.9,ID:13.0) | NOT SHOWN

09280-13004

$2.25

19

O RING (D:3.2,ID:15.8) | NOT SHOWN

09280-16008

$2.18

20

O RING (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.70

21

O RING (D:2.5,ID:21) | NOT SHOWN

09280-21008

$1.97

22

.O-RING (D:3,ID:24.5) | NOT SHOWN

09280-24003

$1.61

23

O RING (D:2.4,ID:26.2) | NOT SHOWN

09280-26005

$2.38

24

.O RING (D:3,ID:29.5) | NOT SHOWN

09280-30001

$1.70

25

O RING (D:2.3,ID:29.7) | NOT SHOWN

09280-30008

$8.36

26

O RING (D:2.4,ID:53.6) | NOT SHOWN

09280-54002

$5.77

27

.O RING (D:2.4,ID:60.5) | NOT SHOWN

09280-60005

$2.95

28

O RING (D:2.5,ID:71.9) | NOT SHOWN

09280-70009

$4.40
