1987 Suzuki LT125 Rear Fender Diagram

← All diagrams

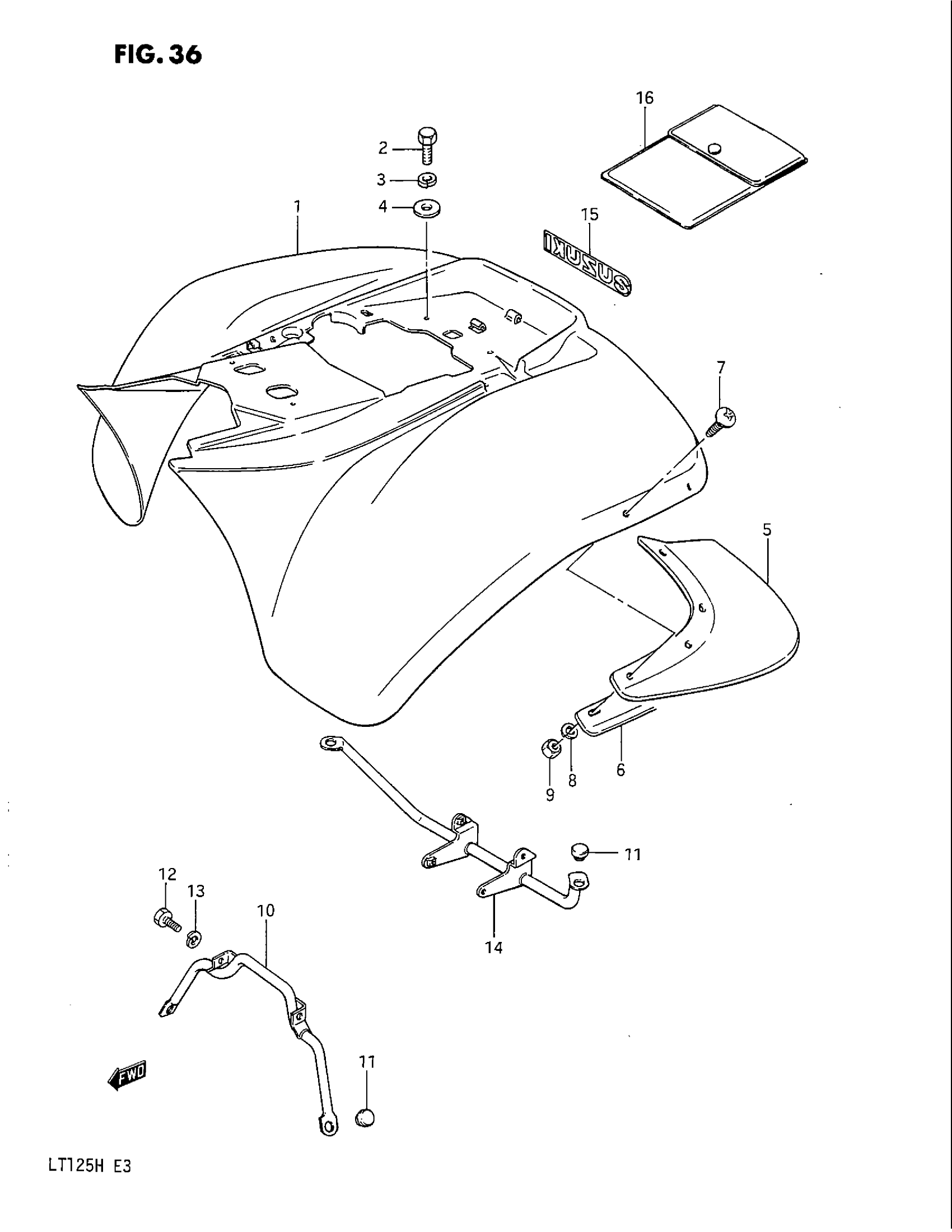

Find the part on the Rear Fender diagram for your 1987 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT125 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (WINNING ORANGE) | MODEL F This part replaces 63111-24305-00N.

63111-24305-25G

1
Out of stock

1

FENDER, REAR (WINNING ORANGE) | MODEL G/H

63111-24305-25G

1
Out of stock

2

BOLT This part replaces 01107-06127.

01500-06127

4
Out of stock

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

4
Out of stock

4

WASHER This part replaces 09160-06007.

09160-06084

4
Out of stock

5

MUD GUARD, REAR FENDER

63331-24300

2
Out of stock

6

PLATE, MUD GUARD

63332-24300

4
Out of stock

7

SCREW

02142-06167

8
Out of stock

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

8
Out of stock

9

.NUT This part replaces 08310-11067.

08310-00067

8
Out of stock

10

REINFORCEMENT, FRONT

63120-18901

1
Out of stock

11

CAP (OD:20) This part replaces 09250-12010.

09250-12016

4
Out of stock

12

BOLT This part replaces 01107-06126.

01500-0612A

2
Out of stock

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

2
Out of stock

14

REINFORCEMENT, REAR

63130-18901

1
Out of stock

15

EMBLEM (WHITE/ORANGE) | MODEL G/H

68112-18901-7ZP

1
Out of stock

16

BAG, OWNERS MANUAL | MODEL H

94980-18B10

—
Out of stock
