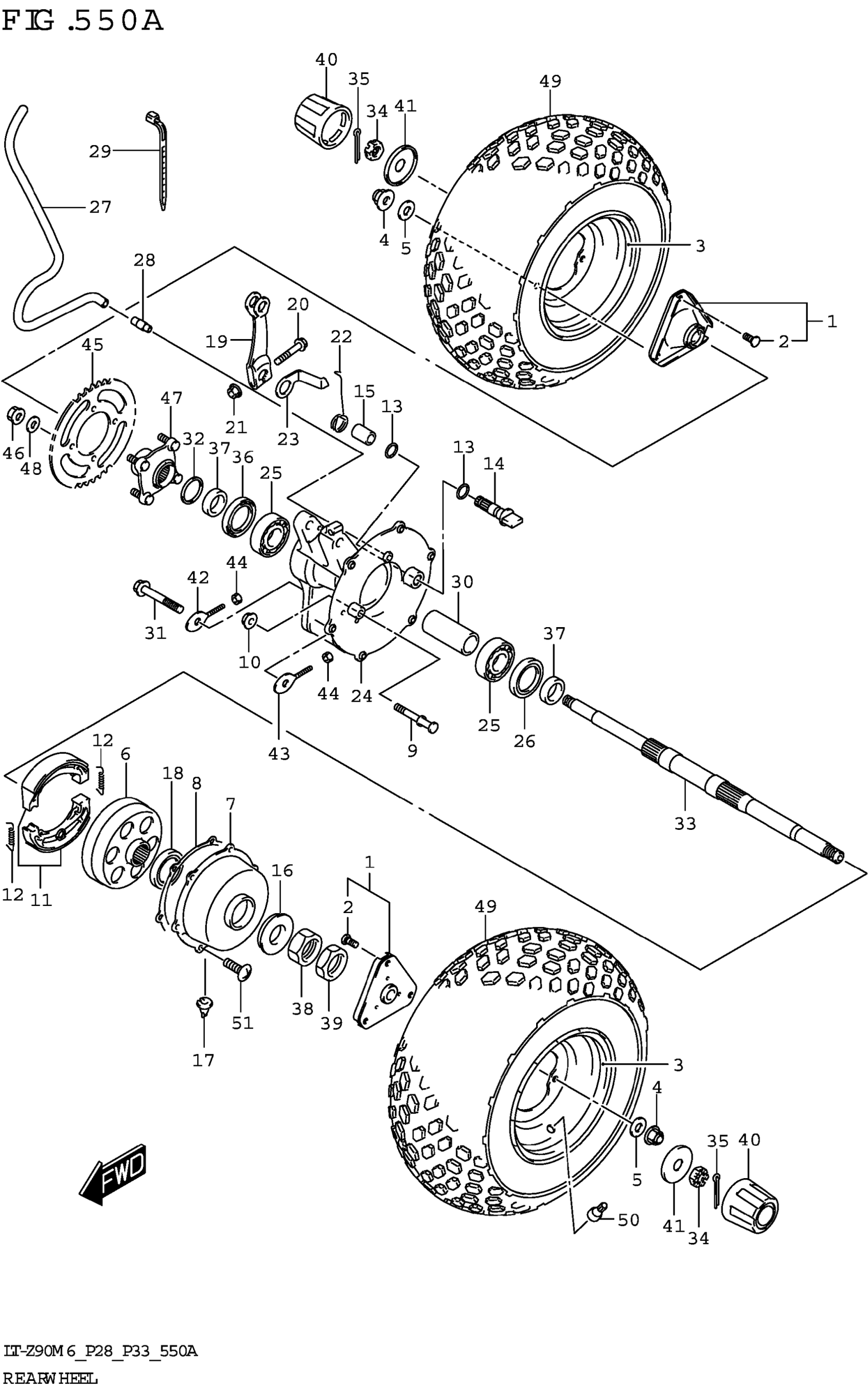

Suzuki LT-Z90M6 (2026) REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

64110-40B50

$149.10

2

.BOLT (10X23)

09119-10048

$3.41

3

RIM,FRONT WHEEL (8X5.5AT,SILV | R)

55310-40B00-13L

$347.33

4

NUT

08316-1010B

$2.65

5

WASHER (10X20X2.3)

09160-10142

$2.37

6

DRUM,REAR BRAKE

64120-40B10

$492.22

7

COVER,RR BRAKE DRUM

64130-40B10

$82.18

8

PACKING,REAR BRAKE DRUM COVER

64125-40B00

$16.17

9

PIN,REAR BRAKE ANCHOR

64231-40B00

$10.00

10

NUT

08316-1008B

$2.65

11

SHOE SET,REAR BRAKE

64400-08810

$91.17

12

SPRING

64430-14600

$5.12

13

O-RING (D:1.9,ID:13.8)

09280-14004

$1.67

14

CAM,REAR BRAKE

64441-40B00

$24.57

15

SPACER,REAR BRAKE CAM LEVER

64454-40B00

$5.53

16

SEAL,DUST

64729-08H01

$50.73

17

CAP,OD:20 (OD:20)

09250-11002

$2.14

18

SEAL,OIL,42X55X9 (42X55X9)

09282-42001

$16.61

19

LEVER,REAR BRAKE CAM

64451-08H00

Unavailable

20

BOLT (L:30)

01550-0630B

$2.80

21

NUT

08316-1006B

$2.50

22

SPRING,BRAKE CAM LEVER RETURN

64444-40B00

$5.43

23

PLATE,BK LINING INDICATOR

64492-08H00

$5.22

24

HOUSING,RR AXLE BEARING

64721-08H00

$359.47

25

BEARING (32X65X17)

09262-32024

$35.55

26

SEAL,OIL,42X65X7 (42X65X7)

09283-42015

$13.56

27

HOSE

09352-50005-00B

$12.58

28

UNION

09364-06004

Unavailable

29

CLAMP (L:125)

09407-14403

$2.24

30

SPACER,REAR AXLE BEARING

64731-08H00

$20.13

31

BOLT,14X105 (14X105)

09103-14033

$10.50

32

SEAL,OIL,42X54X9.2 (42X54X9.2

09286-42001

$15.42

33

AXLE,REAR

64711-08H00

$784.48

34

NUT

09141-16004

$7.67

35

PIN

04111-4030A

$1.37

36

SEAL,OIL,42X65X8.5 (42X65X8.5

09283-42016

$25.05

37

SPACER,REAR AXLE OUTER

64741-08H00

$23.17

38

NUT,REAR AXLE

64871-08H00

$35.00

39

NUT

64872-08H00

$22.20

40

CAP,WHEEL CENTER

54725-18A00

$9.41

41

HOLDER,CENTER CAP

64726-08H00

Unavailable

42

ADJUSTER,CHAIN,R

61411-08H00

$65.47

43

ADJUSTER,CHAIN,L

61421-08H00

$65.47

44

NUT

08319-3108A

$2.31

45

SPROCKET,REAR (NT:24)

64511-08H00

$104.63

46

NUT

08319-3108A

$2.31

47

FLANGE,SPROCKET MOUNTING

64610-08H00

$189.02

48

WASHER

08322-0108B

$2.37

49

TIRE,REAR (AT19X7-8,DI-K549)

65100-40B60

$297.24

50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

51

SCREW

02142-0608B

$1.79
