2025 Suzuki LT-Z90M5 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Suzuki LT-Z90M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

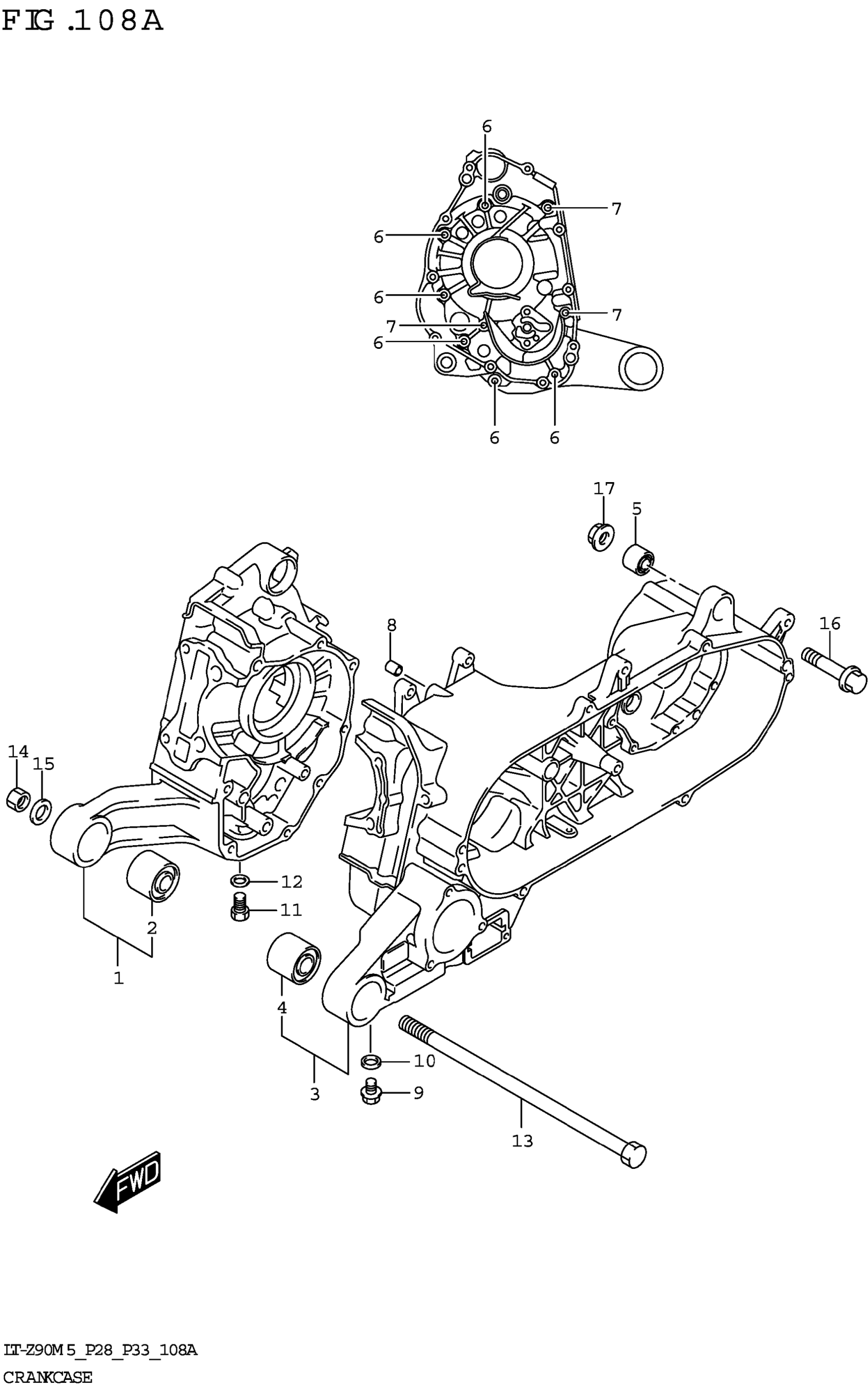

2025 Suzuki LT-Z90M5 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET,R

11310-33821

1
Out of stock

2

.BUSH,ENGINE MTG

11315-33G40

1
Out of stock

3

CRANKCASE SET,L

11320-08810

1
Out of stock

4

.BUSH,ENGINE MTG

11315-33G40

1
Out of stock

5

.BUSH (10.2X22.3X20)

09319-10032

1
Out of stock

6

BOLT

01547-0655B

6
Out of stock

7

BOLT

01547-0675B

3
Out of stock

8

.PIN (8X11)

09206-08001

2
Out of stock

9

BOLT

01550-0812B

1
Out of stock

10

GASKET (8.2X14X1)

09168-08016

1
Out of stock

11

BOLT,OIL DRAIN | OIL DRAIN

11316-33G00

1
Out of stock

12

GASKET (10X14X3.6) | OIL DRAIN

09168-10002

1
Out of stock

13

BOLT,12X235 (12X235)

09100-12089

1
Out of stock

14

NUT

08319-3112B

1
Out of stock

15

WASHER (12.5X24X3.2)

09160-12082

2
Out of stock

16

BOLT (10X45)

09103-10218

3
Out of stock

17

NUT (M10)

09159-10115

3
Out of stock
