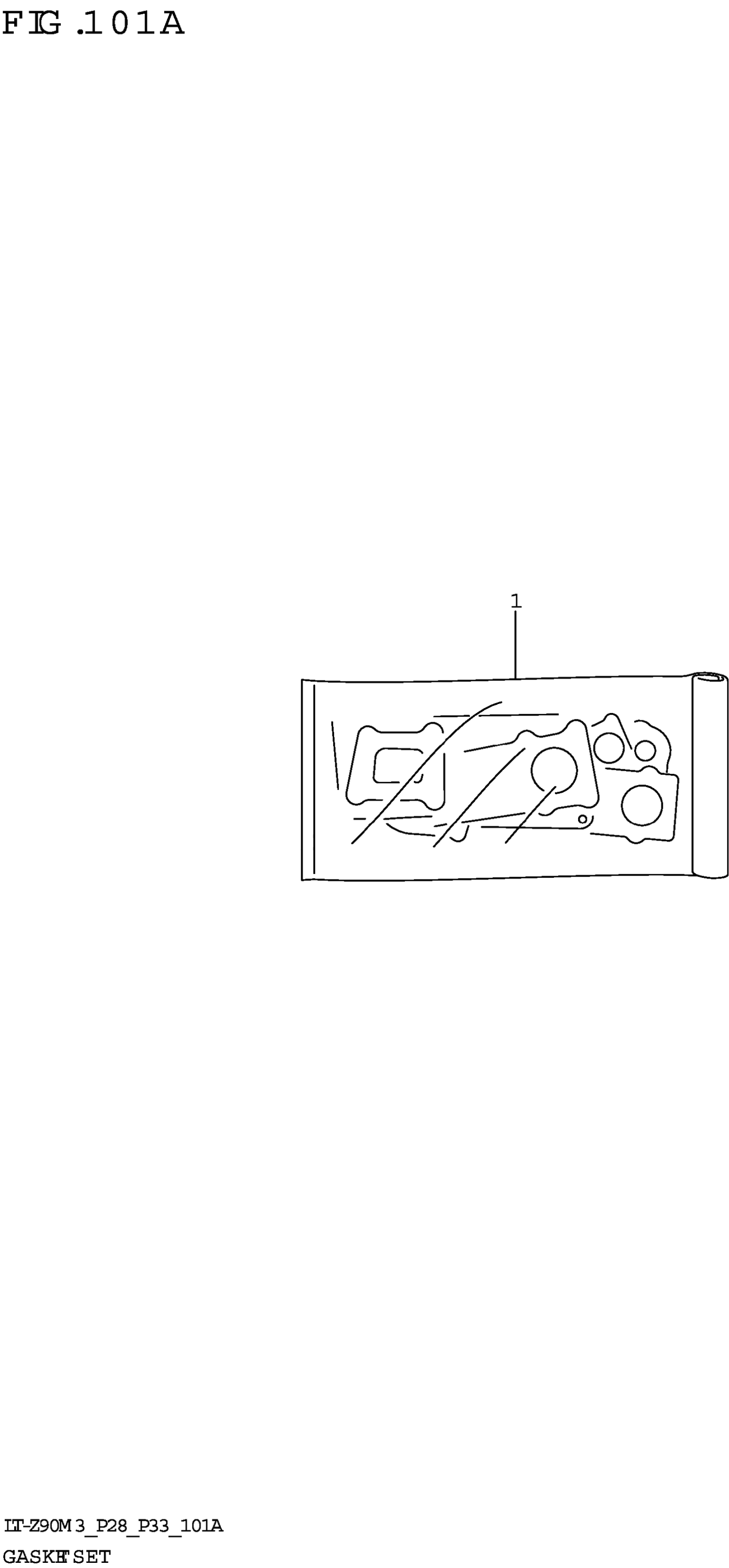

Find the part on the Gasket Set diagram for your 2023 Suzuki LT-Z90M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki LT-Z90M3 Gasket Set Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11401-08821

1

$192.27

In stock

2

1

$32.88

In stock

3

.GASKET, CYLINDER HEAD COVER | NOT ILLUSTRATED

11173-33G50

1
Out of stock

4

.GASKET,BREATHER PLATE | NOT ILLUSTRATED

11177-08H00

1
Out of stock

5

.GASKET,CYLINDER | NOT ILLUSTRATED

11241-33G00

1
Out of stock

6

.GASKET,CLUTCH COVER | NOT ILLUSTRATED

11482-08H00

1
Out of stock

7

.GASKET,CRANKSHAFT COVER,R | NOT ILLUSTRATED

11483-33G40

1
Out of stock

8

.GASKET,GEAR BOX COVER | NOT ILLUSTRATED

11484-33G40

1
Out of stock

9

1

$0.45

In stock

10

1

$12.80

In stock

11

.GASKET,OIL STRAINER CAP | NOT ILLUSTRATED

16524-20E00

1
Out of stock

12

1

$15.85

In stock

13

.O-RING (D:1.9,ID:13) | NOT ILLUSTRATED

09280-13004

1
Out of stock

14

O-RING (D:3.1,ID:16.8) | NOT ILLUSTRATED

09280-17003

1
Out of stock

15

.O-RING (D:2.4,ID:52.6) | NOT ILLUSTRATED

09280-54001

1
Out of stock
