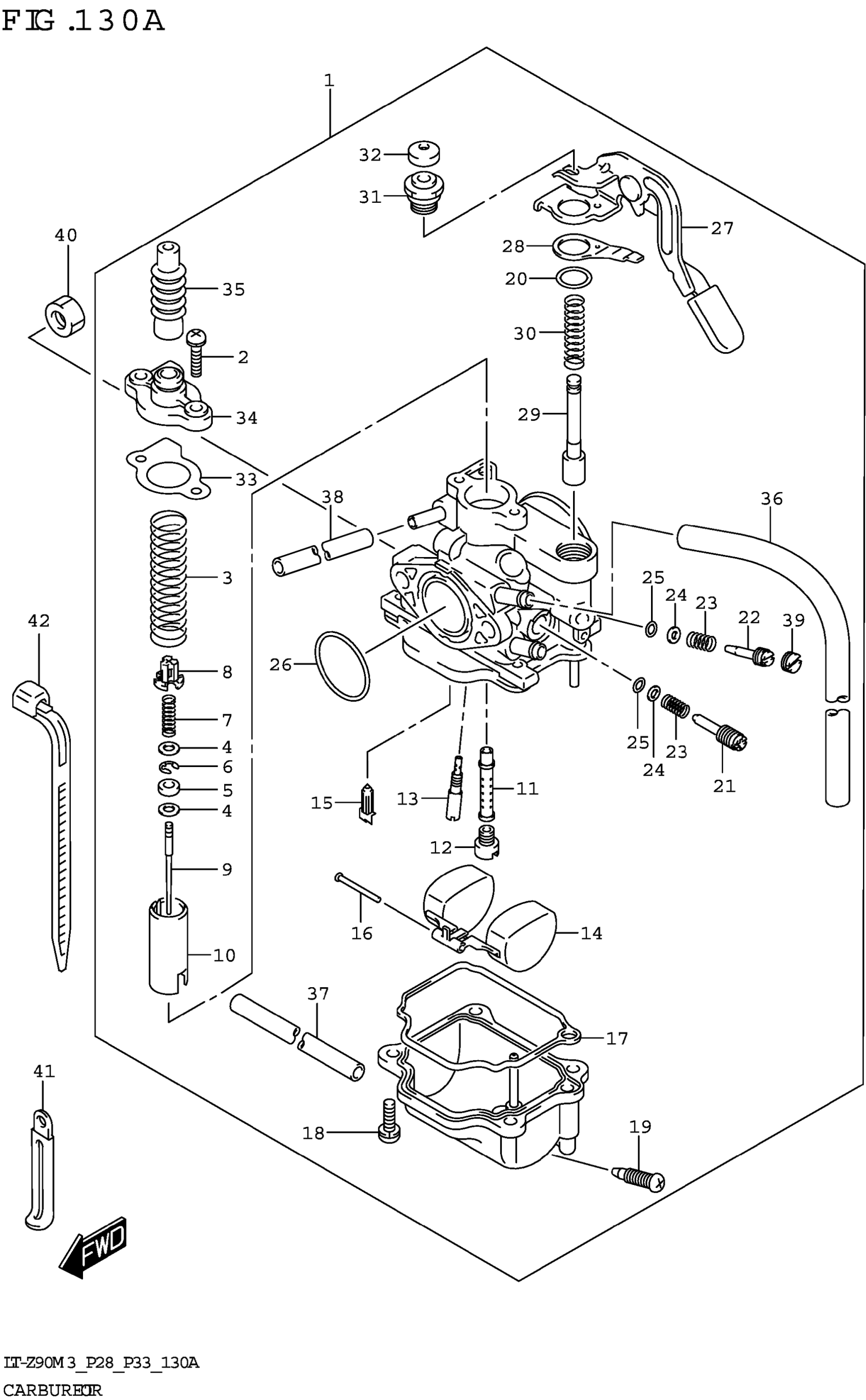

Suzuki LT-Z90M3 (2023) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-08H01

$457.50

2

SCREW This part replaces 13601-04128.

02112-3412B

$2.50

3

.SPRING

13573-08H00

Unavailable

4

.WASHER

13382-23F00

$5.02

5

.RING

13387-23F00

$6.83

6

.E RING

13533-98410

$5.55

7

.SPRING

13481-23F00

$6.40

8

.HOLDER

13418-12F40

$8.13

9

.NEEDLE,JET

13383-08H00

$21.23

10

.PISTON VALVE

13511-08H00

$98.00

11

.JET,NEEDLE

13341-08H00

$46.98

12

.JET,MAIN (#80)

09491-80011

$18.00

13

.JET,PILOT (#17.5)

09492-17012

$26.53

14

.FLOAT

13250-06410

$41.47

15

.VALVE ASSY,NEEDLE

13370-09D00

$36.93

16

.PIN,FLOAT

13254-29C50

Unavailable

17

.O RING,FLOAT CHAMBER

13258-30A01

$7.73

18

.SCREW

13601-04148

$2.80

19

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

20

.O RING (16)

13278-47091

$1.89

21

.ADJUSTER

13267-47A00

$7.98

22

.ADJUSTER

13269-08H00

$14.73

23

.SPRING

13494-09410

$4.92

24

.WASHER (14X17)

13291-29900

$1.87

25

O-RING

13295-29901

$3.97

26

.O-RING (D:2,ID:23.5)

09280-24006

$1.83

27

.LEVER ASSY,STARTER

13420-08H00

$62.35

28

.PLATE,SPRING

13421-08H00

Unavailable

29

.PLUNGER ASSY

13411-08H00

$21.62

30

.SPRING

13417-43G00

$5.10

31

.HOLDER,GUIDE

13418-08H00

$28.43

32

.CAP

13416-46711

$2.93

33

.GASKET

13249-30A10

$4.18

34

.CAP ASSY,TOP

13261-09G20

Unavailable

35

.CAP

13681-36GA0

$14.45

36

.Y2 HOSE

13683-48B01

$15.23

37

.HOSE

13683-35431

$2.47

38

.HOSE

13683-08H01

$12.40

39

.PLUG

13281-05A00

$4.21

40

NUT (6X3.6)

09140-06023

$2.07

41

CLAMP (L:45)

09404-06429

$1.82

42

CLAMP (L:125)

09407-14403

$2.24
