2022 Suzuki LT-Z90M2 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2022 Suzuki LT-Z90M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

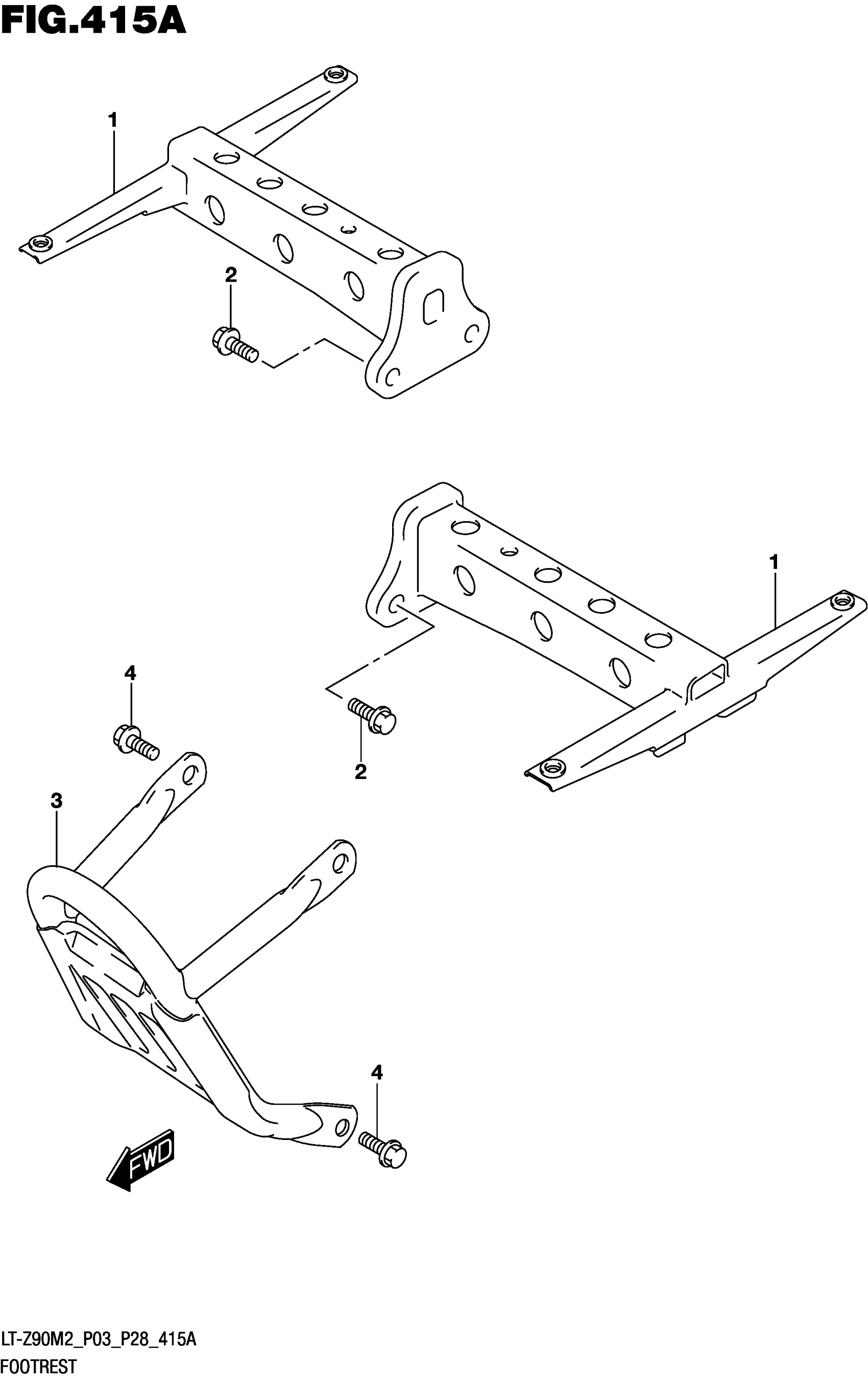

2022 Suzuki LT-Z90M2 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST

43510-08H00

2
Out of stock

2

BOLT (10X25)

09103-10378

4
Out of stock

3

GRIP,FRONT (SILVER)

43990-43G00-13L

1
Out of stock

4

BOLT

01550-0816B

4
Out of stock
← Wiring Harness Frame →

More Body & Frame diagrams
