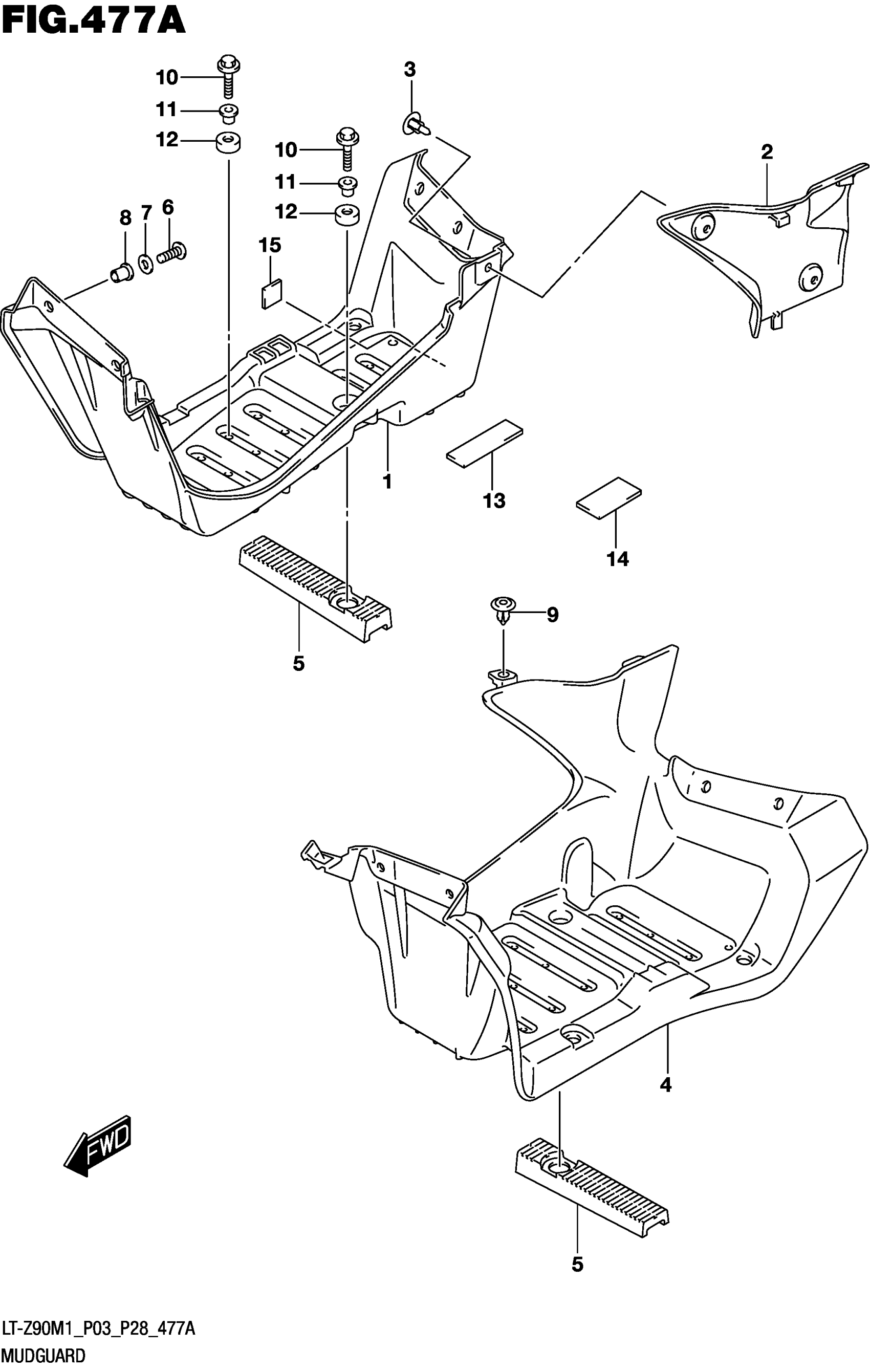

Find the part on the Mudguard diagram for your 2021 Suzuki LT-Z90M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki LT-Z90M1 Mudguard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUD GUARD,FOOTREST,R (BLACK)

63331-08H00-291

1
Out of stock

2

LID,FOOTREST (BLACK)

63332-08H00-291

1
Out of stock

3

CLIP (D:2.4,ID:23.7)

09409-07333

2
Out of stock

4

MUD GUARD,FOOTREST,L (BLACK)

63341-08H00-291

1
Out of stock

5

RUBBER,FOOTREST GUARD

63356-08H00

2
Out of stock

6

SCREW

02142-0520B

6
Out of stock

7

WASHER (5.5X20X1.4)

09160-05046

6
Out of stock

8

NUT (M5)

09159-05019

6
Out of stock

9

CLIP (D:2.4,ID:23.7)

09409-07333

2
Out of stock

10

BOLT (6X20)

01550-0620A

6
Out of stock

11

WASHER (6.3X17X1.6)

09169-06062

6
Out of stock

12

CUSHION (9X18X9.5)

09320-09016

6
Out of stock

13

SHIELD,FOOTREST

63122-08H00

1
Out of stock

14

SHIELD,FOOTREST

63123-08H00

1
Out of stock

15

CUSHION (40X40X5)

13719-84150

1
Out of stock
