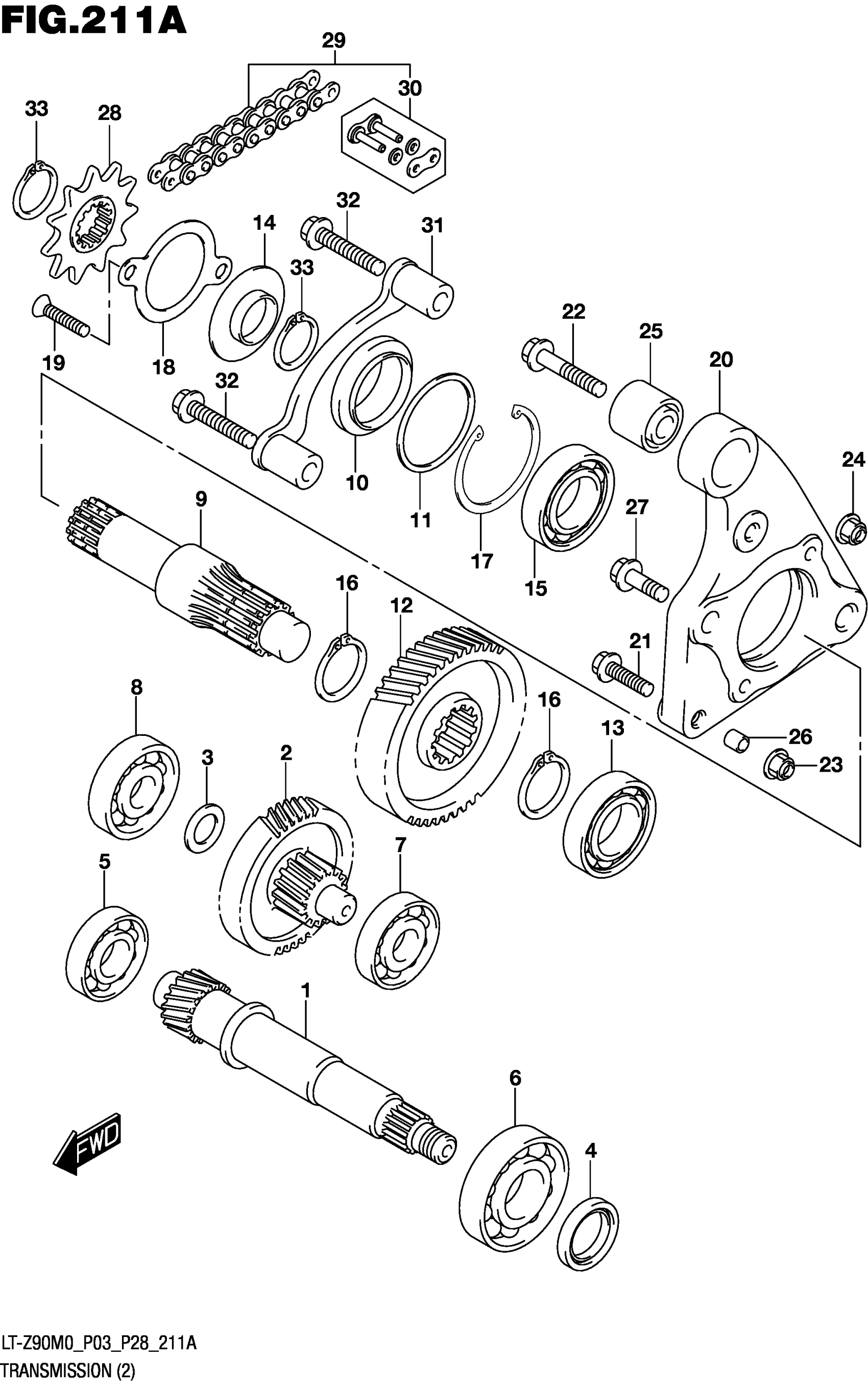

Suzuki LT-Z90M0 (2020) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT,DRIVE (NT:17)

24131-08H00

Unavailable

2

SHAFT,IDLE,NT:15/45 (NT:15/45

24150-33G00

Unavailable

3

SHIM (12X20X1)

09181-12167

$2.24

4

SEAL,OIL This part replaces 09283-20052.

09283-20073

$9.63

5

BEARING (15X35X11)

09262-15031

Unavailable

6

BEARING (20X47X14)

09262-20069

$21.00

7

BEARING (12X28X8)

09262-12001

$16.90

8

BEARING This part replaces 08113-62017.

08113-6201B

$9.28

9

SHAFT,REAR AXLE

24141-08H00

Unavailable

10

SEAL,DRIVE SHAFT,OIL,NO.2

24142-40B00

$11.62

11

WASHER,AXLE SHAFT BEARING (40

24143-08H00

Unavailable

12

GEAR,FINAL DRIVEN,NT:47 (NT:4

24371-33G00

Unavailable

13

BEARING (20X47X14)

09262-20121

$31.06

14

SEAL,OIL,20X47X7 (20X47X7)

09283-20047

$12.00

15

BEARING

08110-62030

$18.06

16

CIRCLIP

08331-31229

$2.70

17

CIRCLIP

08331-4147A

Unavailable

18

RETAINER,AXLE SHAFT

24751-08H00

Unavailable

19

SCREW

02122-0630A

$1.76

20

HOUSING,RR AXLE SHAFT

24145-08H00

Unavailable

21

BOLT,10X44 (10X44)

09103-10086

Unavailable

22

BOLT (10X45)

09103-10218

$6.15

23

NUT (M10)

09159-10115

$3.21

24

NUT (M10)

09159-10115

$3.21

25

.BUSH (10.2X22.3X20)

09319-10032

$10.08

26

PIN (13X14)

04211-13149

$2.88

27

BOLT,10X30 (10X30)

09103-10395

$4.12

28

SPROCKET,ENGINE,NT:11 (NT:11)

27511-08H00

$54.93

29

CHAIN ASSY,DRIVE,RK50GSVZ3M (

27600-24F20-060

Unavailable

30

.JOINT SET

27620-24F20

$24.73

31

PLATE,FRONT CHAIN

27640-08H00

Unavailable

32

BOLT

01550-0840B

$4.45

33

CIRCLIP

09380-20009

$2.06
