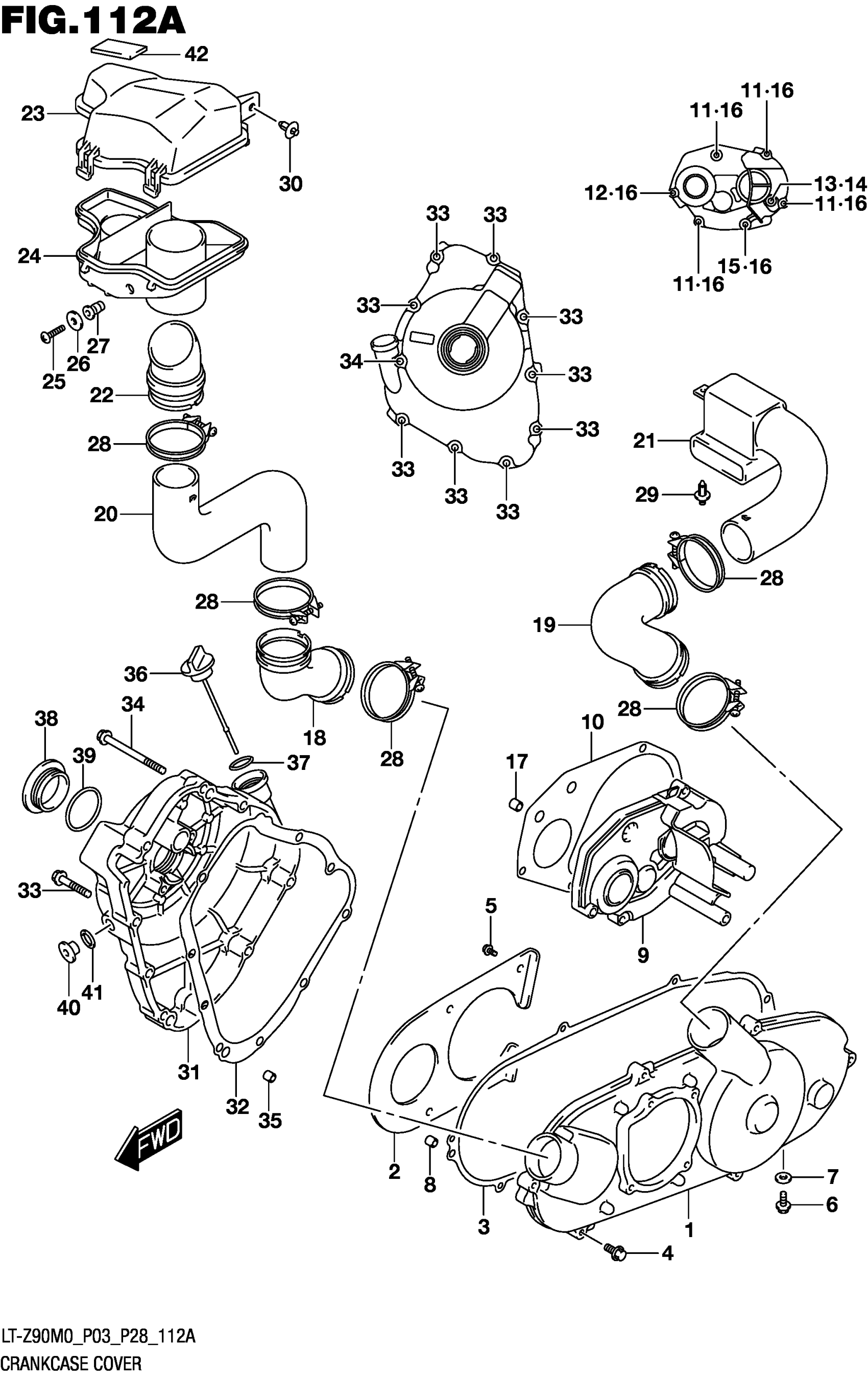

Suzuki LT-Z90M0 (2020) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-08H00

Unavailable

2

PLATE,CLUTCH COVER AIR INTAKE

11346-08H00

Unavailable

3

.GASKET,CLUTCH COVER

11482-08H00

$63.08

4

BOLT

01547-0625B

$2.43

5

SCREW

02112-0510B

$2.00

6

BOLT

01550-0612B

$2.38

7

GASKET (6.2X13X1.2)

09168-06018

$1.70

8

.PIN (8X11)

09206-08001

$1.77

9

COVER, GEAR BOX

11431-33G41

$153.25

10

.GASKET,GEAR BOX COVER

11484-33G40

$21.62

11

BOLT

11432-08H00

Unavailable

12

BOLT

11433-08H00

Unavailable

13

BOLT

01550-0812B

$2.73

14

GASKET (8.2X14X1)

09168-08016

$1.64

15

.BOLT

01547-0695B

$3.04

16

GASKET (6.2X13X1.2)

09168-06018

$1.70

17

.PIN (8X11)

09206-08001

$1.77

18

CONNECTOR,CLG DUCT FR NO.1

11385-08H00

$50.20

19

CONNECTOR,CLG DUCT RR

11386-08H00

$56.12

20

DUCT,BELT CLG FR

11387-08H00

$71.43

21

DUCT,BELT CLG RR

11398-08H00

Unavailable

22

CONNECTOR,CLG DUCT FR NO.2

11388-08H00

Unavailable

23

BOX,INDUCTION UPPER

11393-08H00

$39.10

24

BOX,INDUCTION LOWER

11394-08H00

$34.65

25

SCREW

02142-0520B

$1.77

26

WASHER (5.5X20X1.4)

09160-05046

$1.90

27

NUT (M5)

09159-05019

$6.44

28

CLAMP This part replaces 09402-50203.

09402-50208

$4.30

29

CLIP (5.9X20.5,BLACK)

09409-06322-5PK

$2.84

30

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

31

COVER,MAGNETO

11351-08H00

Unavailable

32

.GASKET,CRANKSHAFT COVER,R

11483-33G40

$37.13

33

BOLT

01547-0630B

$2.73

34

BOLT

01547-0665B

$2.92

35

.PIN (8X11)

09206-08001

$1.77

36

GAUGE,OIL LEVEL

11971-08H00

$11.40

37

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

38

PLUG (36X10,SILVER)

09259-36016-20H

$12.45

39

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

40

PLUG (12X9)

09248-12007

$5.33

41

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

42

CUSHION, REAR FENDER REAR This part replaces 33652-08420.

33651-37000

$4.09
