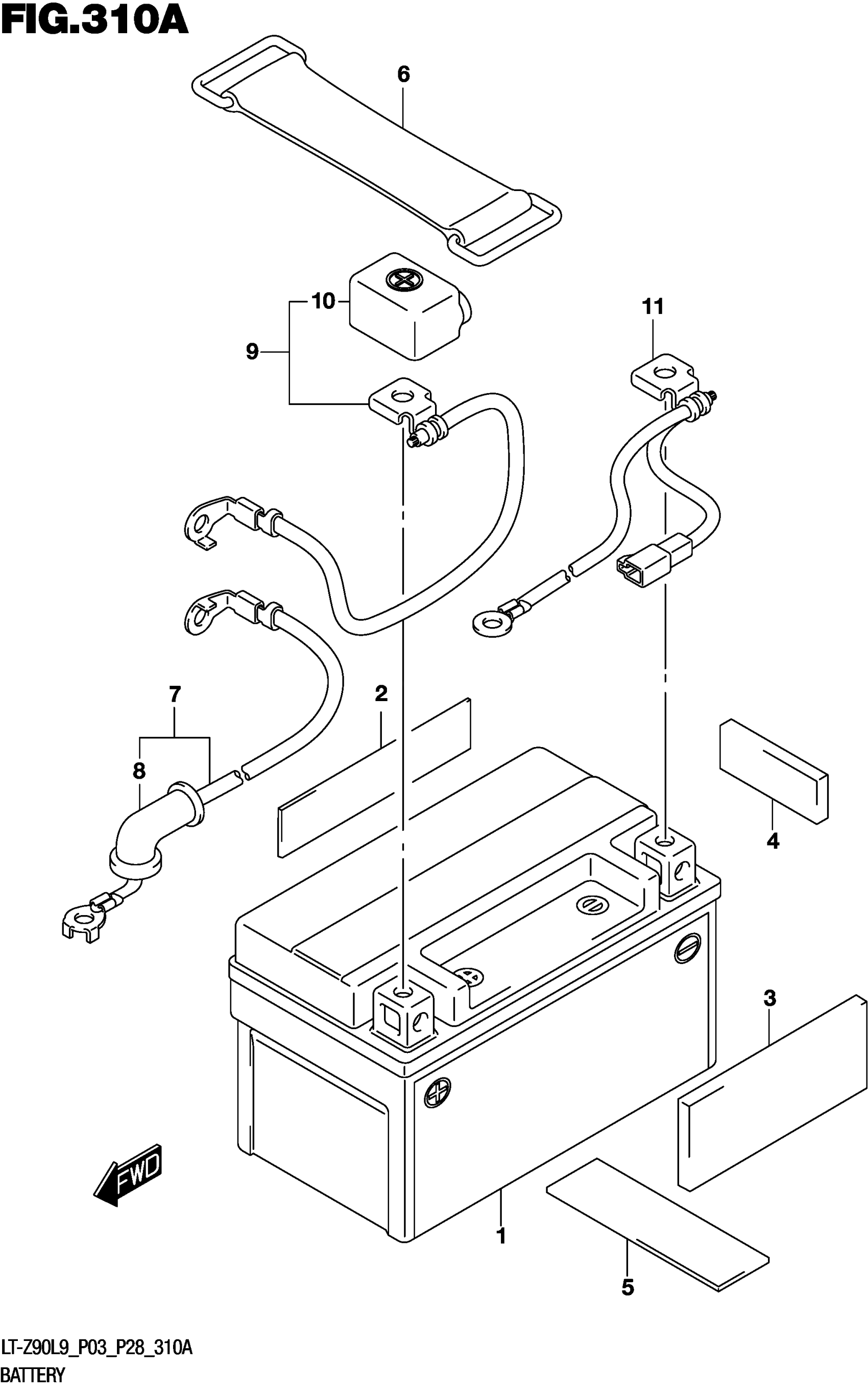

Find the part on the Battery diagram for your 2019 Suzuki LT-Z90L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki LT-Z90L9 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,6AH) This part replaces 33610-46F00.

33610-33C80

1
Out of stock

2

PROTECTOR (20X90X2)

33652-08H00

1
Out of stock

3

PROTECTOR (40X85X6)

33652-08H10

1
Out of stock

4

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

2
Out of stock

4

CUSHION, REAR FENDER REAR | PROFILE (20X45) This part replaces 33652-08420.

33651-37000

1
Out of stock

5

CUSHION, BATTERY (30X130X3) This part replaces 33652-41B00.

33652-19B00

2
Out of stock

6

BAND

09462-00034

1
Out of stock

7

WIRE,STARTER MOTOR LEAD

33810-08H00

1
Out of stock

8

.CAP,STARTER MOTOR LEAD

31861-48B10

1
Out of stock

9

WIRE, BATTERY PLUS

33820-08H01

1
Out of stock

10

.CAP, BATTERY PLUS TERMINAL

33624-10D10

1
Out of stock

11

WIRE,BATTERY MINUS

33860-08H00

1
Out of stock
← Suspension ARM Electrical →
