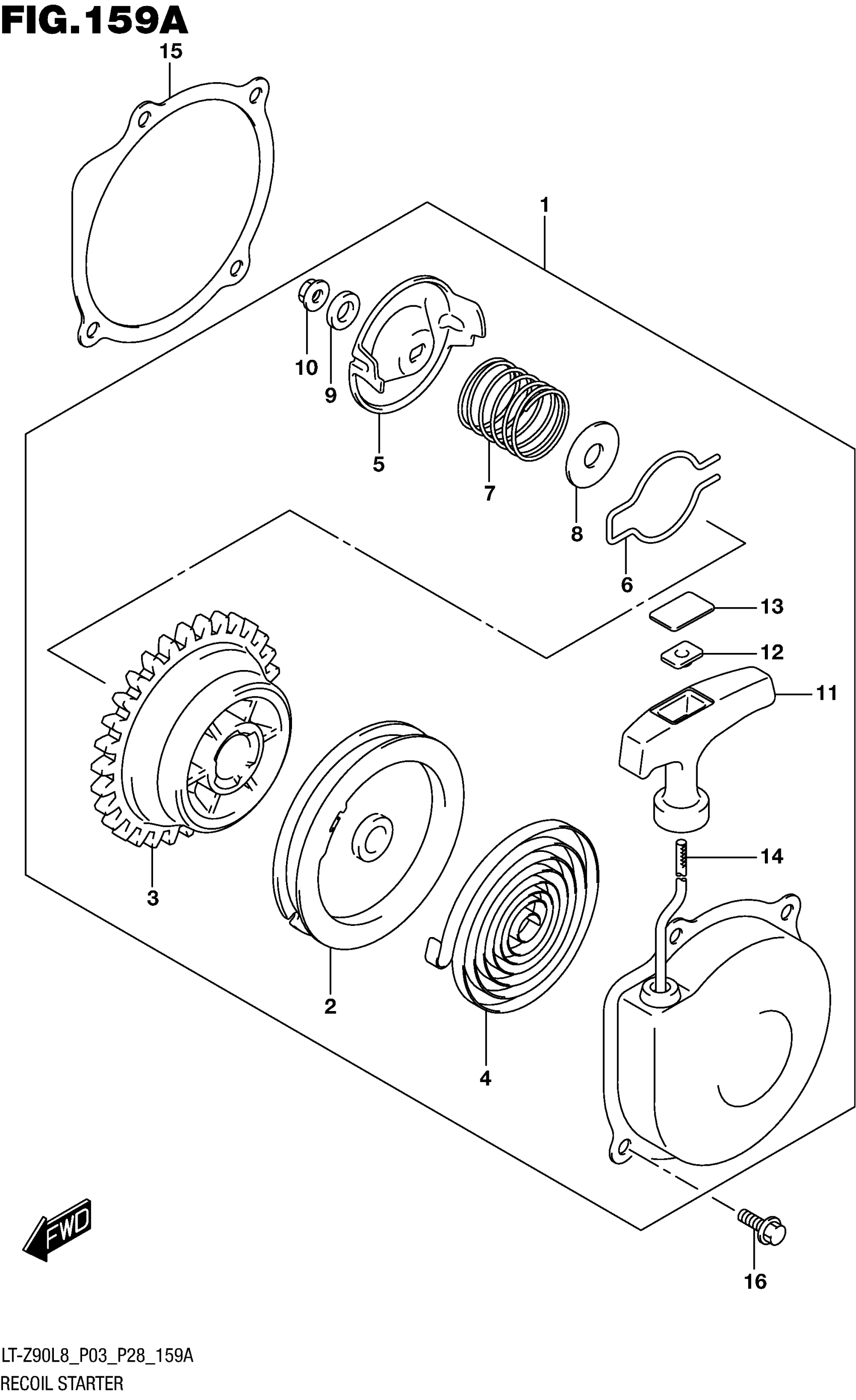

Suzuki LT-Z90L8 (2018) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY,RECOIL

18100-08H01

$289.27

2

.REEL

18121-08H00

$38.05

3

.GEAR

18131-08H00

$38.16

4

.SPRING, SPIRAL

18142-40B00

$27.55

5

.RETAINER

18151-08H00

$31.43

6

.SPRING

18153-40B00

$10.17

7

.SPRING, RETURN

18161-40B00

$19.60

8

WASHER This part replaces 09160-10129.

09160-10035

$1.80

9

.WASHER

09160-08059

$1.70

10

.NUT

18334-40B00

$4.90

11

.KNOB

18211-08H01

Unavailable

12

.REINFORCEMENT

18212-04411

Unavailable

13

.SEAL

18214-08H00

Unavailable

14

.ROPE

18221-08H00

$18.22

15

GASKET

18299-08H00

$15.85

16

BOLT (6X12)

09103-06236

$2.71
