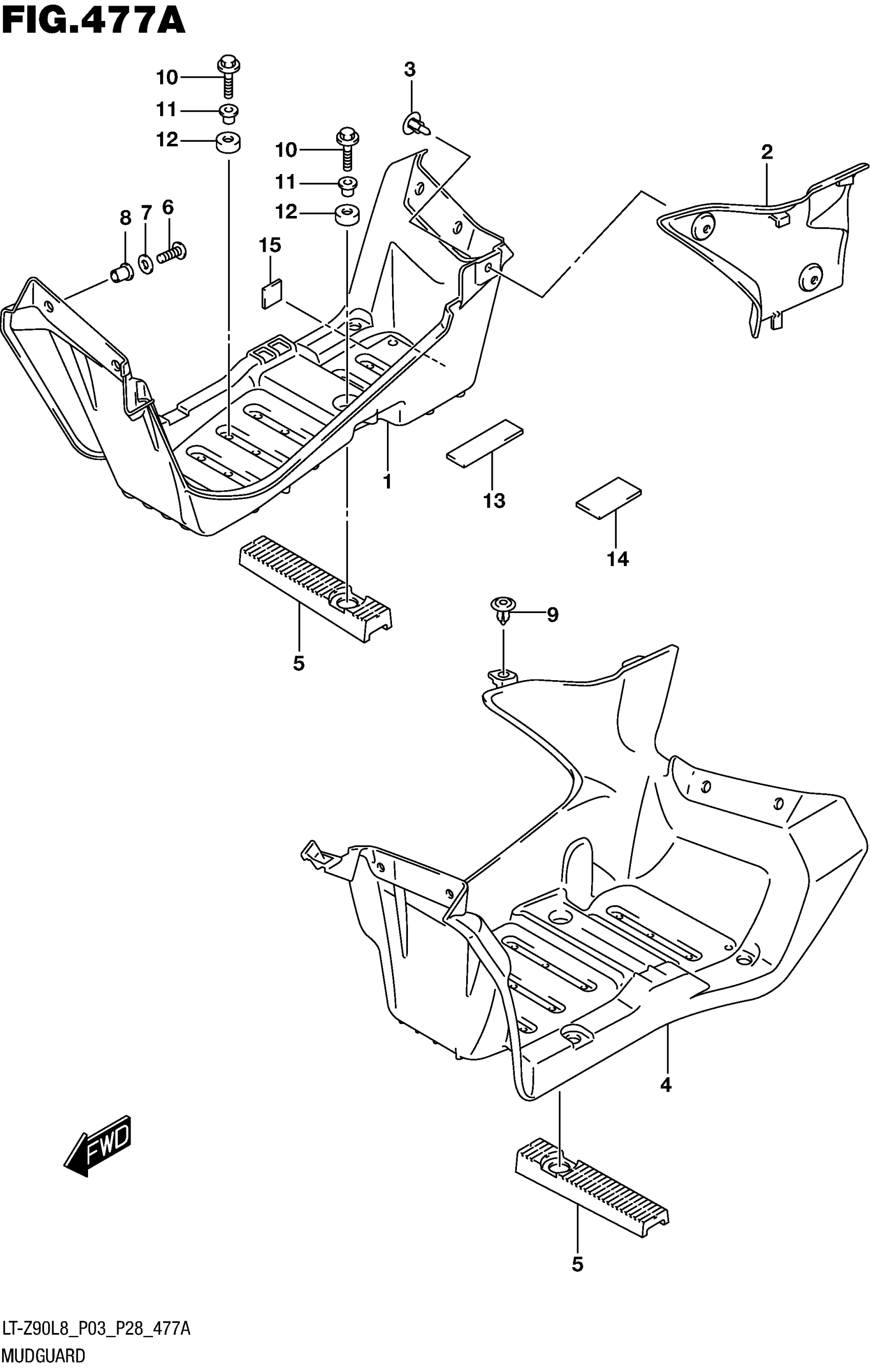

Suzuki LT-Z90L8 (2018) MUDGUARD Diagram

#

Description
Price

1

MUD GUARD,FOOTREST,R (BLACK)

63331-08H00-291

$195.70

2

LID,FOOTREST (BLACK)

63332-08H00-291

$53.48

3

CLIP, LID

09409-07333

$2.29

4

MUD GUARD,FOOTREST,L (BLACK)

63341-08H00-291

$102.25

5

RUBBER,FOOTREST GUARD

63356-08H00

Unavailable

6

SCREW, UPPER

02142-0520B

$1.77

7

WASHER (5.5X20X1.4)

09160-05046

$1.90

8

NUT

09159-05019

$6.44

9

CLIP, UPPER

09409-07333

$2.29

10

BOLT, FOOTREST

01550-0620A

$1.97

11

SPACER, FRONT

09169-06062

$2.50

12

CUSHION, FRONT

09320-09016

$1.97

13

SHIELD,FOOTREST

63122-08H00

Unavailable

14

SHIELD,FOOTREST

63123-08H00

Unavailable

15

PAD

13719-84150

$3.80
