2018 Suzuki LT-Z90L8 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2018 Suzuki LT-Z90L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

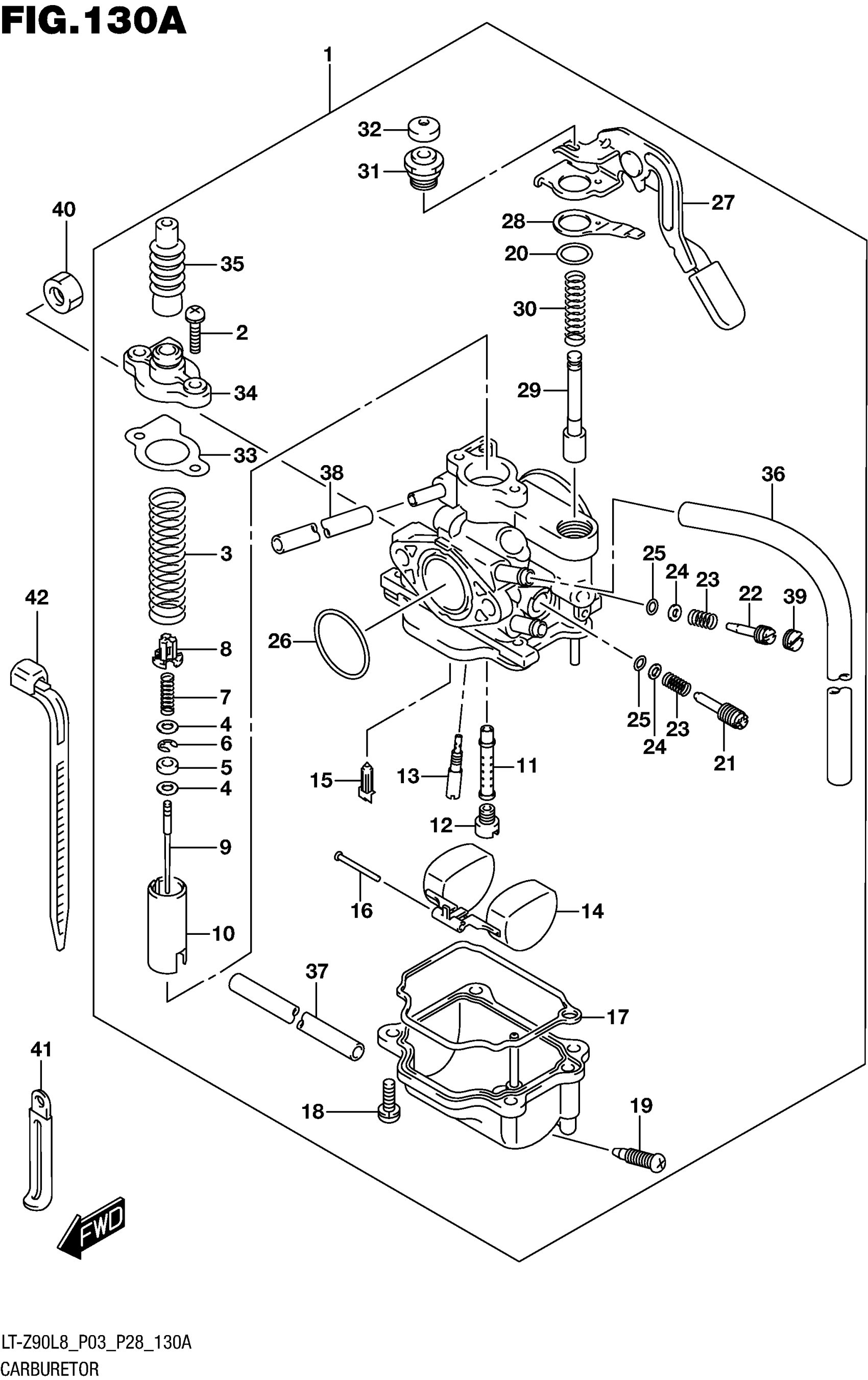

2018 Suzuki LT-Z90L8 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$457.50

In stock

2

.SCREW

02112-3412B

2

$2.50

In stock

3

.SPRING

13573-08H00

1
Out of stock

4

.WASHER

13382-23F00

2

$5.02

In stock

5

.RING

13387-23F00

1

$6.83

In stock

6

.E RING

13533-98410

1

$5.47

In stock

7

.SPRING

13481-23F00

1

$6.40

In stock

8

.HOLDER

13418-12F40

1

$8.13

In stock

9

.NEEDLE, JET

13383-08H00

1

$21.23

In stock

10

.PISTON VALVE

13511-08H00

1

$98.00

In stock

11

.JET, NEEDLE

13341-08H00

1

$46.98

In stock

12

.JET, MAIN (80)

09491-80011

1

$18.00

In stock

13

.JET, PILOT (17.5)

09492-17012

1

$26.53

In stock

14

.FLOAT ASSY

13250-06410

1

$41.47

In stock

15

.NEEDLE ASSY

13370-09D00

1

$36.93

In stock

16

.PIN

13254-29C50

1
Out of stock

17

.O RING

13258-30A00

1

$11.62

In stock

18

.SCREW

13601-04148

4
Out of stock

19

1

$4.97

In stock

20

.O RING (16) This part replaces 13278-47090.

13278-47091

1
Out of stock

21

.ADJUSTER

13267-47A00

1

$7.98

In stock

22

.ADJUSTER

13269-08H00

1

$14.73

In stock

23

.SPRING

13494-09410

2

$4.92

In stock

24

.WASHER

13291-29900

2
Out of stock

25

O-RING This part replaces 13295-29900.

13295-29901

2
Out of stock

26

.O RING

09280-24006

1

$1.83

In stock

27

.LEVER ASSY

13420-08H00

1

$62.35

In stock

28

.PLATE

13421-08H00

1
Out of stock

29

.PLUNGER

13411-08H00

1

$21.62

In stock

30

.SPRING

13417-43G00

1
Out of stock

31

.HOLDER

13418-08H00

1

$28.43

In stock

32

.CAP

13416-46710

1
Out of stock

33

.GASKET

13249-30A10

1

$4.18

In stock

34

.TOP CAP

13261-09G20

1
Out of stock

35

.CAP

13681-36GA0

1
Out of stock

36

.HOSE (5X9X600) | L:600->225

09352-50901-600

1
Out of stock

37

HOSE | L:600->250 This part replaces 09355-25705-600.

09355-25001-600

1
Out of stock

38

.HOSE

13683-08H00

1
Out of stock

39

.PLUG

13281-05A00

1

$4.58

In stock

40

NUT

09140-06023

2
Out of stock

41

CLAMP (L:45)

09404-06429

1
Out of stock

42

CLAMP (L:125)

09407-14403

1
Out of stock
