2017 Suzuki LT-Z90L7 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2017 Suzuki LT-Z90L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

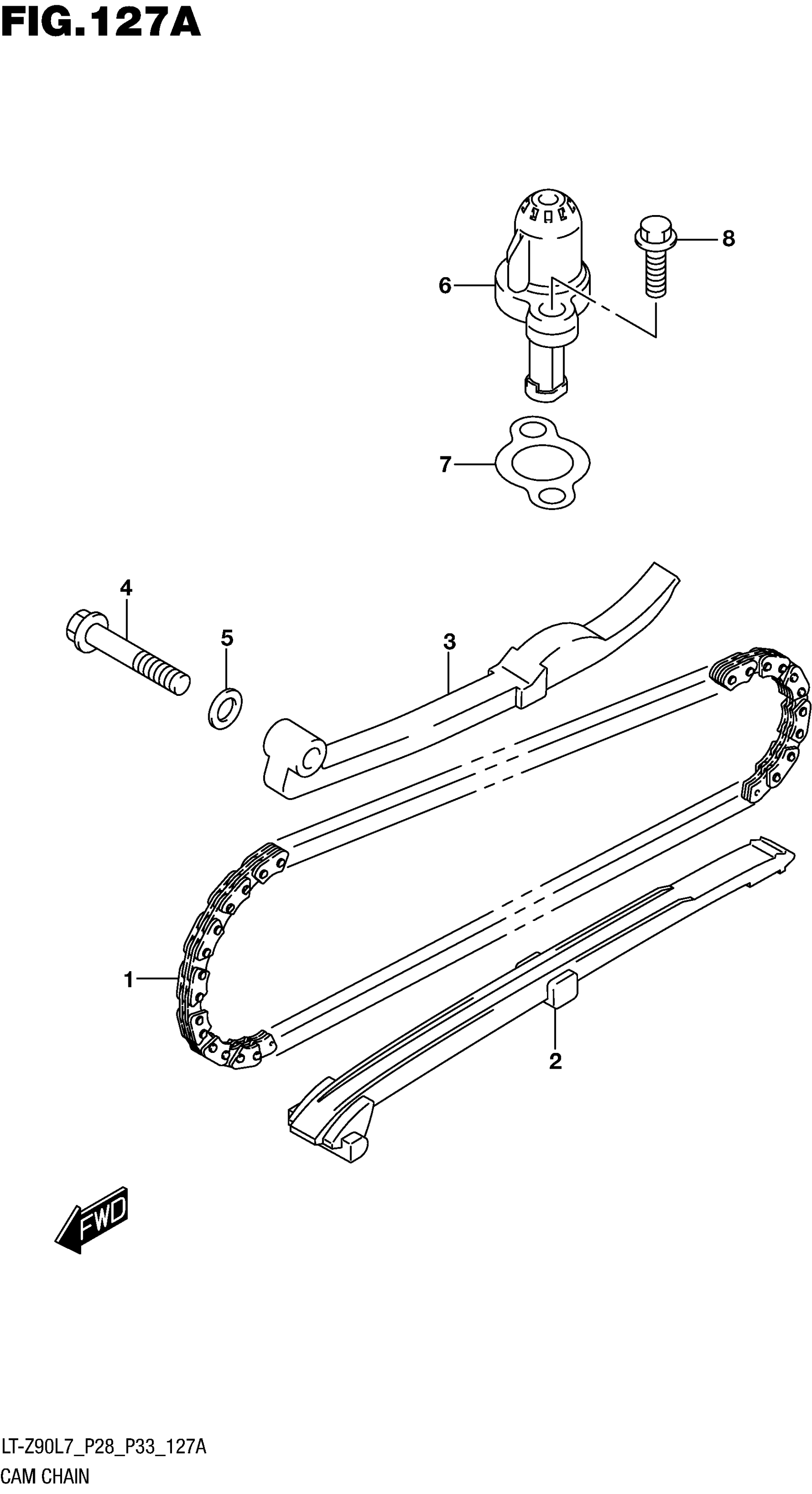

2017 Suzuki LT-Z90L7 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-20G20

1
Out of stock

2

GUIDE,CAM CHAIN

12771-33G00

1
Out of stock

3

TENSIONER,CAM CHAIN

12811-09G20

1
Out of stock

4

BOLT (6X32)

09103-06247

1
Out of stock

5

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

6

ADJUSTER ASSY,TENSIONER

12830-09G00

1
Out of stock

7

.GASKET,TENSIONER ADJUSTER

12837-32G00

1
Out of stock

8

..BOLT

01547-0620B

2
Out of stock
Camshaft/valve →
