2017 Suzuki LT-Z90L7 Air Cleaner Diagram

← All diagrams

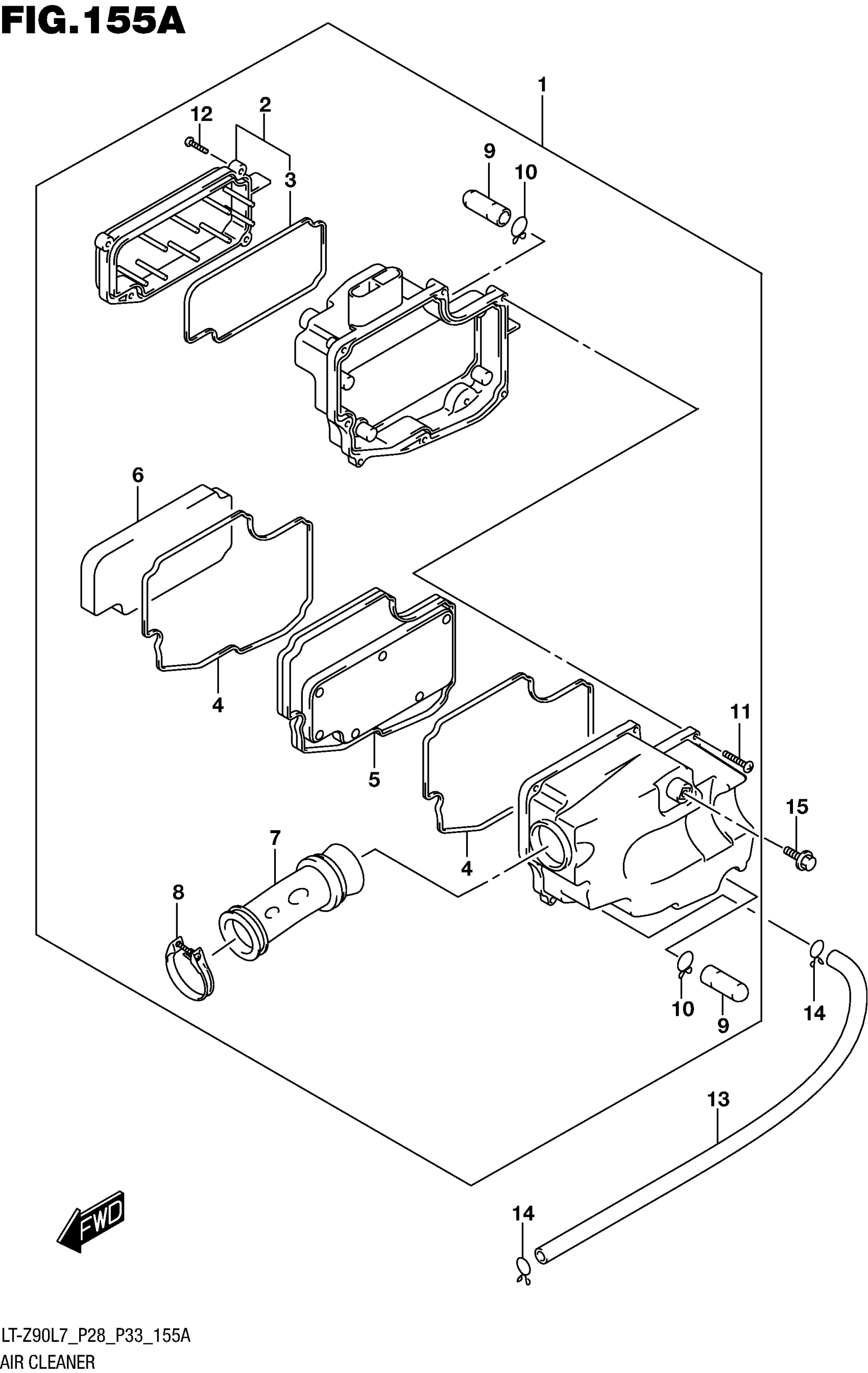

Find the part on the Air Cleaner diagram for your 2017 Suzuki LT-Z90L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki LT-Z90L7 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-08H00

1
Out of stock

2

.CAP

13740-08H00

1
Out of stock

3

..GASKET

13746-08H00

1
Out of stock

4

.GASKET

13756-08H00

2
Out of stock

5

.CASE, SEPARETER

13723-08H00

1
Out of stock

6

.FILTER

13781-08H00

1
Out of stock

7

.TUBE, OUTLET

13881-08H00

1
Out of stock

8

.CLAMP

09402-42208

1
Out of stock

9

.PLUG, DRAIN

13871-08H00

2
Out of stock

10

.CLIP

09401-14301

2
Out of stock

11

.SCREW

03541-0420A

7
Out of stock

12

SCREW

03541-0520A

4
Out of stock

13

HOSE,BREATHER

13853-08H00

1
Out of stock

14

CLIP

09401-14301

2
Out of stock

15

BOLT

01550-0612B

2
Out of stock
