Partiron

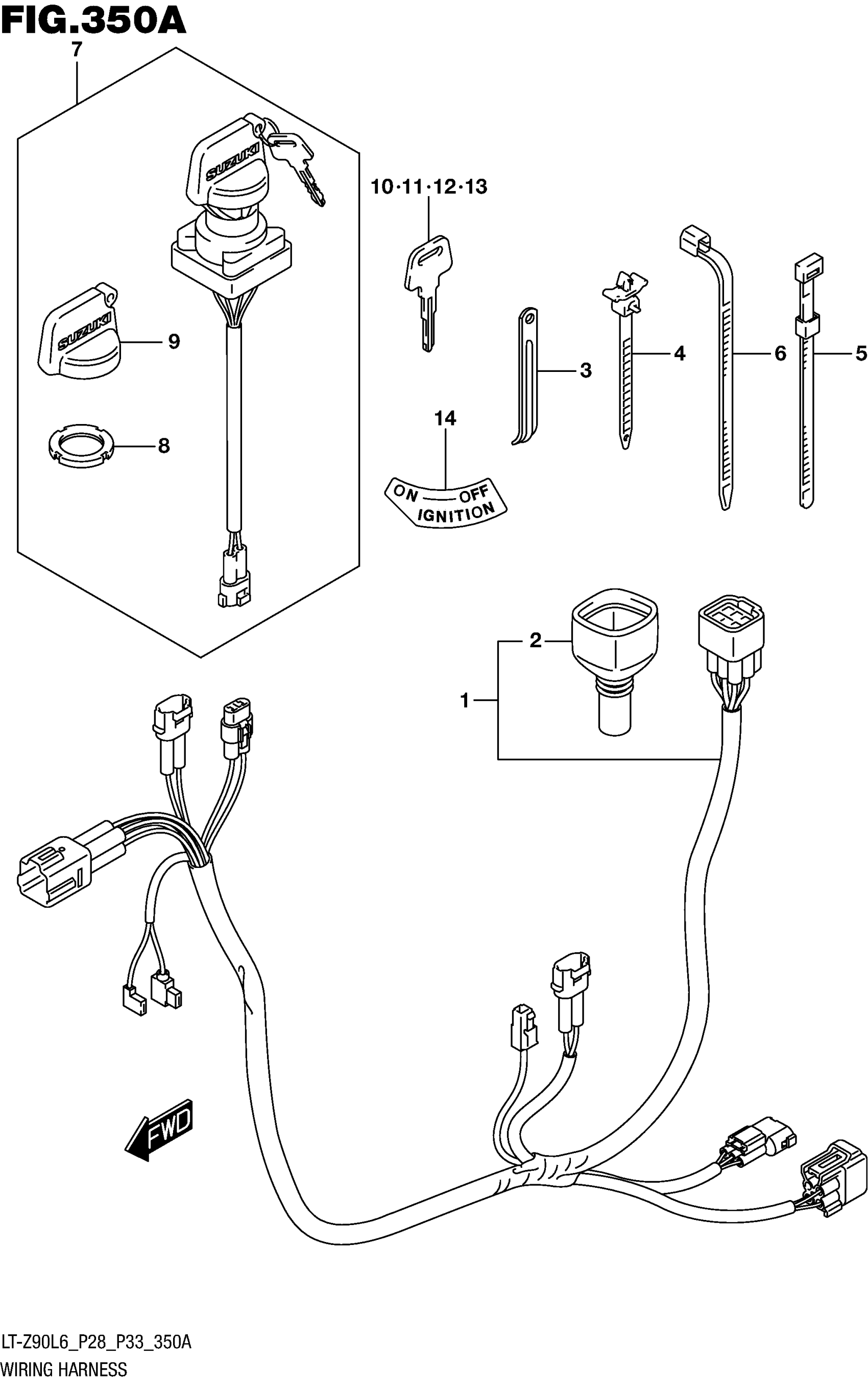

Suzuki LT-Z90L6 (2016) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING

36610-08H00

$321.47

2

.COVER SPEEDOMETER COUPLER

36618-33E00

$9.90

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.79

4

CLAMP (L:90)

09407-11402

$1.88

5

CLAMP (L:120)

09407-12402

$2.82

6

CLAMP (L:125)

09407-14403

$2.31

7

SWITCH ASSY,IGNITION

37110-08H00

$151.83

8

.NUT,IGNITION SWITCH

37112-24500

$12.60

9

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.77

10

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.71

11

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.71

12

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.71

13

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.71

14

PLATE, CONTROL

37139-40B03

$3.92
