2016 Suzuki LT-Z90L6 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2016 Suzuki LT-Z90L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

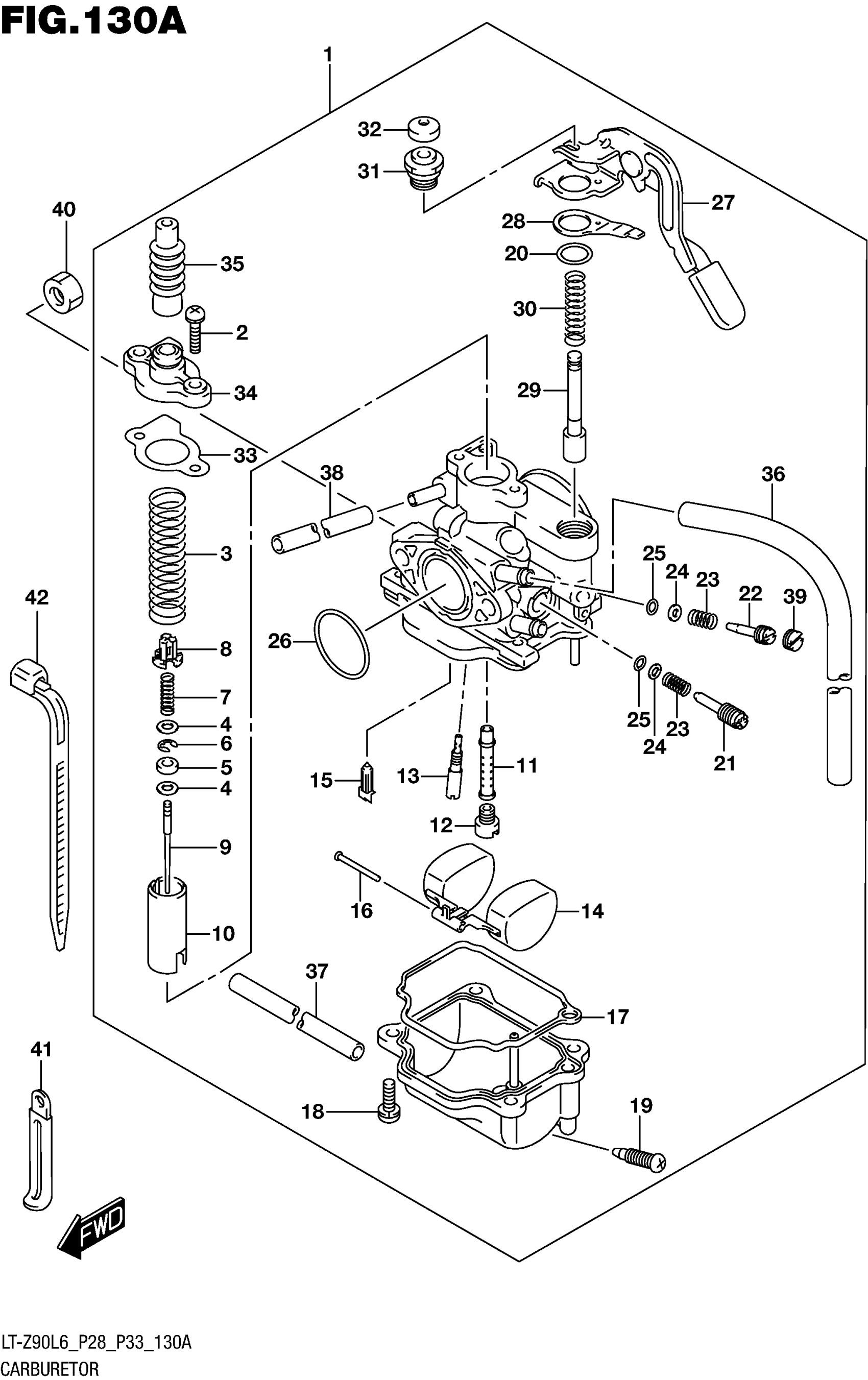

2016 Suzuki LT-Z90L6 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$457.50

In stock

2

.SCREW

02112-3412B

2
Out of stock

3

.SPRING

13573-08H00

1
Out of stock

4

.WASHER

13382-23F00

2
Out of stock

5

.RING

13387-23F00

1
Out of stock

6

.E RING

13533-98410

1
Out of stock

7

.SPRING

13481-23F00

1
Out of stock

8

.HOLDER

13418-12F40

1
Out of stock

9

.NEEDLE, JET

13383-08H00

1
Out of stock

10

.PISTON VALVE

13511-08H00

1
Out of stock

11

.JET, NEEDLE

13341-08H00

1
Out of stock

12

.JET, MAIN (80)

09491-80011

1
Out of stock

13

.JET, PILOT (17.5)

09492-17012

1
Out of stock

14

.FLOAT ASSY

13250-06410

1
Out of stock

15

.NEEDLE ASSY

13370-09D00

1
Out of stock

16

.PIN

13254-29C50

1
Out of stock

17

.O RING

13258-30A00

1
Out of stock

18

.SCREW

13601-04148

4
Out of stock

19

1

$4.97

In stock

20

1

$2.01

In stock

21

.ADJUSTER

13267-47A00

1
Out of stock

22

.ADJUSTER

13269-08H00

1
Out of stock

23

.SPRING

13494-09410

2
Out of stock

24

.WASHER

13291-29900

2
Out of stock

25

O-RING This part replaces 13295-29900.

13295-29901

2
Out of stock

26

.O RING

09280-24006

1
Out of stock

27

.LEVER ASSY

13420-08H00

1
Out of stock

28

.PLATE

13421-08H00

1
Out of stock

29

.PLUNGER

13411-08H00

1
Out of stock

30

.SPRING

13417-43G00

1
Out of stock

31

.HOLDER

13418-08H00

1
Out of stock

32

.CAP

13416-46710

1
Out of stock

33

.GASKET

13249-30A10

1
Out of stock

34

.TOP CAP

13261-09G20

1
Out of stock

35

.CAP

13681-36GA0

1
Out of stock

36

.HOSE (5X9X600) | L:600->225

09352-50901-600

1
Out of stock

37

HOSE | L:600->250 This part replaces 09355-25705-600.

09355-25001-600

1
Out of stock

38

.HOSE

13683-08H00

1
Out of stock

39

.PLUG

13281-05A00

1
Out of stock

40

NUT

09140-06023

2
Out of stock

41

CLAMP (L:45)

09404-06429

1
Out of stock

42

CLAMP (L:125)

09407-14403

1
Out of stock
