2014 Suzuki LT-Z90L4 Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2014 Suzuki LT-Z90L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

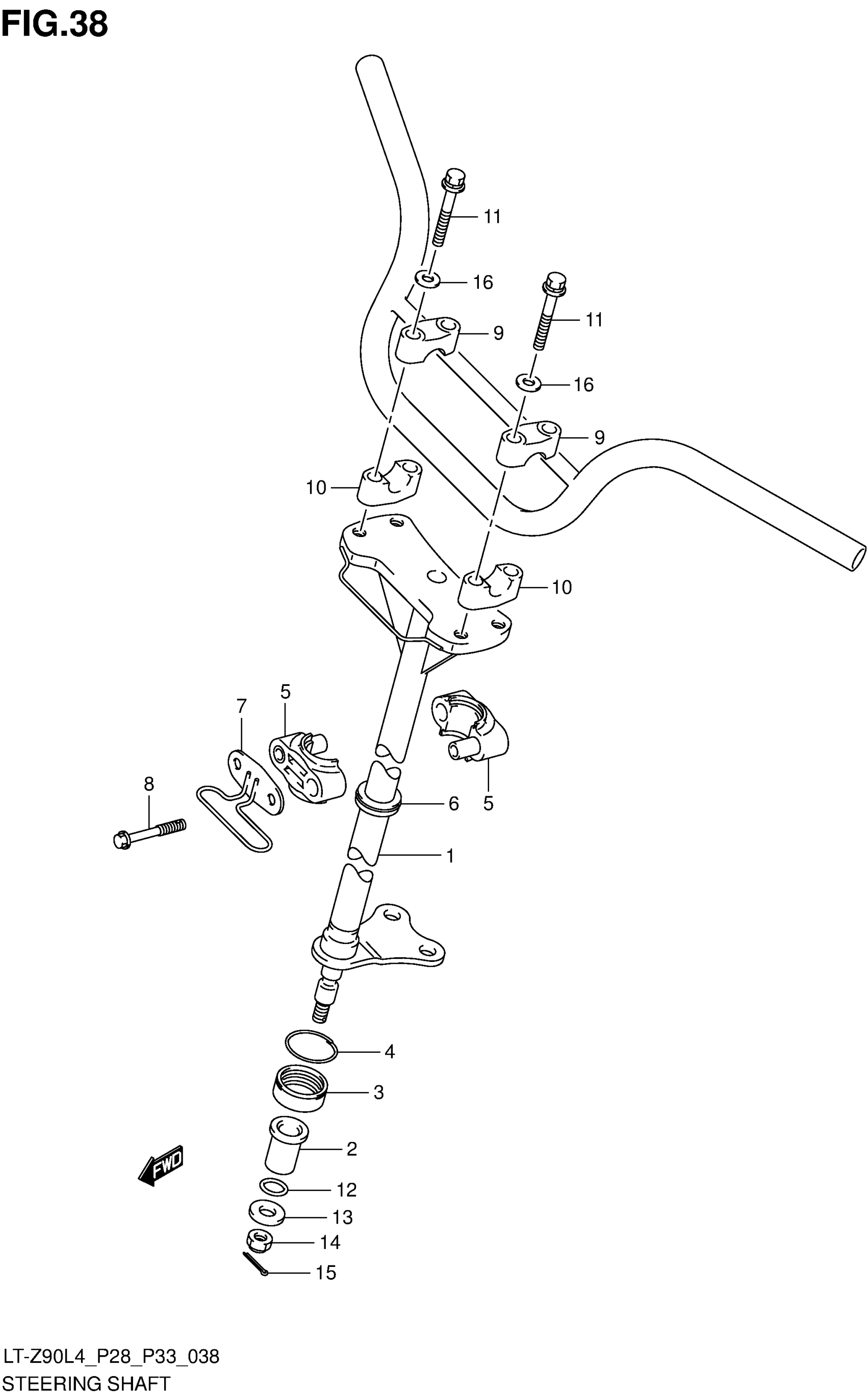

2014 Suzuki LT-Z90L4 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,STEERING

51650-08H00

1
Out of stock

2

BUSH,STEERING SHAFT LOWER

51661-40BA0

1
Out of stock

3

SEAL,STEERING SHAFT DUST

51662-43FK0

1
Out of stock

4

CLIP, DUST SEAL

09380-31002

1
Out of stock

5

HOLDER,STEERING SHAFT

51670-18902

2
Out of stock

6

DUST SEAL, STEERING

51678-18900

2
Out of stock

7

REINFORCEMENT, HOLDER

51680-40B00

1
Out of stock

8

.BOLT

01550-0855A

2
Out of stock

9

HOLDER, HANDLEBAR

56211-27200-291

2
Out of stock

10

HOLDER, HANDLEBAR

56211-21G00-291

2
Out of stock

11

BOLT

01550-0850A

4
Out of stock

12

O RING (ID:13.8,D:2.50)

09280-14011

1
Out of stock

13

WASHER (10.6X24X3.20)

09160-10079

1
Out of stock

14

NUT

08319-3110A

1
Out of stock

15

COTTER PIN

04111-2020A

1
Out of stock

16

WASHER

09164-08015

4
Out of stock
