2014 Suzuki LT-Z90L4 Front Brake Diagram

← All diagrams

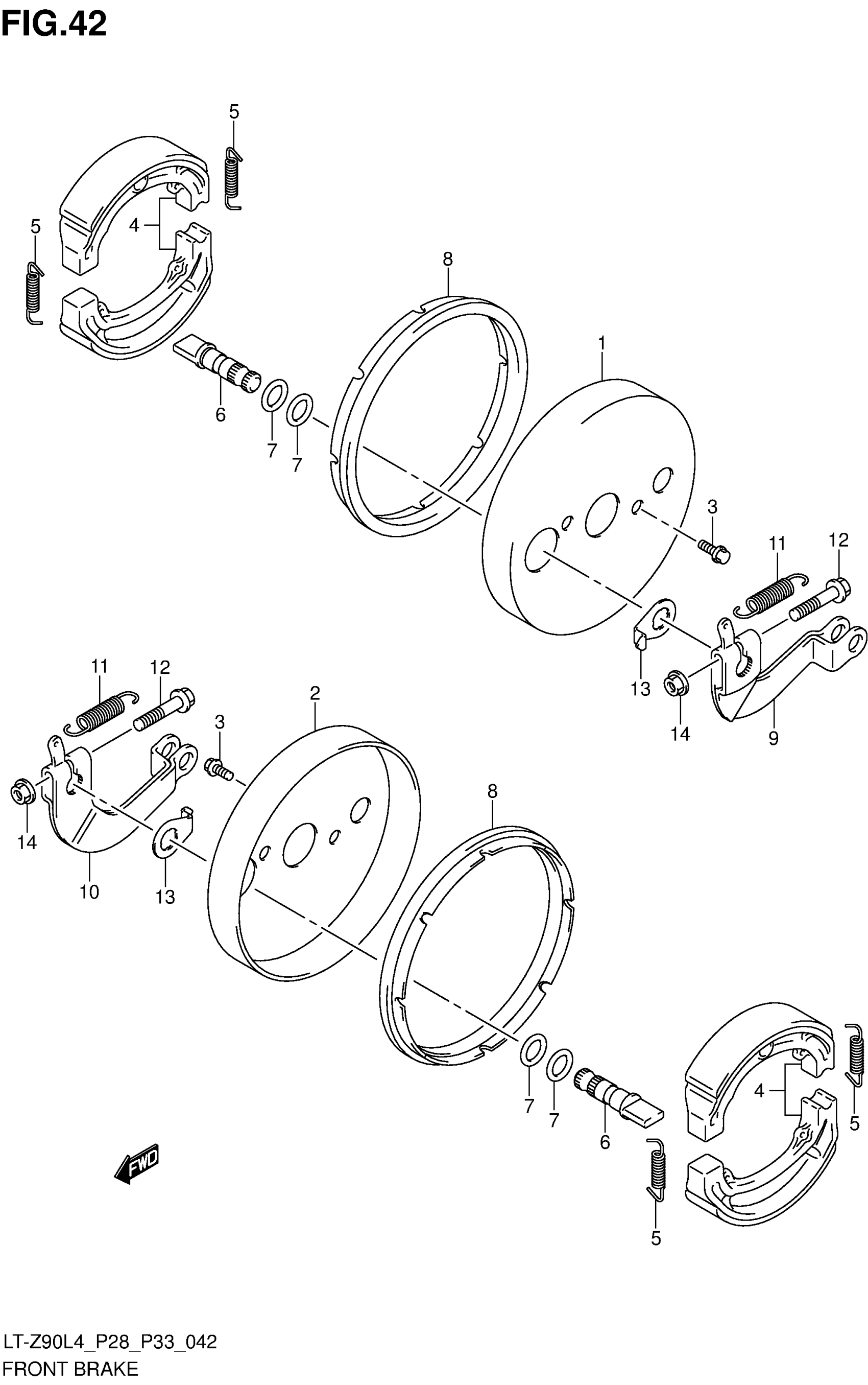

Find the part on the Front Brake diagram for your 2014 Suzuki LT-Z90L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-Z90L4 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE,FRONT BRAKE,R

54511-08H00

1
Out of stock

2

PLATE,FRONT BRAKE,L

54811-08H00

1
Out of stock

3

BOLT, BRAKE ANCHOR PANEL

01547-0610B

4
Out of stock

4

SHOE SET,FRONT BRAKE

54400-08810

2
Out of stock

5

SPRING,BRAKE SH This part replaces 55421-45F00.

55421-45F10

4
Out of stock

6

CAM,FRONT BRAKE

54441-08H00

2
Out of stock

7

O RING, (ID:11.8,D:2.4)

09280-12012

4
Out of stock

8

SEAL,FRONT BRAKE DUST

54124-08H00

2
Out of stock

9

LEVER,FRONT BRAKE CAM,R

54450-08H00

1
Out of stock

10

LEVER,FRONT BRAKE CAM,L

54460-08H00

1
Out of stock

11

SPRING

09443-10044

2
Out of stock

12

BOLT, CAM LEVER (5X27)

09103-06135

2
Out of stock

13

PLATE,FR BK LINING INDICATOR

54492-08H00

2
Out of stock

14

NUT, CAM LEVER

08316-1006B

2
Out of stock
