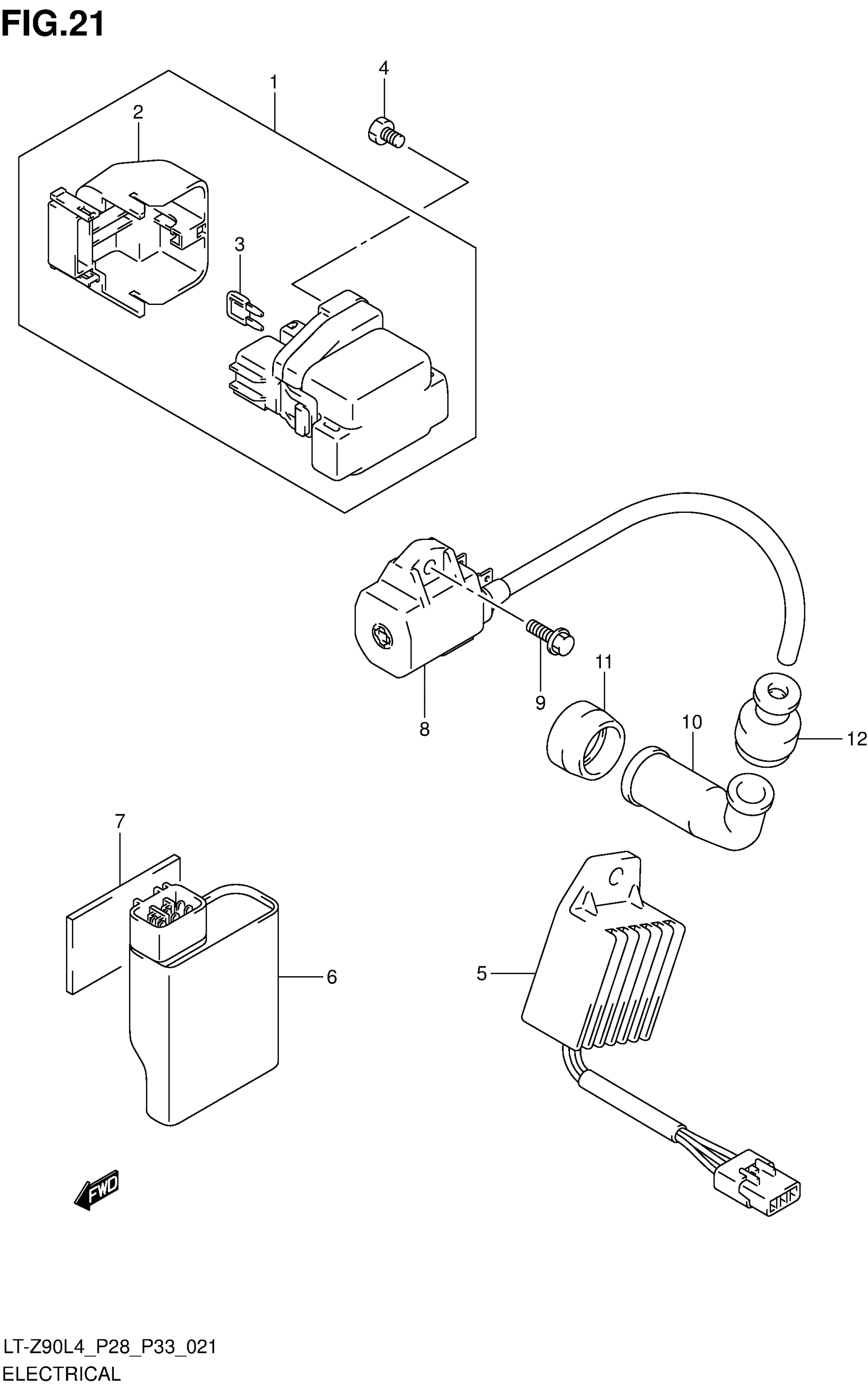

Suzuki LT-Z90L4 (2014) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-08H00

$133.58

2

COVER

31861-38G00

$5.52

3

FUSE (10A)

09481-10501

$2.14

4

BOLT (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY

32800-08H01

$122.07

6

CDI UNIT

32900-08H00

$436.62

7

PROTECTOR, CDI (30X50X3.0)

33652-36000

$2.87

8

COIL ASSY,IGNITION

33410-36G00

$105.88

9

BOLT

02162-0620B

$2.27

10

CAP ASSY, SPARK PLUG

33510-20E00

$39.05

11

SEAL, SPARK PLUG

33541-47D00

$7.50

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15
