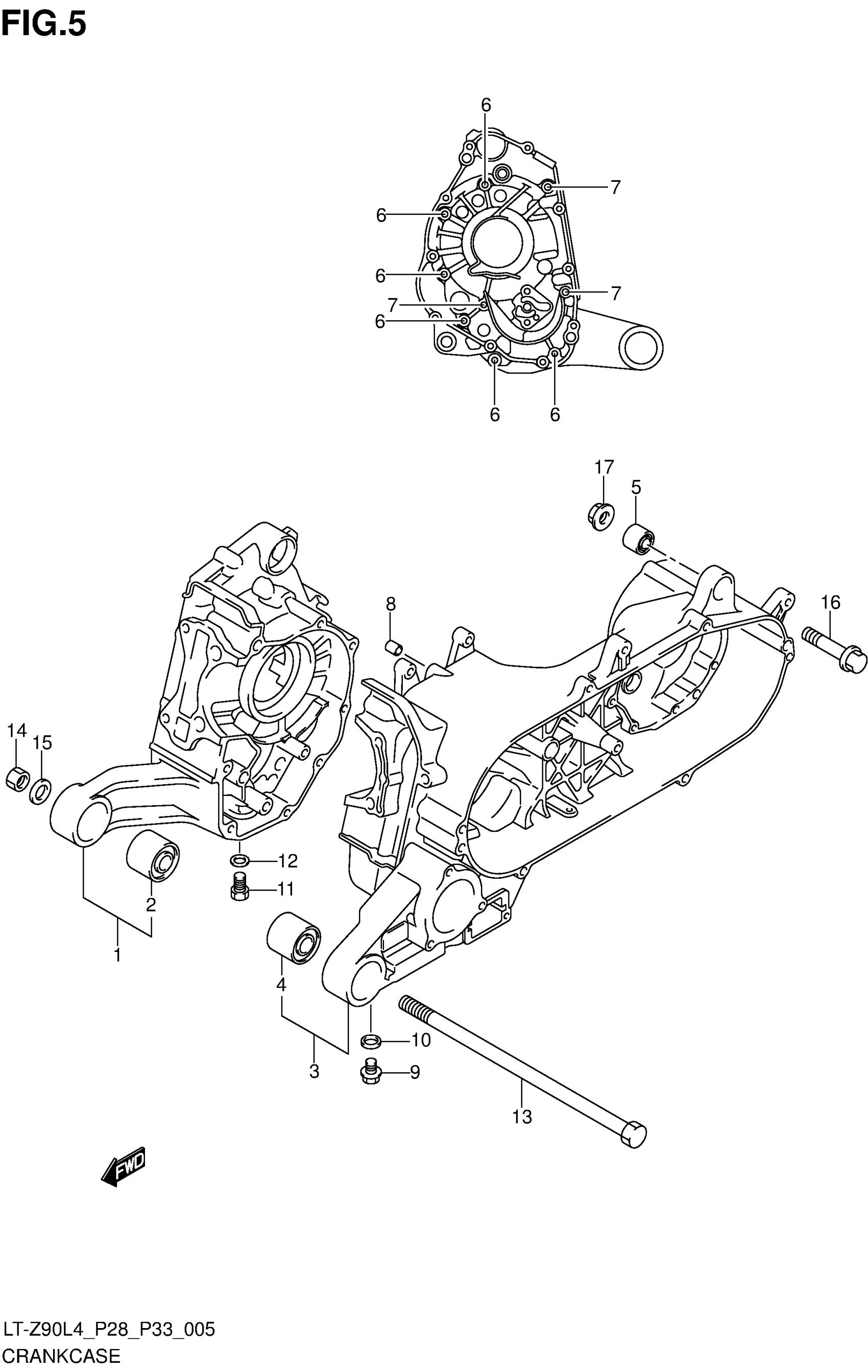

Suzuki LT-Z90L4 (2014) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET, RH

11310-33821

$455.28

2

BUSH, ENG MTG

11315-33G40

Unavailable

3

CRANKCASE SET, LH

11320-08810

Unavailable

4

BUSH, ENG MTG

11315-33G40

Unavailable

5

BUSH

09319-10032

$10.08

6

BOLT

01547-0655B

$2.74

7

BOLT

01547-0675B

$4.28

8

PIN (6.2X8X11)

09206-08001

$1.77

9

BOLT

01550-0812B

$2.73

10

GASKET (8.2X14X1)

09168-08016

$1.64

11

BOLT,OIL DRAIN

11316-33G00

Unavailable

12

GASKET (10X14X3.6)

09168-10002

$1.96

13

BOLT,12X235 (12X235)

09100-12089

$14.90

14

NUT

08319-3112B

$5.35

15

WASHER

09160-12082

$4.20

16

BOLT (10X45)

09103-10218

$6.15

17

NUT

09159-10115

$3.21
