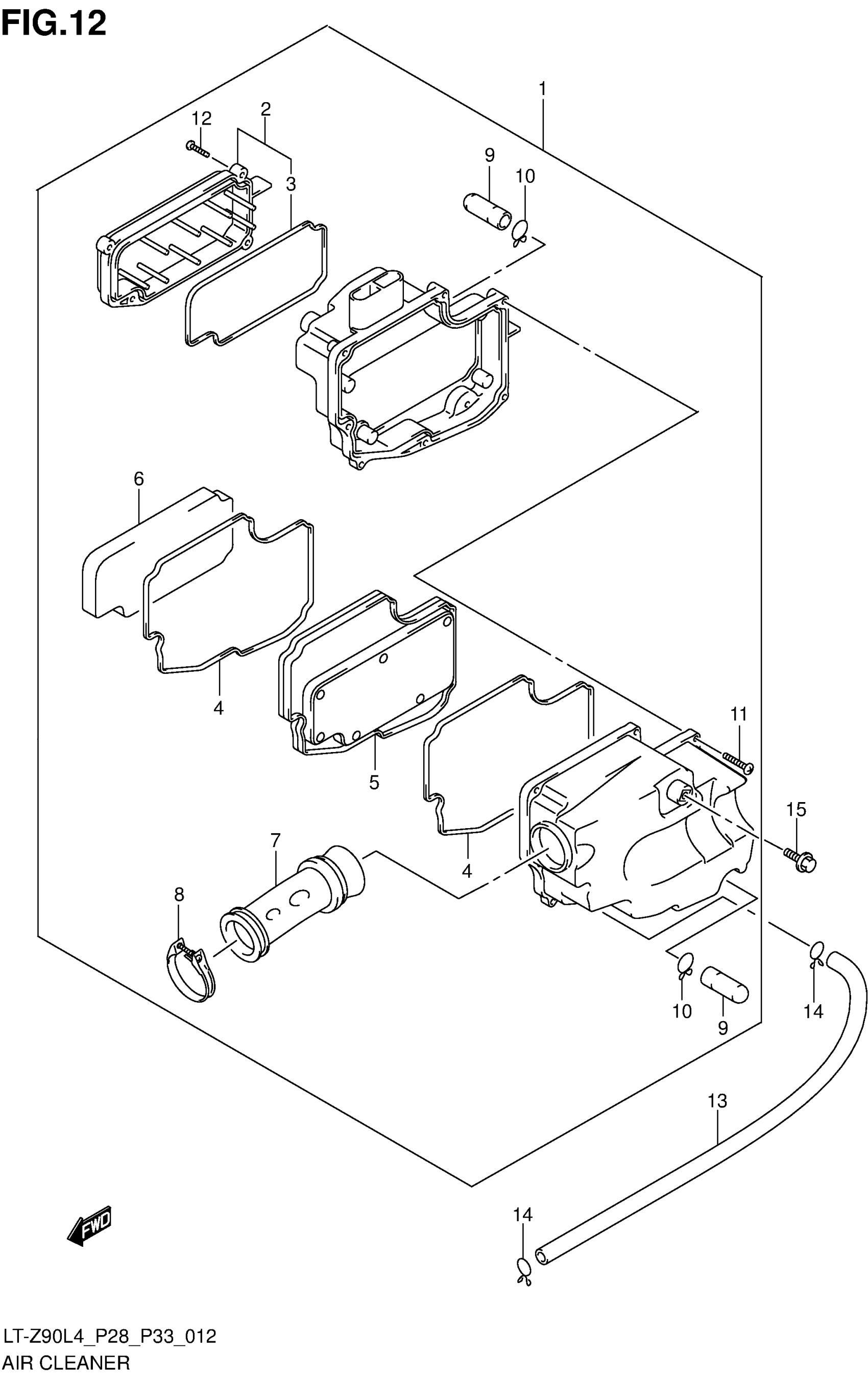

Suzuki LT-Z90L4 (2014) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-08H00

$327.60

2

CAP

13740-08H00

$45.70

3

GASKET

13746-08H00

$16.10

4

GASKET

13756-08H00

$16.67

5

CASE, SEPARETER

13723-08H00

Unavailable

6

FILTER

13781-08H00

$14.34

7

TUBE, OUTLET

13881-08H00

$60.18

8

CLAMP

09402-42208

$7.48

9

PLUG, DRAIN

13871-08H00

$9.08

10

CLIP

09401-14301

$2.17

11

SCREW

03541-0420A

$2.35

12

SCREW

03541-0520A

$1.81

13

HOSE,BREATHER

13853-08H00

Unavailable

14

CLIP

09401-14301

$2.17

15

BOLT

01550-0612B

$2.38
