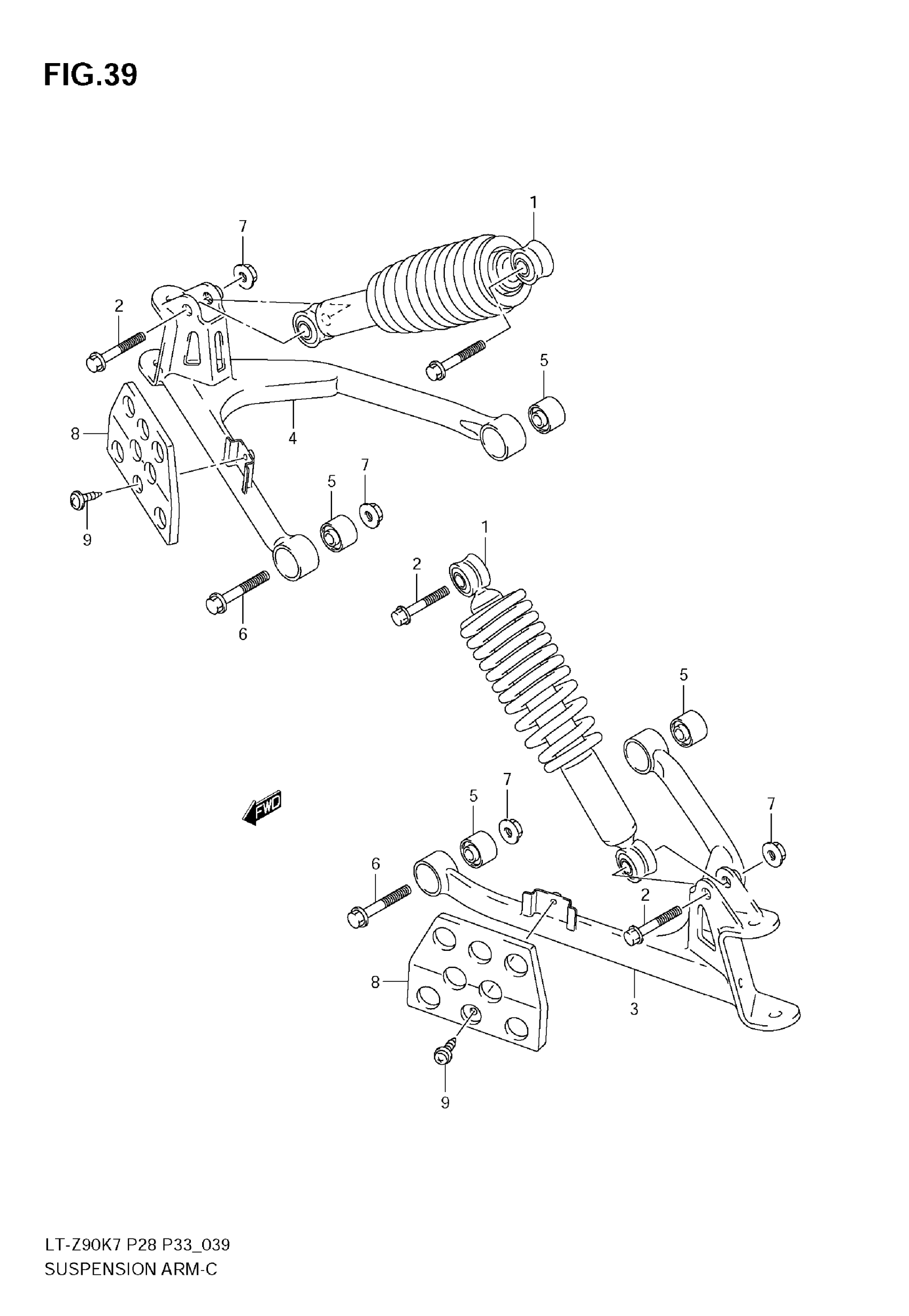

Find the part on the Suspension Arm diagram for your 2009 Suzuki LT-Z90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z90 Suspension Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$352.67

In stock

1

ABSORBER ASSY, FRONT (WHITE) | FOR 30H

52100-08H00-28W

2
Out of stock

1

ABSORBER ASSY, FRONT (SILVER) | FOR 019

52100-08H00-YVN

2
Out of stock

2

4

$6.75

In stock

3

ARM, SUSPENSION LH (BLACK)

52410-08H00-019

1

$284.75

In stock

4

ARM, SUSPENSION RH (BLACK)

52420-08H00-019

1

$284.75

In stock

5

BUSH, ARM (10X28.1X28)

09319-10049

4
Out of stock

6

BOLT, SUSPENSION ARM

09103-10218

4

$6.15

In stock

7

NUT, SUSPENSION ARM

08319-3110A

2
Out of stock

8

2

$36.30

In stock

9

BOLT, PROTECTOR

09111-06065

2
Out of stock
