2009 Suzuki LT-Z90 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2009 Suzuki LT-Z90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

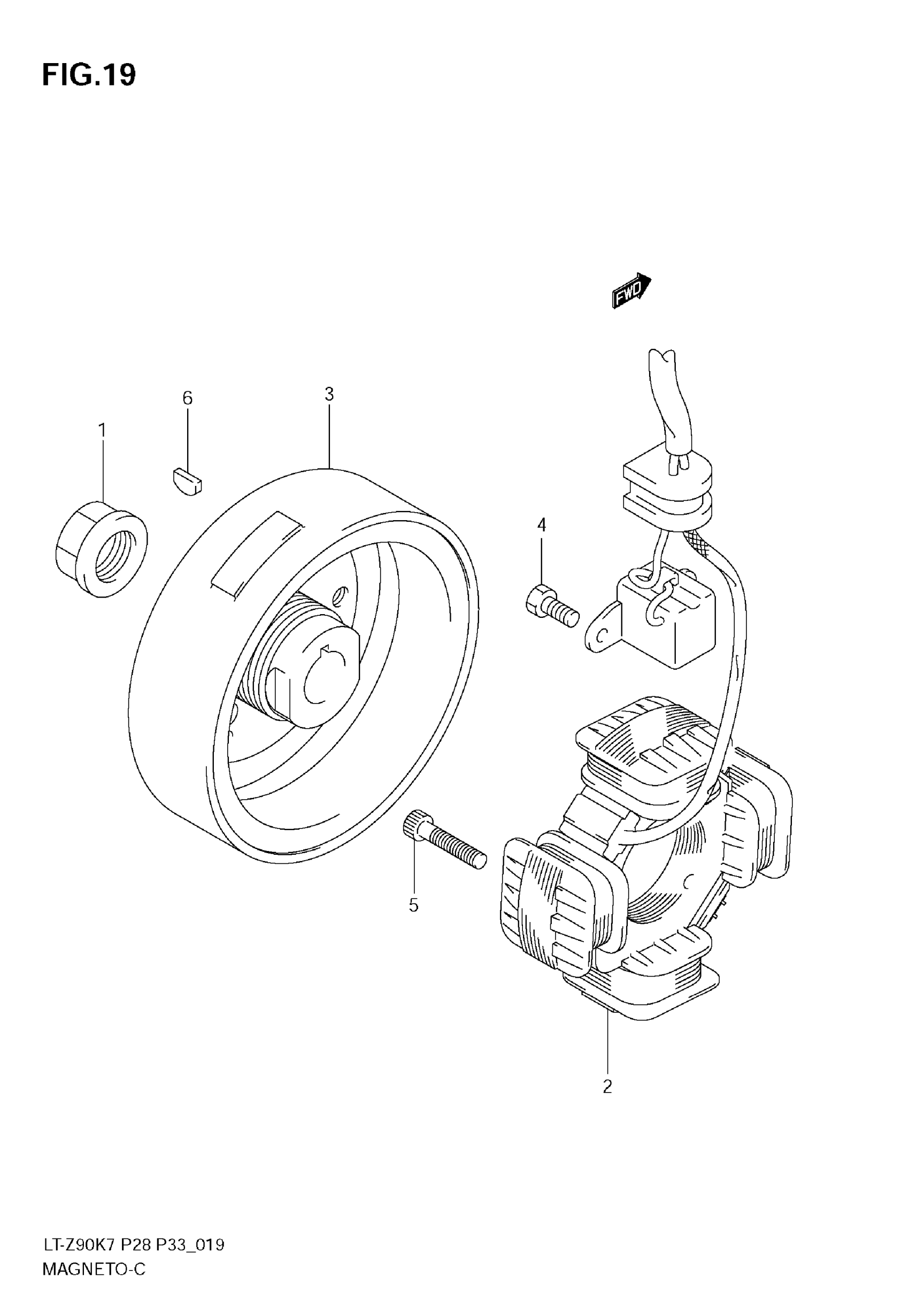

2009 Suzuki LT-Z90 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT, MAGNETO ROTOR

09159-14015

1
Out of stock

2

STATOR ASSY

32101-08H00

1
Out of stock

3

ROTOR ASSY

32102-08H00

1
Out of stock

4

BOLT, PULSER (5X10)

09100-05019

2
Out of stock

5

BOLT, STATOR

07130-0625B

2
Out of stock

6

KEY

08341-31039

1
Out of stock
