Description

Price

1

PLATE,FRONT BRAKE,R

54511-08H00

$23.05

2

PLATE,FRONT BRAKE,L

54811-08H00

$26.97

3

BOLT, BRAKE ANCHOR PANEL

01547-0610B

$2.47

4

SHOE SET, BRAKE

54401-43840

$29.12

5

.SPRING (L:37.8)

09443-07044

$2.80

6

CAM,FRONT BRAKE

54441-08H00

$19.17

7

O RING, (ID:11.8,D:2.4)

09280-12012

$4.19

8

SEAL,FRONT BRAKE DUST

54124-08H00

$38.45

9

LEVER,FRONT BRAKE CAM,R

54450-08H00

$41.02

10

LEVER,FRONT BRAKE CAM,L

54460-08H00

$36.89

11

SPRING

09443-10044

$5.63

12

BOLT, CAM LEVER (5X27)

09103-06135

$2.77

13

PLATE,FR BK LINING INDICATOR

54492-08H00

$4.18

14

NUT, CAM LEVER

08316-1006B

$2.50

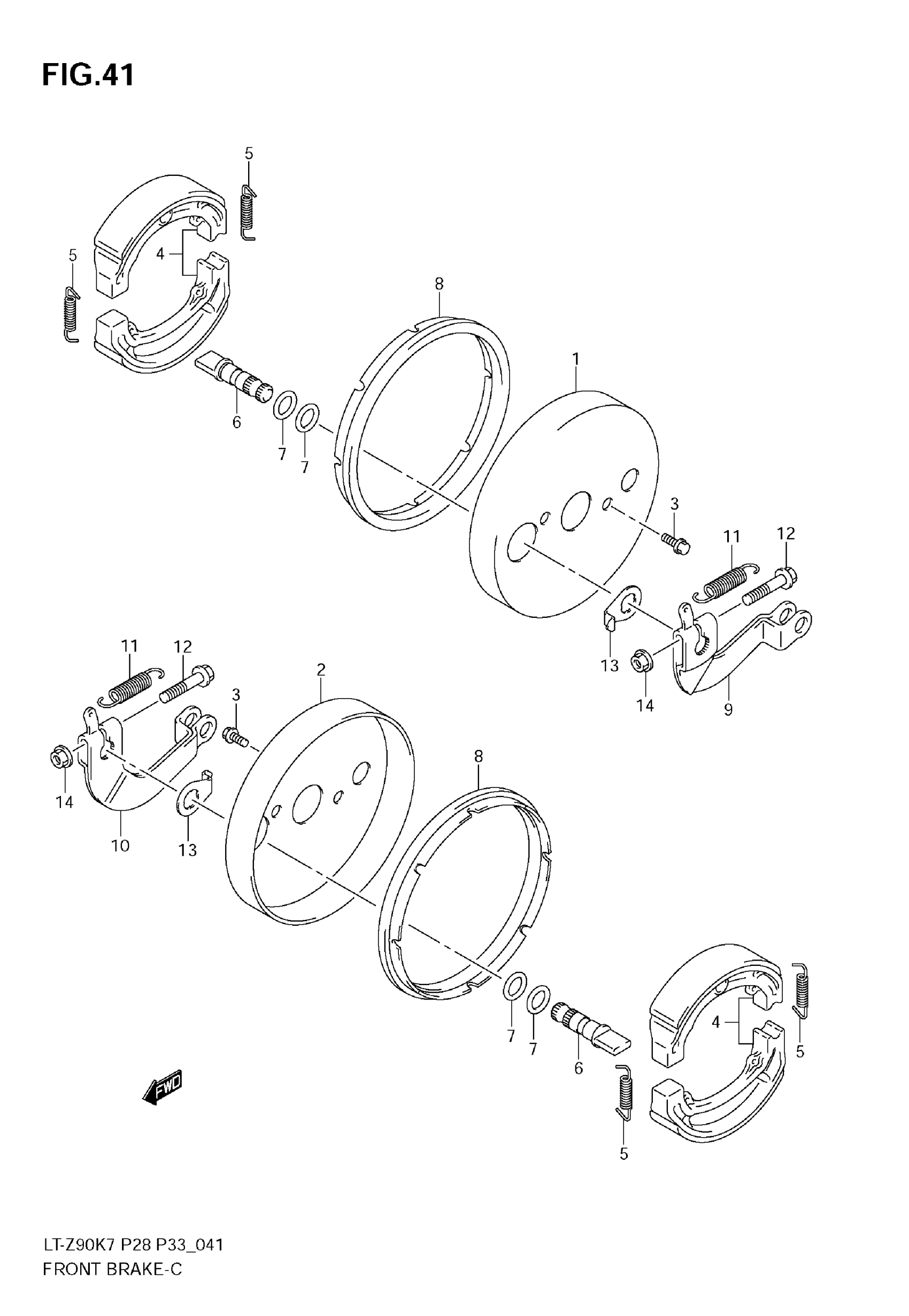

Suzuki LT-Z90 (2009) FRONT BRAKE Diagram
