2026 Suzuki LT-Z50M6 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2026 Suzuki LT-Z50M6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

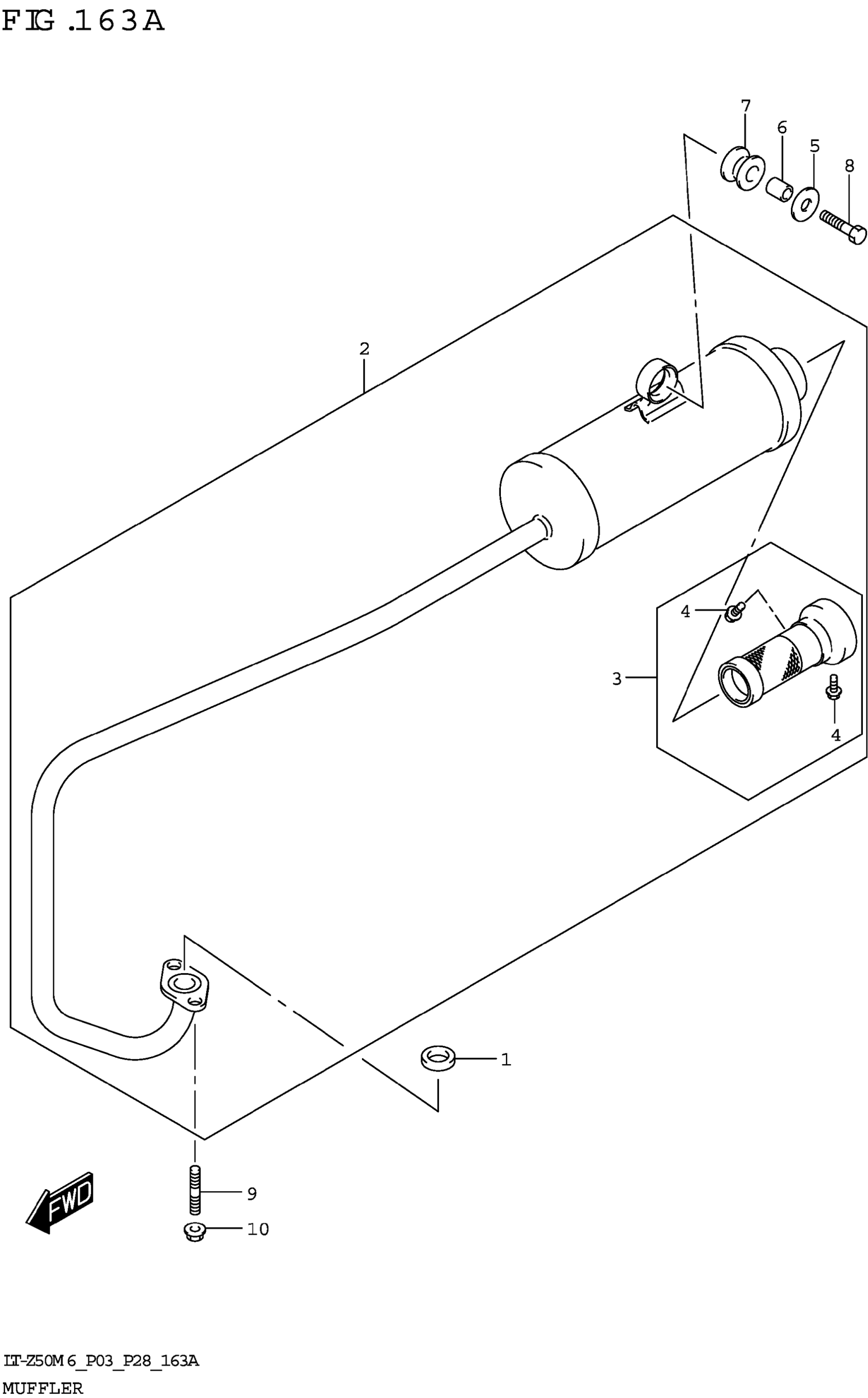

2026 Suzuki LT-Z50M6 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXH PIPE

14181-22G01

1
Out of stock

2

MUFFLER ASSY

14301-43G00

1
Out of stock

3

.ARRESTER SET

14850-43811

1
Out of stock

4

BOLT

01547-0610B

2
Out of stock

5

WASHER (8.5X26X1.6)

09160-08151

1
Out of stock

6

SPACER,8.5X12X17.5 (8.5X12X17 | 5)

09180-08194

1
Out of stock

7

CUSHION

09320-12043

1
Out of stock

8

BOLT

01500-0835B

1
Out of stock

9

BOLT,STUD

01421-0616B

2
Out of stock

10

NUT

08316-1006B

2
Out of stock
