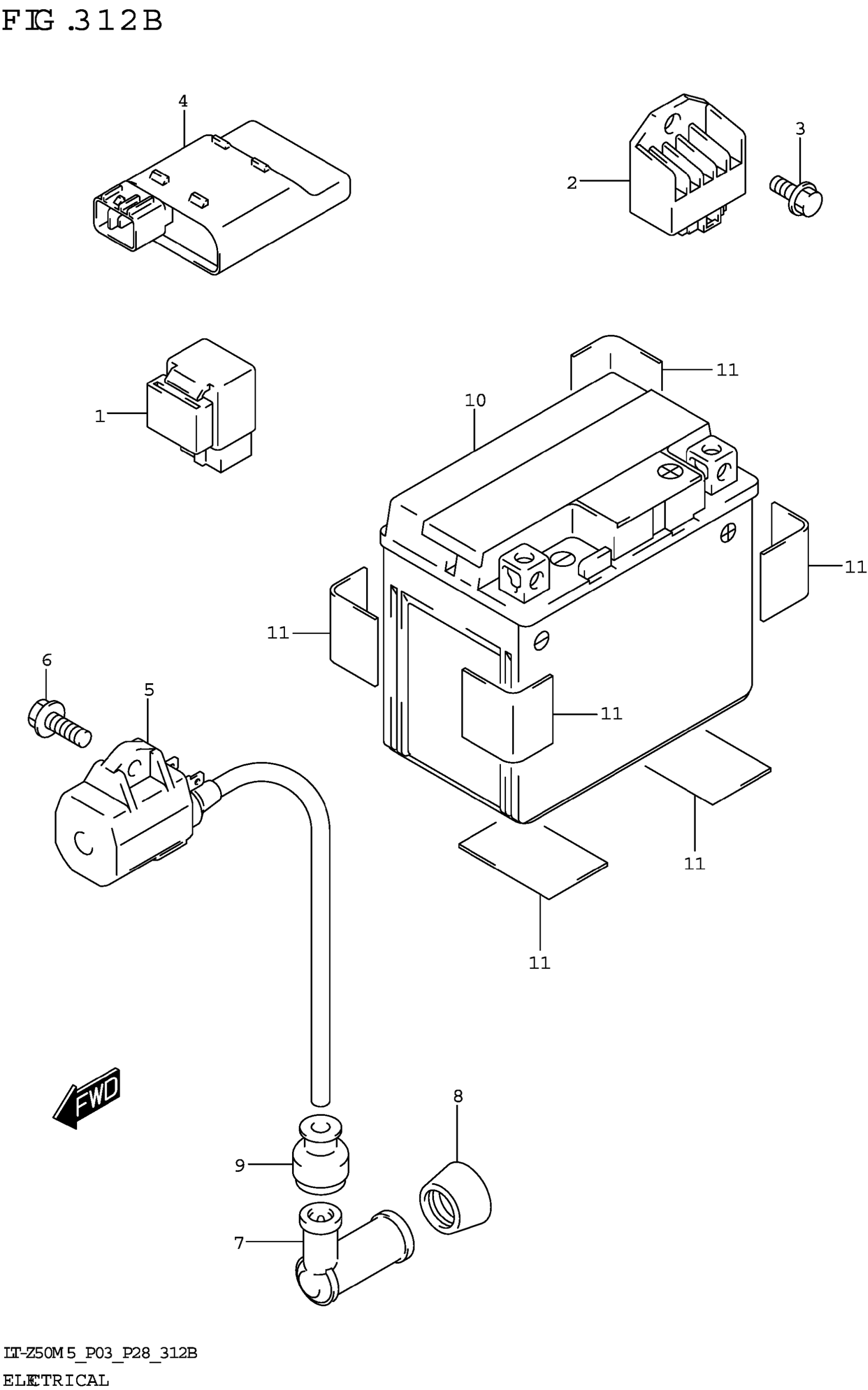

Find the part on the Electrical diagram for your 2025 Suzuki LT-Z50M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki LT-Z50M5 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-40B02

1
Out of stock

2

RECTIFIER ASSY

32800-41H01

1
Out of stock

3

BOLT

01550-0612B

1
Out of stock

4

CDI UNIT

32900-43G10

1
Out of stock

5

COIL ASSY,IGNITION

33410-36G00

1
Out of stock

6

SCREW

02162-0620B

1
Out of stock

7

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

1
Out of stock

8

SEAL, SPARK PLUG

33541-38210

1
Out of stock

9

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock

10

BATTERY ASSY,YTX5L-BS,12V4.2A | (YTX5L-BS,12V4.2AH)

33610-40B20

1
Out of stock

11

CUSHION (30X40X2.0)

33652-36100

6
Out of stock
