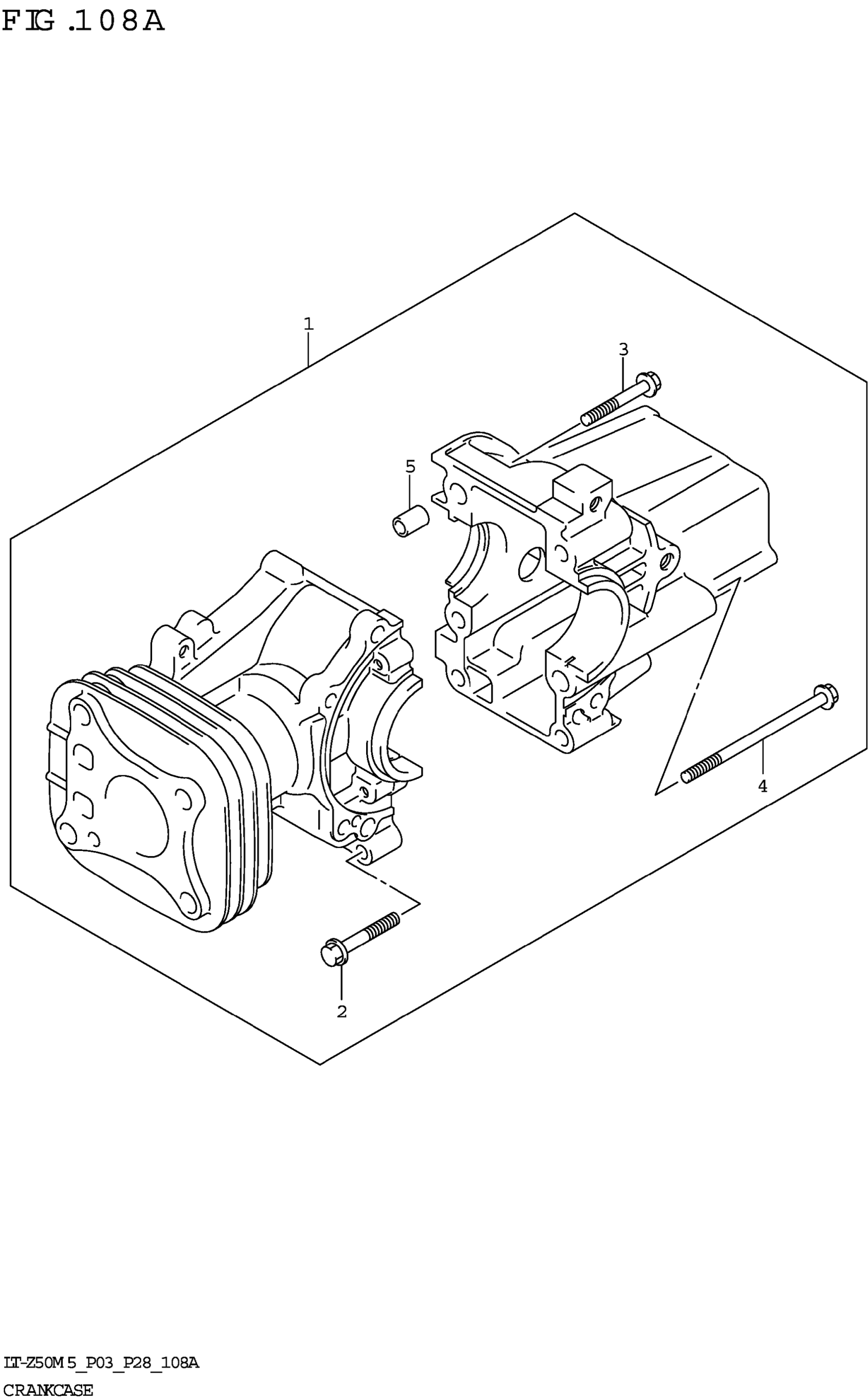

Find the part on the Crankcase diagram for your 2025 Suzuki LT-Z50M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki LT-Z50M5 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

11300-22G14

1
Out of stock

2

.BOLT,6X32 (6X32)

09103-06171

2
Out of stock

3

.BOLT

01547-0640B

2
Out of stock

4

.BOLT

01547-0695B

2
Out of stock

5

PIN (8.5X18X2.3)

04211-09149

2
Out of stock
