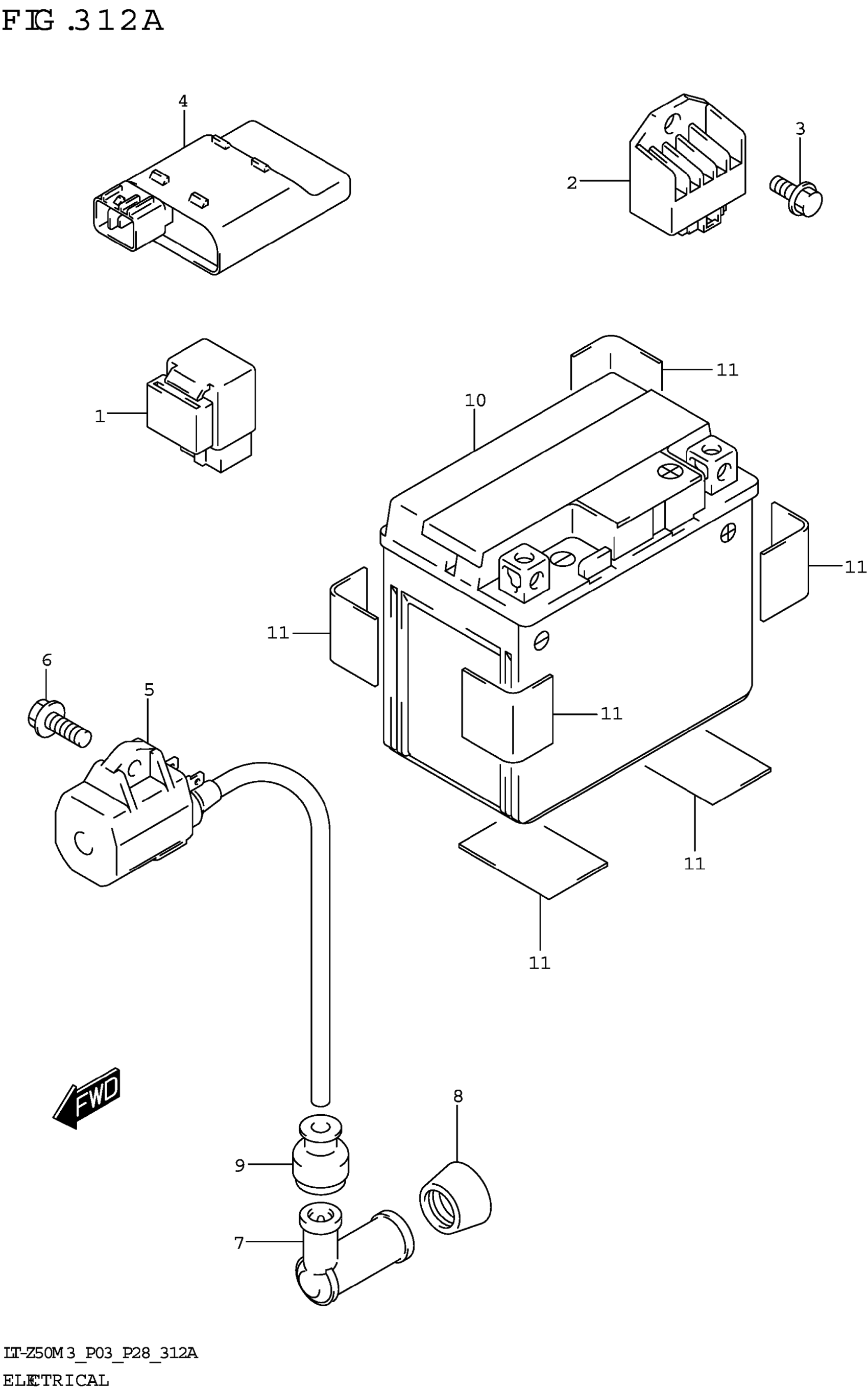

Suzuki LT-Z50M3 (2023) ELECTRICAL Diagram

#

Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-40B02

$26.79

2

RECTIFIER ASSY

32800-41H01

$155.43

3

BOLT

01550-0612B

$2.38

4

CDI UNIT

32900-43G10

$451.40

5

COIL ASSY,IGNITION

33410-36G00

$101.80

6

SCREW

02162-0620B

$2.19

7

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$13.49

8

SEAL, SPARK PLUG

33541-38210

$4.40

9

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

10

BATTERY ASSY,YTX5L-BS,12V4.2A | (YTX5L-BS,12V4.2AH)

33610-40B20

$74.48

11

CUSHION (30X40X2.0)

33652-36100

$2.56
