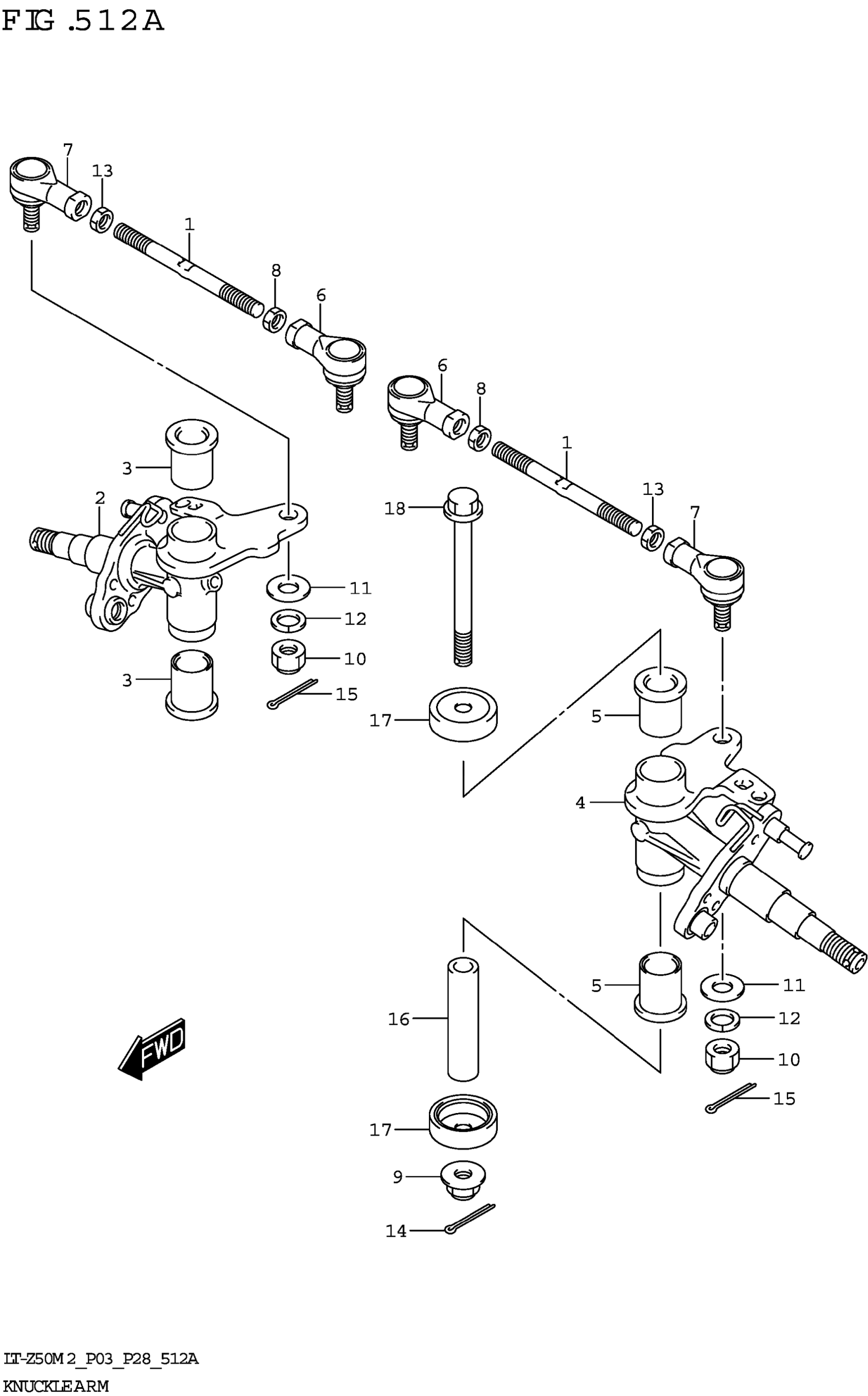

Find the part on the Knuckle ARM diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-Z50M2 Knuckle ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE-ROD,STEERING

51281-43F00

2
Out of stock

2

ARM,KNUCKLE,R

51230-43F00

1
Out of stock

3

.BUSH,KINGPIN

51236-40B00

2
Out of stock

4

ARM,KNUCKLE,L

51240-43F00

1
Out of stock

5

.BUSH,KINGPIN

51236-40B00

2
Out of stock

6

END,ROD,R

51260-43G00

2
Out of stock

7

END,ROD,L

51270-43G00

2
Out of stock

8

NUT (10X6)

09140-10043

2
Out of stock

9

NUT

08319-3110A

2
Out of stock

10

NUT

08319-2110B

—
Out of stock

11

WASHER (10.5X24X1.6)

09160-10126

4
Out of stock

12

WASHER,LOCK

09162-10010

4
Out of stock

13

NUT (LH THREAD)

09140-10027

2
Out of stock

14

PIN

04111-2020A

2
Out of stock

15

PIN

04111-2020A

4
Out of stock

16

SPACER,KING PIN

51251-40B00

2
Out of stock

17

DUST SEAL,KNUCKLE ARM (28.6X3 | X10.5)

51255-18900

4
Out of stock

18

BOLT,KNUCKLE ARM

51256-43G00

2
Out of stock
