2022 Suzuki LT-Z50M2 Gasket SET Diagram

← All diagrams

Find the part on the Gasket SET diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

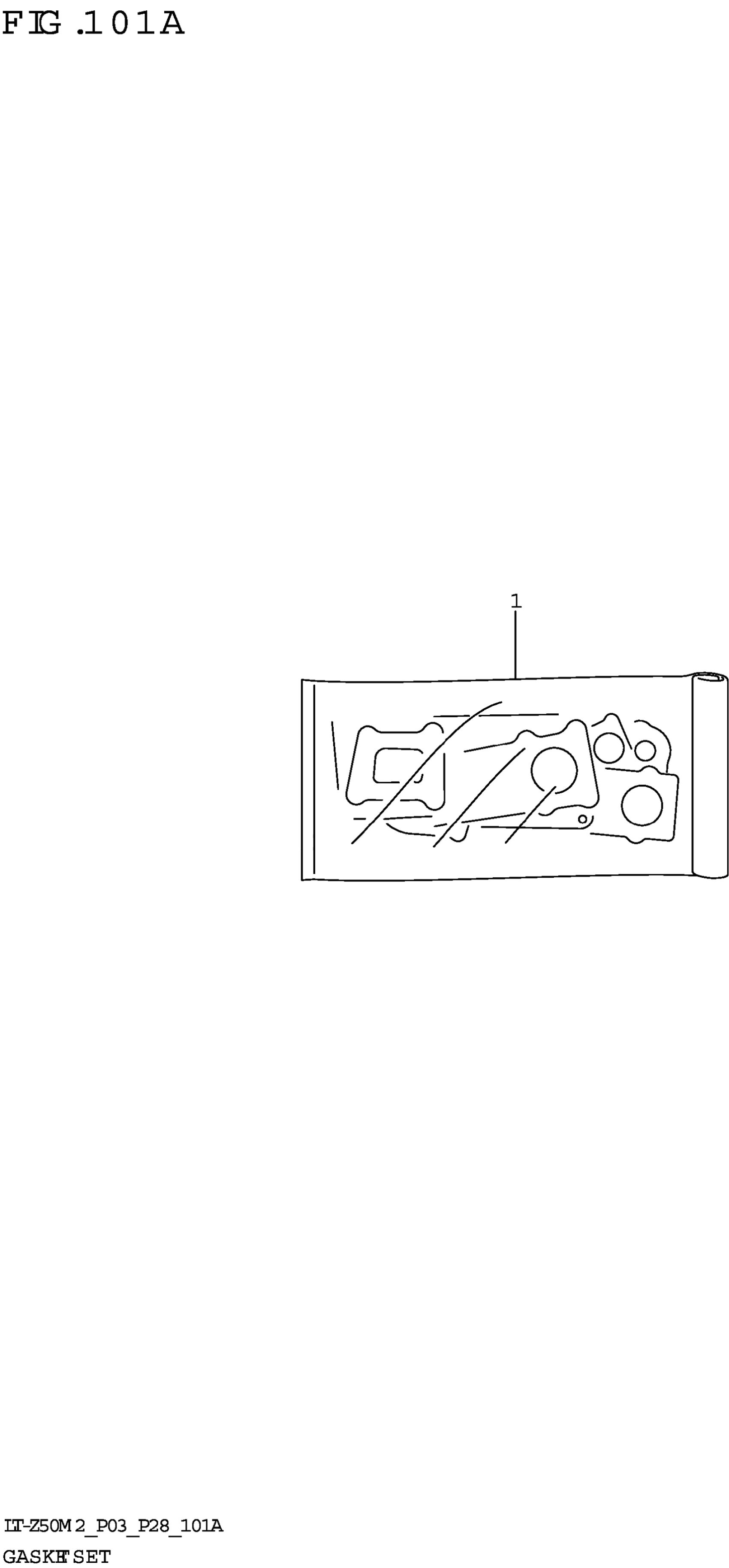

2022 Suzuki LT-Z50M2 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11401-22862

1
Out of stock

2

.GASKET,CYLINDER HEAD | OPT,NOT ILLUSTRATED

11141-22G10

1
Out of stock

3

.GASKET,CYL HEAD COVER | OPT,NOT ILLUSTRATED

11173-22G00

1
Out of stock

4

.GASKET,MAGNETO CASE | OPT,NOT ILLUSTRATED

11483-22G00

1
Out of stock

5

.GASKET,EXH PIPE | OPT,NOT ILLUSTRATED

14181-22G01

1
Out of stock

6

GASKET (5.8X13X1.2) | OPT,NOT ILLUSTRATED

09168-06023

1
Out of stock

7

GASKET (8.2X14X1) | OPT,NOT ILLUSTRATED

09168-08016

2
Out of stock
