2019 Suzuki LT-Z50L9 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2019 Suzuki LT-Z50L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

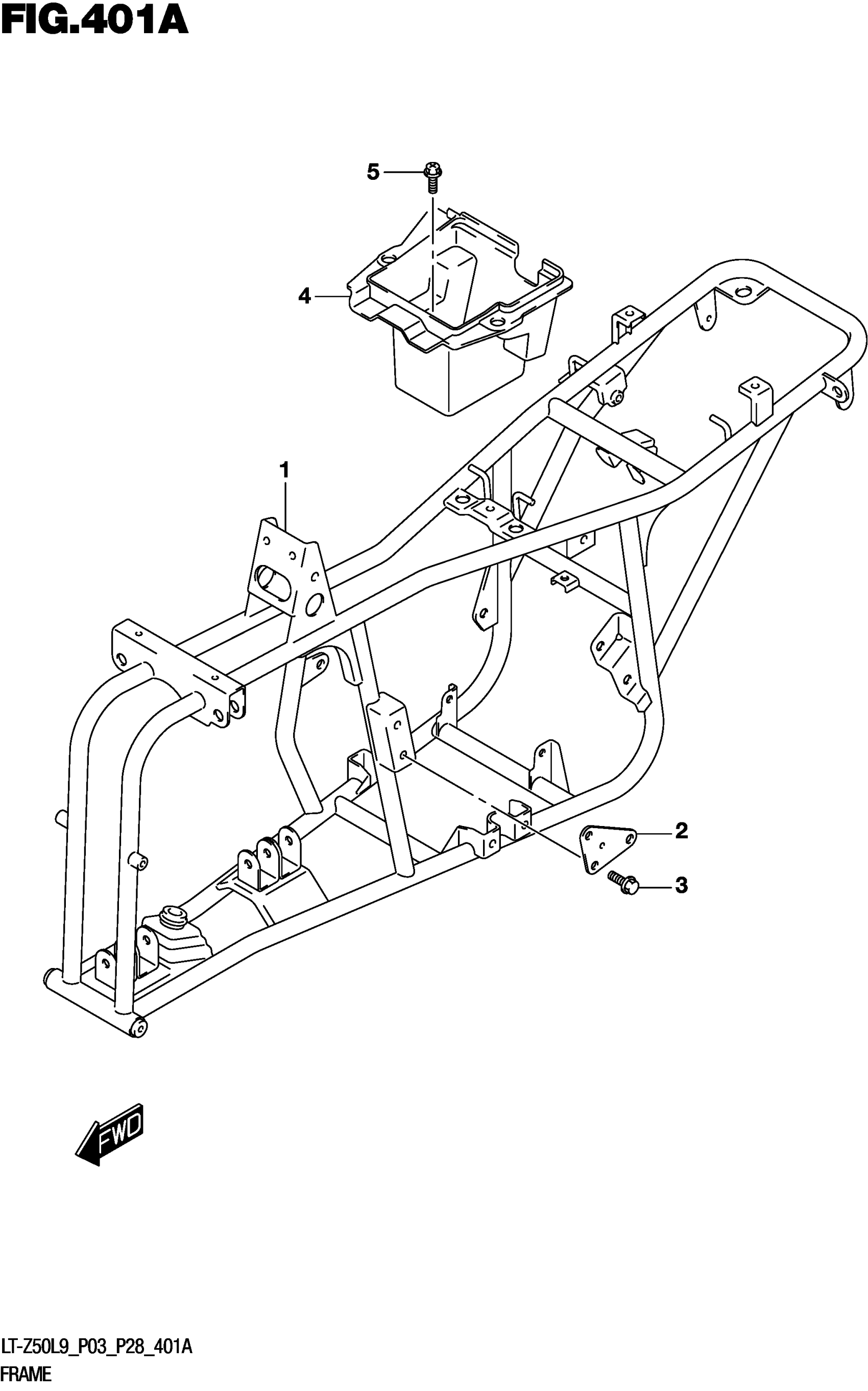

2019 Suzuki LT-Z50L9 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-43G10-019

1
Out of stock

2

PLATE,ENG MTG,L

41921-43G00

1
Out of stock

3

BOLT

01550-0816B

2
Out of stock

4

HOLDER,BATTERY

41541-43G00

1
Out of stock

5

BOLT (6X16)

09113-06001

1
Out of stock
