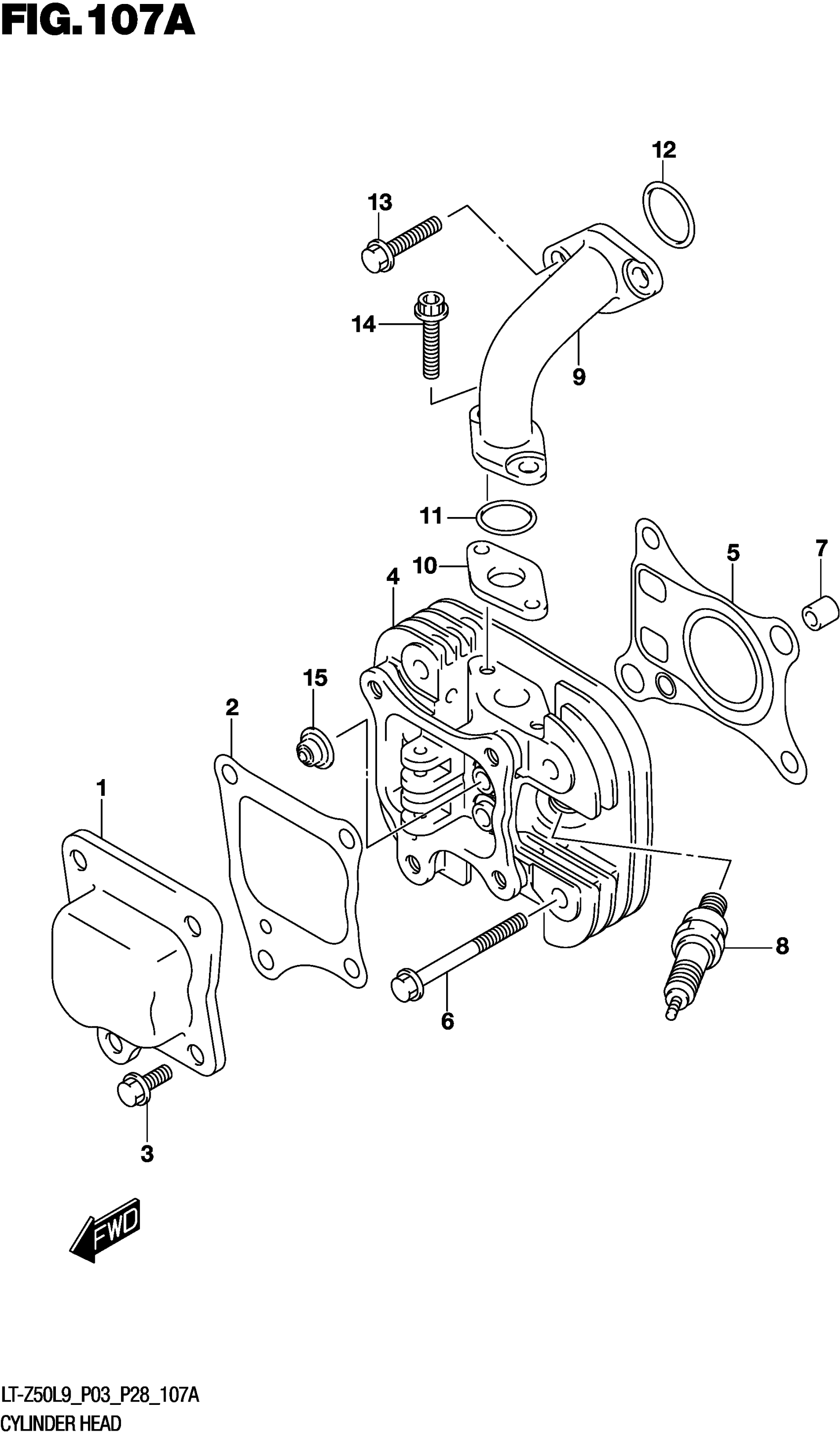

Suzuki LT-Z50L9 (2019) CYLINDER Diagram

#

Description
Price

1

COVER,CYLINDER HEAD

11171-22G00

$14.00

2

.GASKET,CYL HEAD COVER

11173-22G00

$4.32

3

BOLT (6X12)

09103-06172

$1.62

4

HEAD,CYLINDER

11110-22G00

$202.90

5

.GASKET,CYLINDER HEAD

11141-22G10

$6.45

6

BOLT,6X50 (6X50)

09103-06101

$2.72

7

PIN

04211-09109

$1.64

8-1

SPARK PLUG,CR6HSA (CR6HSA) | NGK

09482-00406

$2.92

8-2

SPARK PLUG,U20FSR-U (U20FSR-U | DENSO

09482-00407

Unavailable

9

PIPE,INTAKE

13111-43G00

$62.78

10

INSULATOR,INTAKE PIPE

13117-43G00

$6.73

11

O-RING (D:1.9,ID:14.5)

09280-15006

$2.80

12

O-RING (D:1.9,ID:21.8)

09280-21010

$2.02

13

BOLT

01550-0620B

$2.38

14

BOLT

07120-0620B

$2.80

15

SEAL,OIL (4X11.6X7.9)

09289-04006

$7.32
