2017 Suzuki LT-Z50L7 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2017 Suzuki LT-Z50L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

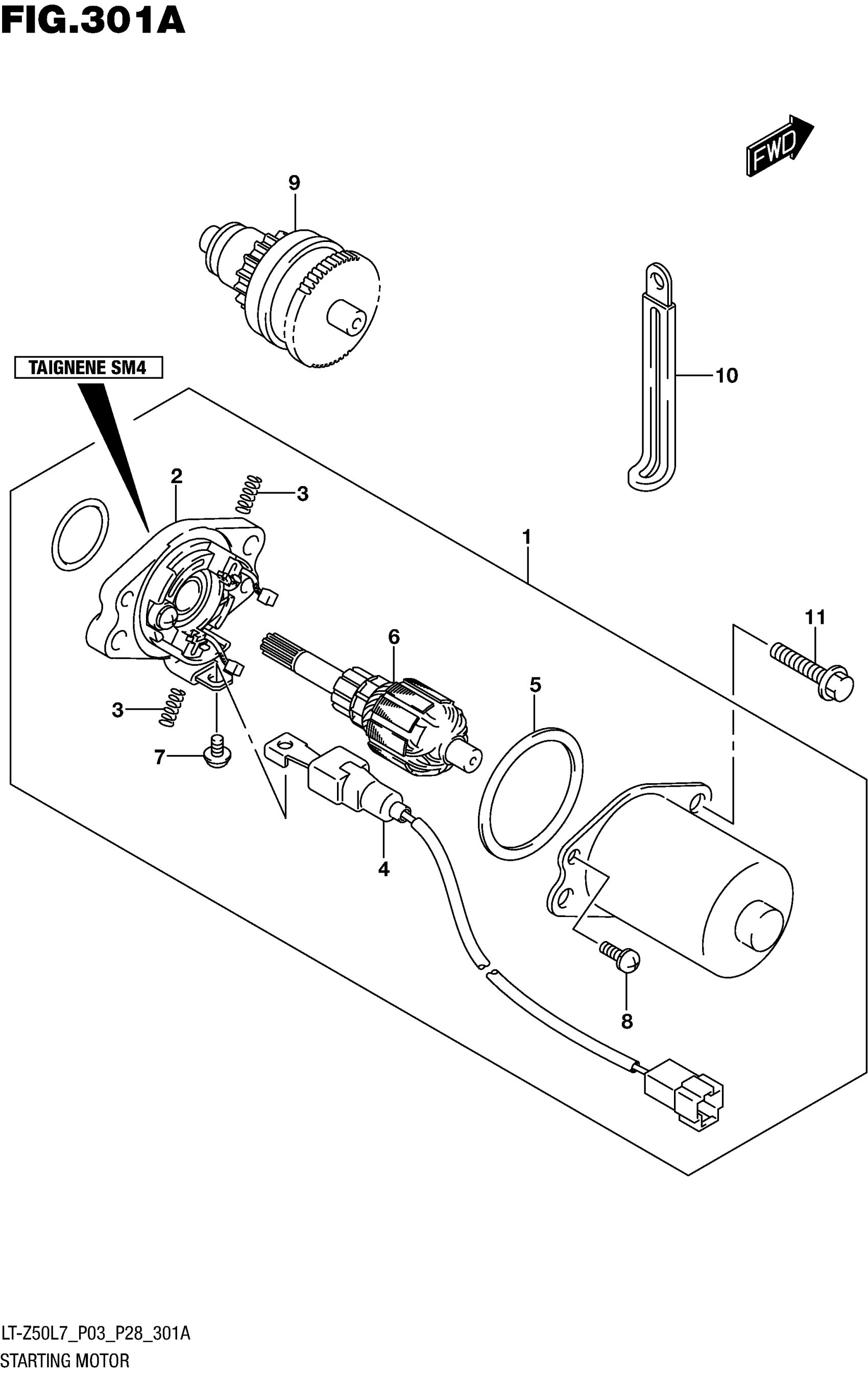

2017 Suzuki LT-Z50L7 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING This part replaces 31100-22G11.

31100-22G00

1
Out of stock

2

.HOLDER ASSY,BRUSH This part replaces 31130-22G10.

31130-37B01

1
Out of stock

3

.SPRING, BRUSH

31135-22G10

2
Out of stock

4

.WIRE, LEAD

31142-22G10

1

$59.40

In stock

5

.GASKET

31157-22G10

1

$7.92

In stock

6

.ARMATURE ASSY

31311-22G10

1
Out of stock

7

.SCREW

02112-3406A

1
Out of stock

8

.SCREW

02112-3410A

2
Out of stock

9

PINION ASSY,STARTING MOTOR This part replaces 31370-22G11.

31370-22G00

1
Out of stock

10

1

$1.89

In stock

11

BOLT, STARTING MOTOR

01547-0625B

2
Out of stock
