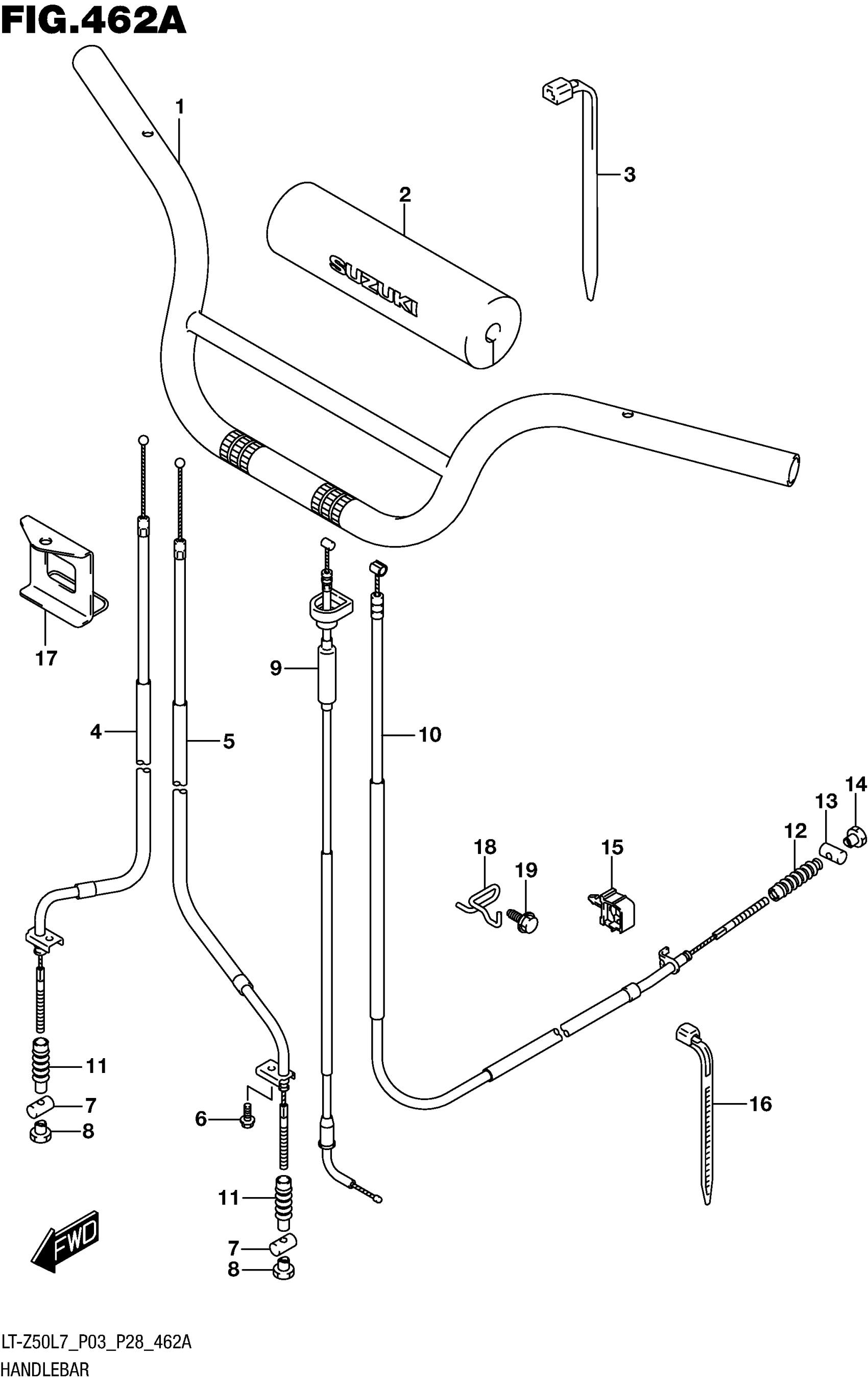

Suzuki LT-Z50L7 (2017) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-43G00-13L

$143.52

2

PAD, CROSS

56172-04600

$13.01

3

CLAMP

09407-18401

$1.86

4

CABLE,FRONT BRAKE,R

58110-43G00

$44.13

5

CABLE,FRONT BRAKE,L

58120-43G00

$45.39

6

BOLT

09106-06076

$3.01

7

PIN

09209-10001

$1.33

8

NUT

09150-05101

$2.80

9

CABLE ASSY,THROTTLE

58300-43G00

$39.05

10

CABLE,REAR BRAKE

58510-43G00

$43.20

11

BOOT,BRAKE CABLE

58553-43F00

$14.45

12

BOOT,FR BRAKE CABLE

58553-43F10

$8.07

13

PIN

09209-10001

$1.33

14

NUT

09150-05101

$2.80

15

CLAMP, REAR BRAKE

09403-12412

$3.87

16-1

CLAMP

09407-14403

$2.24

16-2

CLAMP

09407-12402

$2.80

17

GUIDE, FRONT BRAKE CABLE

58620-43F00

Unavailable

18

GUIDE,REAR BRAKE CABLE

58621-43G00

Unavailable

19

BOLT

09103-06172

$1.62
