2009 Suzuki LT-Z50 Front Brake Diagram

← All diagrams

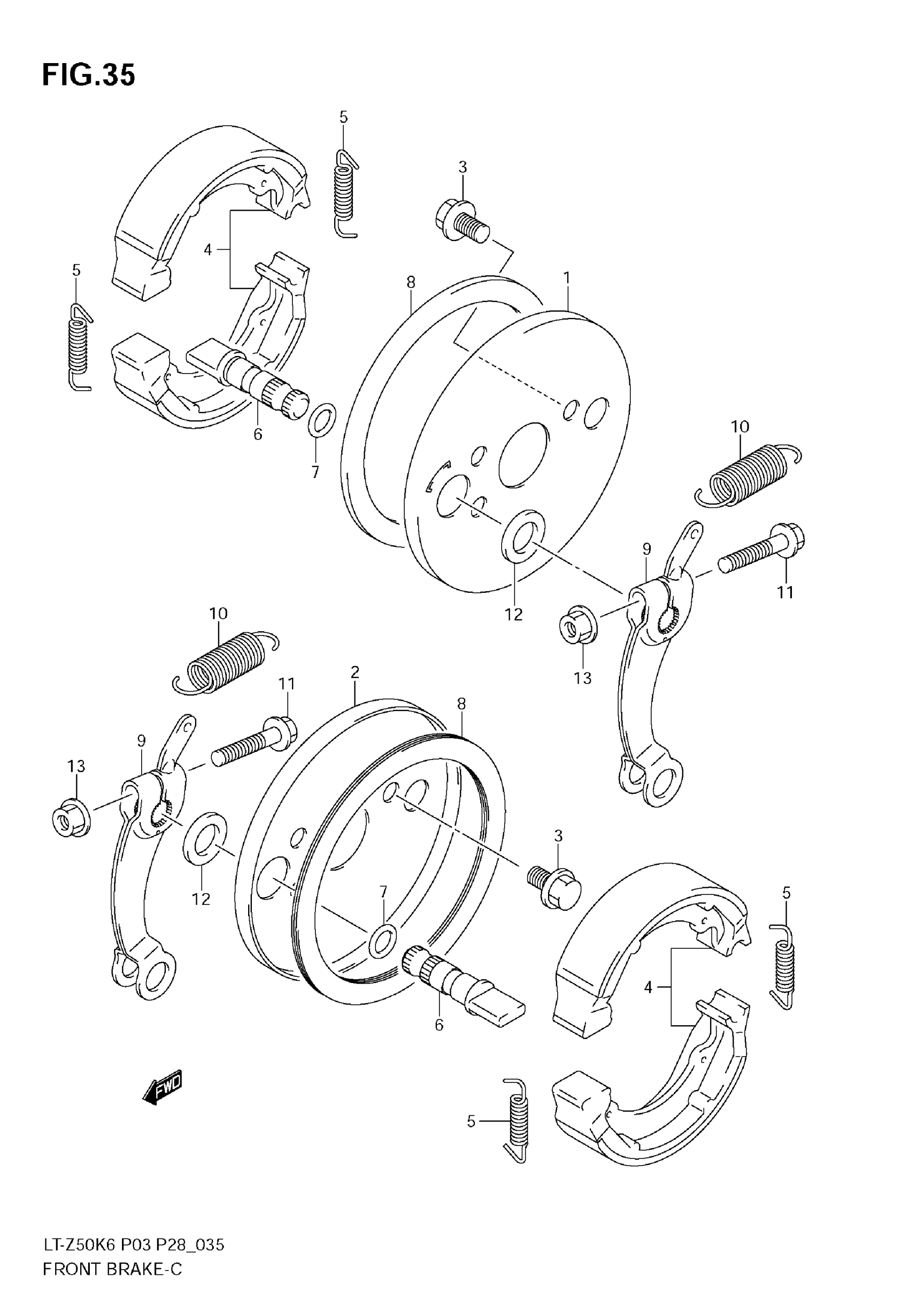

Find the part on the Front Brake diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z50 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE,FRONT BRAKE,R

54511-43F00

1
Out of stock

2

PLATE,FRONT BRAKE,L

54811-43F00

1
Out of stock

3

BOLT, BRAKE ANCHOR PANEL

01547-0610B

4
Out of stock

4

SHOE SET,BRAKE

54400-40810

2
Out of stock

5

SPRING, BRAKE SHOE

09443-06029

4
Out of stock

6

CAM, FRONT BRAKE

54441-02301

2
Out of stock

7

O RING, (ID:9.8,D:1.90)

09280-10016

2
Out of stock

8

SEAL,FRONT BRAKE DUST

54124-43F00

2
Out of stock

9

LEVER,FRONT BRAKE CAM

54450-43F00

2
Out of stock

10

SPRING

09443-10044

2
Out of stock

11

BOLT, CAM LEVER (5X27)

09103-05012

2
Out of stock

12

WASHER, CAM LEVER

08322-0110B

2
Out of stock

13

NUT, CAM LEVER

08316-1005B

2
Out of stock
