2009 Suzuki LT-Z50 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

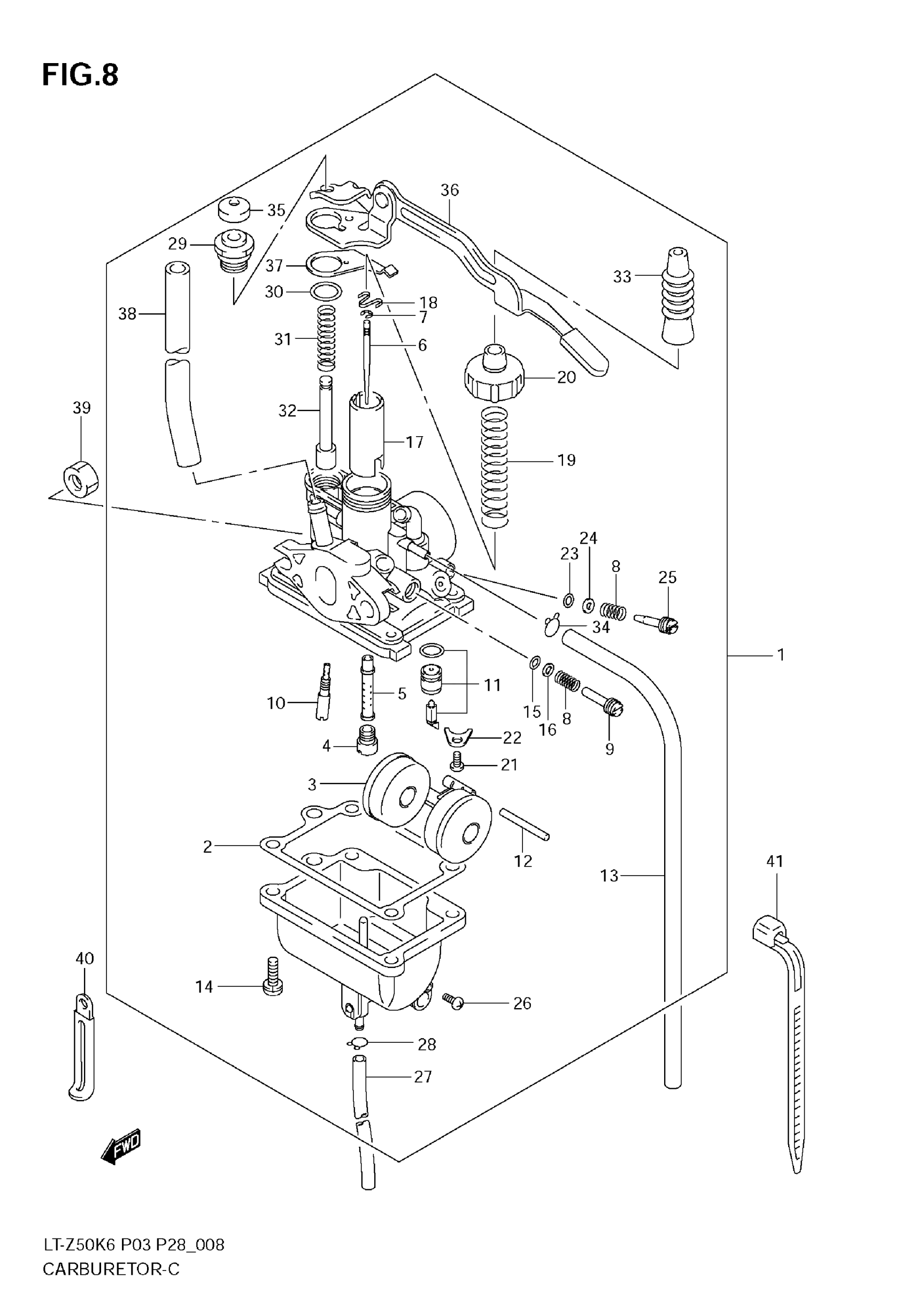

2009 Suzuki LT-Z50 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | Includes Item(s) 2 - 38 This part replaces 13200-43G00.

13200-43G01

1
Out of stock

2

GASKET

13251-02410

1
Out of stock

3

FLOAT

13250-02500

1
Out of stock

4

JET, MAIN

13347-43G00

1
Out of stock

5

JET, NEEDLE

13349-43G00

1
Out of stock

6

NEEDLE, JET

13383-43G00

1
Out of stock

7

CLIP, NEEDLE

13394-40D00

1
Out of stock

8

SPRING

13268-35010

2
Out of stock

9

SCREW, THROTTLE STOP

13483-16A01

1
Out of stock

10

JET, PILOT, 12.5

09492-12003

1
Out of stock

11

VALVE ASSY, NEEDLE

13370-36GA1

1
Out of stock

12

PIN, FLOAT

13254-20010

1
Out of stock

13

HOSE,5X10X600 | L:600!400 This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock

14

SCREW

13601-04148

4
Out of stock

15

WASHER

13291-35010

1
Out of stock

16

O RING

13295-33010

1
Out of stock

17

PISTON VALVE

13501-43G00

1
Out of stock

18

SEAT, THROTTLE VALVE SP

13581-04010

1
Out of stock

19

SPRING, THROTTLE VALVE

13573-02330

1
Out of stock

20

CAP

13261-28B00

1
Out of stock

21

PLATE, NEEDLE VALVE FIT

13373-46710

1
Out of stock

22

SCREW

02112-0306B

1
Out of stock

23

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

24

WASHER

13291-29900

1
Out of stock

25

ADJUSTER

13269-43G00

1
Out of stock

26

SCREW, DRAIN

13247-09G10

1
Out of stock

27

.HOSE (3X7X600) | L:600!250 This part replaces 09355-30705-600.

09355-30001-600

1
Out of stock

28

.CLIP This part replaces 13529-98010.

13529-98011

1
Out of stock

29

GUIDE HOLDER

13418-43G00

1
Out of stock

30

O RING

13278-02330

1
Out of stock

31

SPRING

13417-43G00

1
Out of stock

32

PLUNGER ASSY

13411-28700

1
Out of stock

33

CAP

13681-36GA0

1
Out of stock

34

CLIP

09401-08410

1
Out of stock

35

CAP

13416-46710

1
Out of stock

36

LEVER ASSY

13420-43G00

1
Out of stock

37

SPRING PLATE

13426-43G00

1
Out of stock

38

.HOSE This part replaces 13683-24A40.

13683-24A41

1
Out of stock

39

NUT, CARBURETOR

09140-06023

2
Out of stock

40

CLAMP, CARB OVERFLOW HOSE

09404-06429

1
Out of stock

41

CLAMP, AIR VENT HOSE

09407-14403

1
Out of stock
