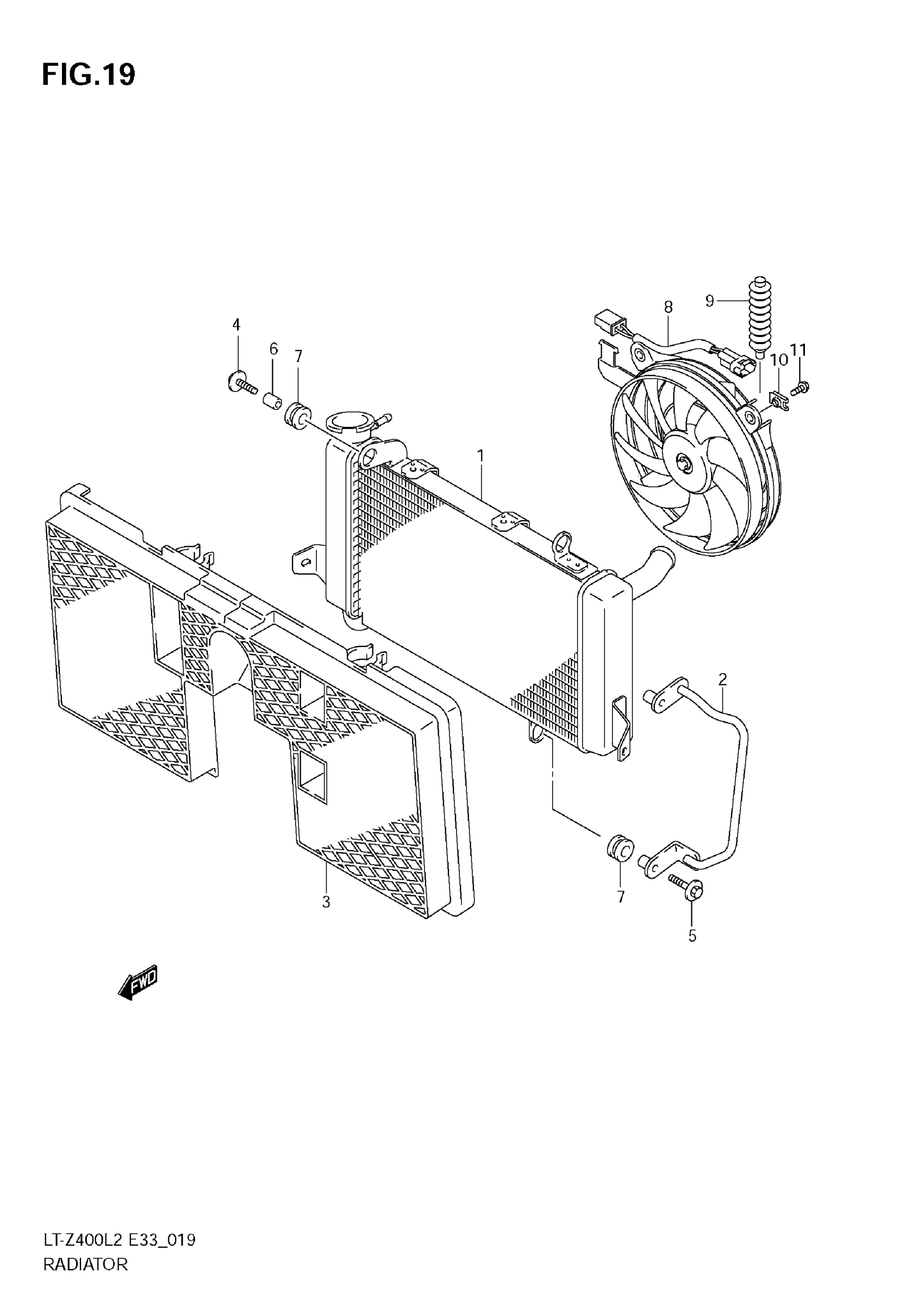

Suzuki LT-Z400L2 (2012) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-33H00

$1,110.82

2

GUARD, RADIATOR

17750-33H00

Unavailable

3

COVER, RADIATOR

17760-33H00

Unavailable

4

BOLT (6X25)

09118-06097

$2.57

5

BOLT

01550-0625B

$2.53

6

SPACER (6.5X10X12)

09180-06290

$2.09

7

CUSHION

09320-10042

$2.90

8

FAN ASSY,RADIAT This part replaces 17800-33H00.

17800-33H01

$479.73

9

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.36

10

NUT

17802-14F00

$3.33

11

BOLT

01550-0610B

$2.53
