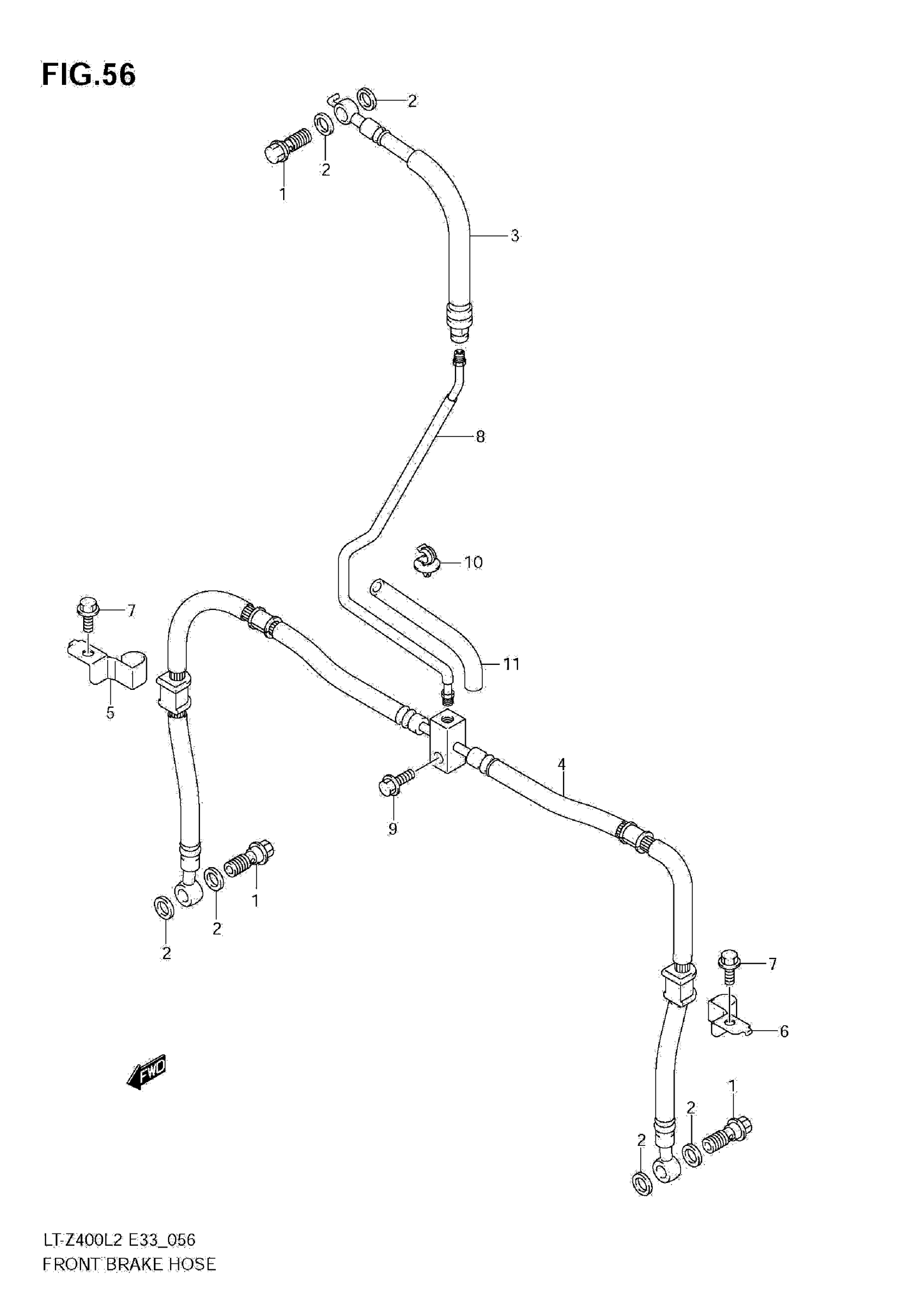

Suzuki LT-Z400L2 (2012) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION

09360-10062

$5.81

2

WASHER (10X15X1.5)

09161-10009

$1.83

3

HOSE This part replaces 59480-33H00.

59480-33H01

$79.53

4

HOSE, FRONT BRAKE NO.2

59240-33H00

Unavailable

5

CLAMP, HOSE NO.2 RH

59261-07G00

Unavailable

6

CLAMP, HOSE NO.2 LH

59271-07G00

Unavailable

7

BOLT

01547-0610A

$1.47

8

PIPE, FRONT BRAKE

59250-33H00

Unavailable

9

BOLT

01547-0616A

$2.01

10

CLAMP

09403-07331

$3.80

11

COVER, FR BRAKE PIPE

59281-07G00

Unavailable
