2012 Suzuki LT-Z400L2 Clutch Diagram

← All diagrams

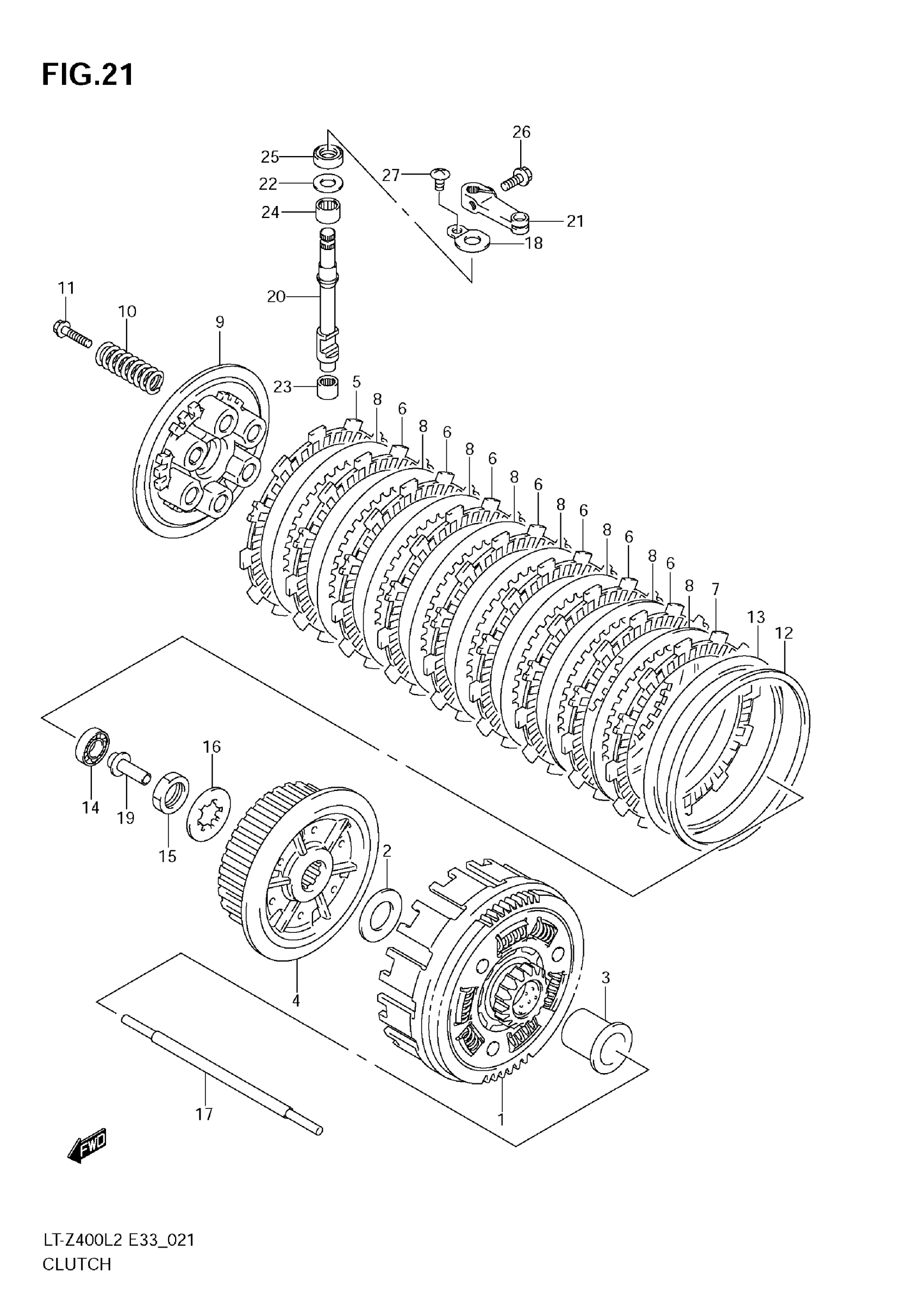

Find the part on the Clutch diagram for your 2012 Suzuki LT-Z400L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-Z400L2 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:74/25

21200-07G10

1
Out of stock

2

WASHER

08211-22425

1
Out of stock

3

SPACER, PRIMARY DRIVEN

21251-29F00

1
Out of stock

4

HUB, SLEEVE

21410-07G10

1
Out of stock

5

PLATE, DRIVE

21441-03G50

1
Out of stock

6

PLATE, DRIVE, NO.1

21441-29F00

7
Out of stock

7

PLATE, DRIVE, NO.2

21442-29F00

1
Out of stock

8

PLATE, DRIVEN

21451-07G00

8
Out of stock

9

DISC, PRESSURE

21462-07G10

1
Out of stock

10

SPRING

21413-29F00

6
Out of stock

11

BOLT

21482-07G10

6
Out of stock

12

WASHER (112X122X1)

09160-00003

1
Out of stock

13

WASHER

09164-00008

1
Out of stock

14

BEARING (12X28X8)

09262-12001

1
Out of stock

15

NUT

09140-20001

1
Out of stock

16

LOCK WASHER

09167-22021

1
Out of stock

17

ROD, CLUTCH PUSH

23110-07G00

1
Out of stock

18

RETAINER, CL RLSE OIL SEAL

23117-05200

1
Out of stock

19

PIECE, CL RLSE

23121-29F00

1
Out of stock

20

CAM SHAFT, CL RLSE

23122-29F00

1
Out of stock

21

ARM, CL RLSE

23271-20902

1
Out of stock

22

SHIM (10X20X1)

09181-10195

1
Out of stock

23

BEARING (10X14X10)

09263-10014

1
Out of stock

24

BEARING (12X16X10)

09263-12024

1
Out of stock

25

OIL SEAL (10X20X6)

09282-10012

1
Out of stock

26

BOLT

01547-0616A

1
Out of stock

27

SCREW

02142-0610A

1
Out of stock
