2009 Suzuki LT-Z400 Cylinder Diagram

← All diagrams

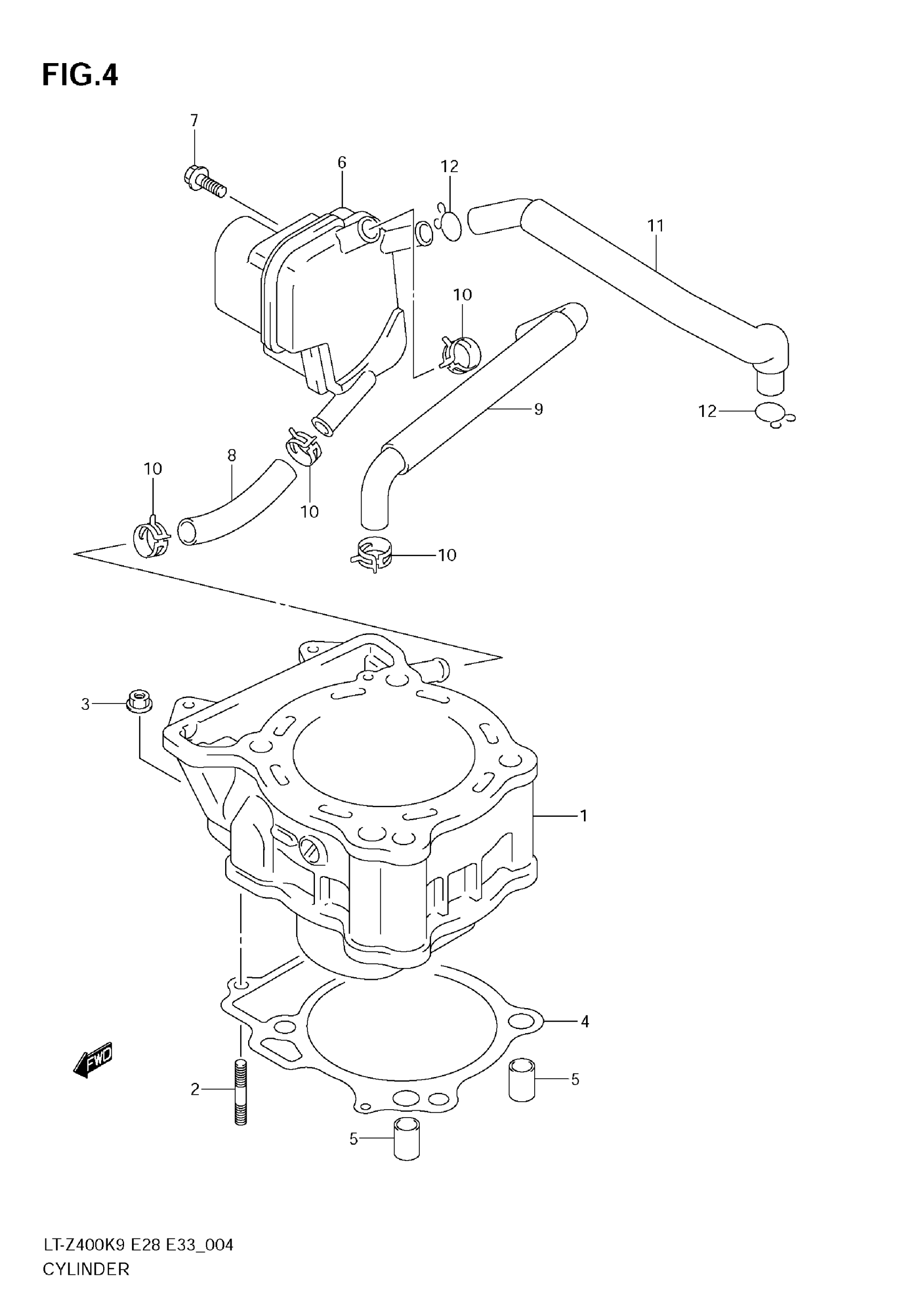

Find the part on the Cylinder diagram for your 2009 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z400 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-29F20-0F0

1

$1,061.57

In stock

2

STUD BOLT

01421-0625A

2
Out of stock

3

NUT

08316-1006A

2
Out of stock

4

GASKET, CYLINDER

11241-29F11

1

$23.29

In stock

5

PIN

04211-13189

2
Out of stock

6

TANK, OIL RETURN

11330-07G10

1

$77.42

In stock

7

BOLT

01547-0610B

1
Out of stock

8

HOSE, BREATHER

11332-07G00

1

$10.25

In stock

9

HOSE, BREATHER

11333-07G10

1

$25.68

In stock

10

CLIP

09401-15404

4

$2.42

In stock

11

HOSE, BREATHER

11334-07G10

1
Out of stock

12

CLIP

09401-15101

2
Out of stock
