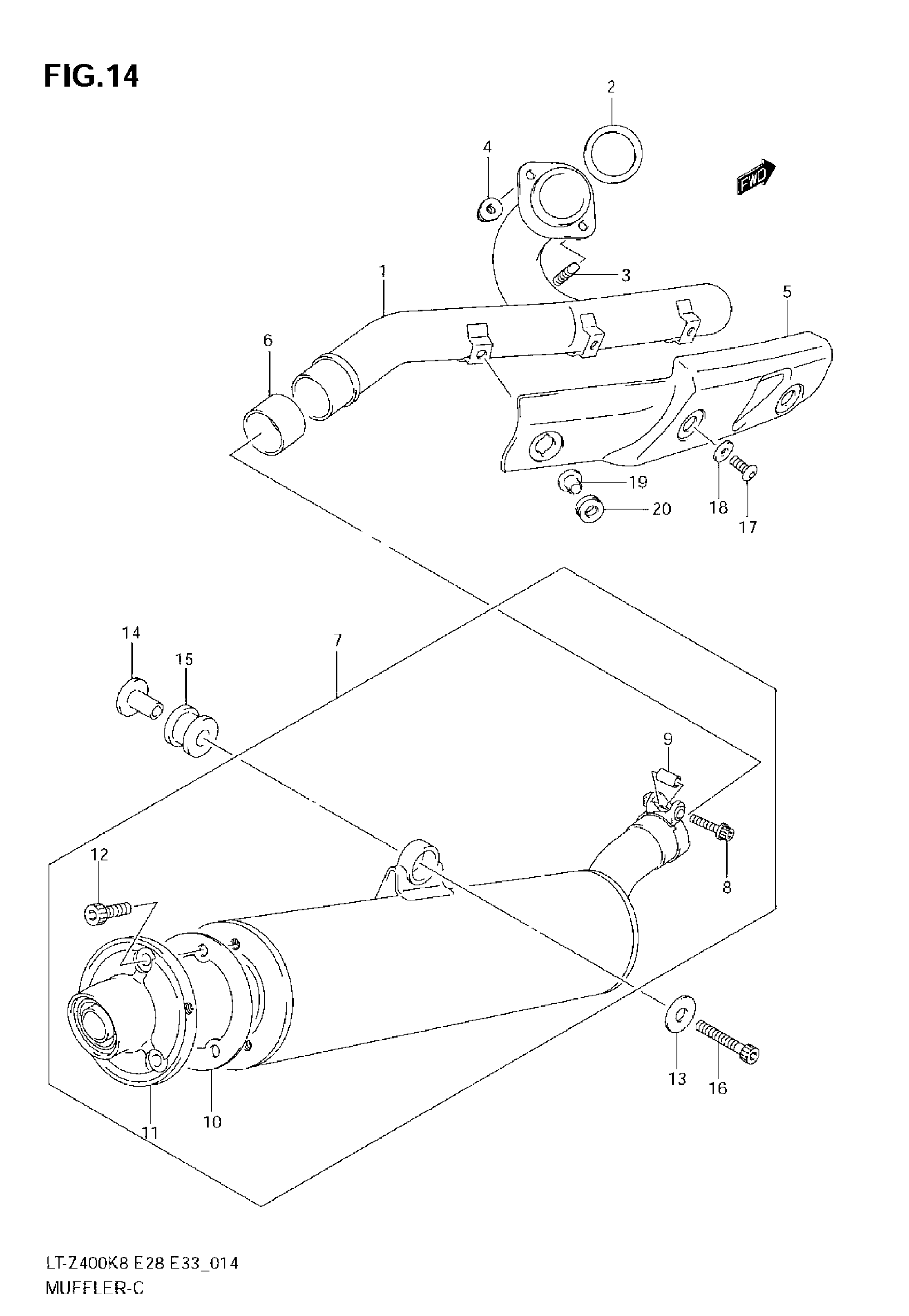

Suzuki LT-Z400 (2008) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-07G02

$238.21

2

GASKET, EXHAUST PIPE

14181-29E02

$15.68

3

STUD BOLT

01421-0825B

$3.22

4

NUT

08319-3108B

$2.80

5

COVER, EXHAUST PIPE

14180-07G00

$87.13

6

CONNECTOR, MUFFLER

14771-07G00

$31.63

7

BODY, MUFFLER | Includes Item(s) 8 - 12

14310-07G12

$755.85

8

BOLT

07120-0840B

$3.62

9

SPACER

14424-07G01

$4.47

10

GASKET

14773-29F00

$6.48

11

ARRESTER

14850-07G11

$147.37

12

BOLT

09106-06076

$3.12

13

WASHER

09160-08503

$2.61

14

SPACER

09180-08152

$5.42

15

CUSHION

09320-12071

$8.67

16

BOLT

07120-0840B

$3.62

17

SCREW, EXHAUST PIPE COVER

09139-06109

$2.80

18

WASHER, EXHAUST PIPE COVER

14184-07G00

$1.93

19

SPACER, EXHAUST PIPE COVER

14185-07G00

$3.70

20

CUSHION, EXHAUST PIPE COVER

09320-08069

$7.93
