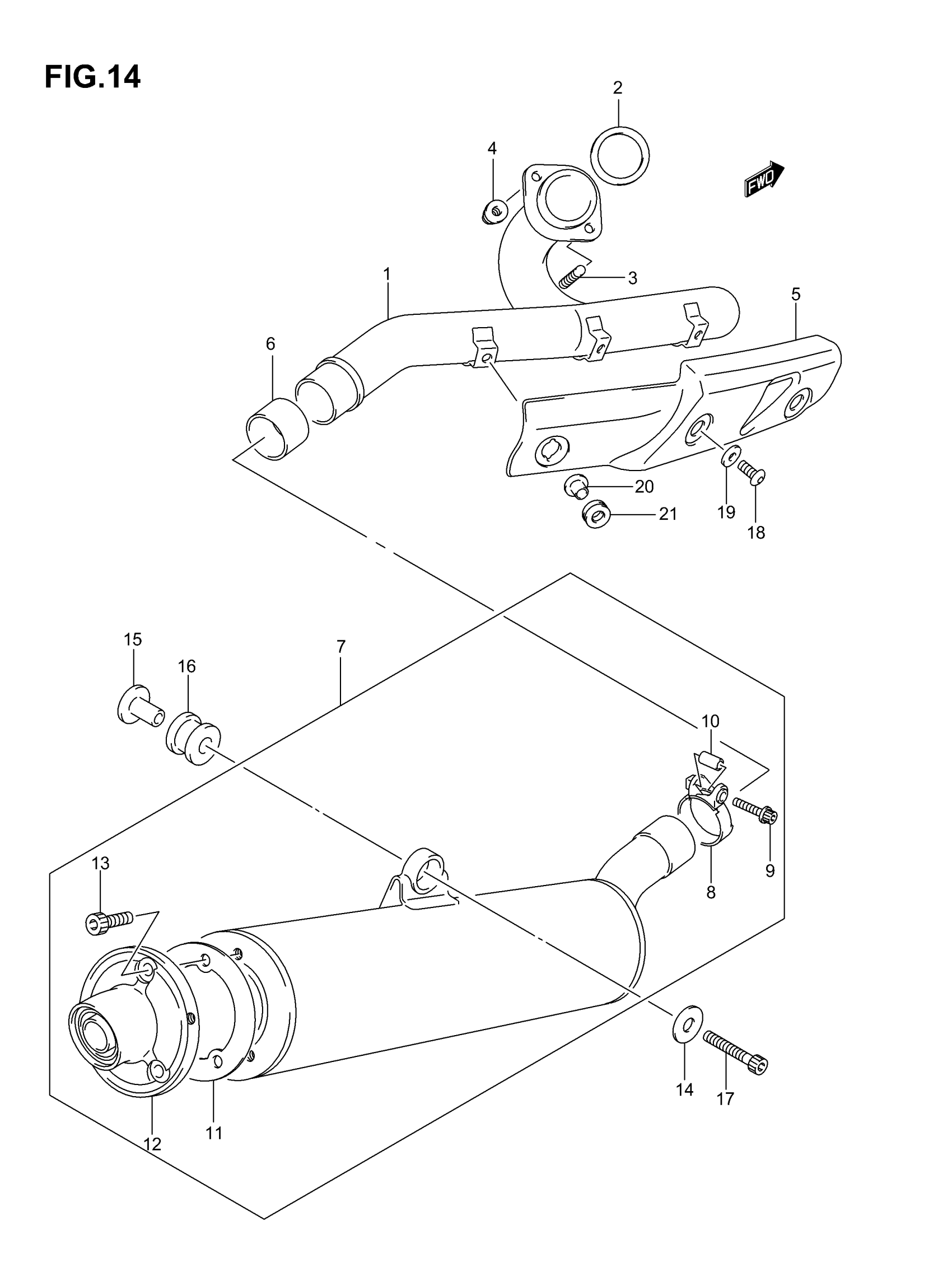

Suzuki LT-Z400 (2007) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL K3/K4 This part replaces 14150-07G00.

14150-07G02

$238.21

1

PIPE, EXHAUST | MODEL K5 This part replaces 14150-07G01.

14150-07G02

$238.21

1

PIPE, EXHAUST | MODEL K6/K7

14150-07G02

$238.21

2

GASKET, EXHAUST PIPE

14181-29E02

$15.00

3

BOLT,STUD This part replaces 01421-08253.

01421-0825A

$2.01

4

NUT This part replaces 08319-31083.

08319-3108A

$2.31

5

COVER, EXHAUST PIPE

14180-07G00

$87.13

6

CONNECTOR, MUFFLER | MODEL K3

14771-29F10

$30.15

6

CONNECTOR, MUFFLER | MODEL K4/K5/K6/K7

14771-07G00

$31.63

7

BODY, MUFFLER | MODEL K3 This part replaces 14310-07G00.

14310-07G12

$755.85

7

BODY, MUFFLER | MODEL K4 This part replaces 14310-07G10.

14310-07G12

$755.85

7

BODY, MUFFLER | MODEL K5 This part replaces 14310-07G11.

14310-07G12

$755.85

7

BODY, MUFFLER | MODEL K6/K7; Includes Item(s) 8 - 13

14310-07G12

$755.85

8

CLAMP | MODEL K3

14459-07G00

$24.33

9

BOLT This part replaces 07120-08403.

07120-0840A

$3.08

10

SPACER

14424-07G01

$4.47

11

GASKET

14773-29F00

$6.19

12

ARRESTER | MODEL K3

14850-07G00

$139.58

12

ARRESTER | MODEL K4 This part replaces 14850-07G10.

14850-07G11

$147.37

12

ARRESTER | MODEL K5/K6/K7

14850-07G11

$147.37

13

BOLT

09106-06076

$3.01

14

WASHER

09160-08503

$2.53

15

SPACER

09180-08152

$5.26

16

CUSHION

09320-12071

$8.37

17

BOLT This part replaces 07120-08403.

07120-0840A

$3.08

18

SCREW, EXHAUST PIPE COVER

09139-06109

$2.73

19

WASHER, EXHAUST PIPE COVER

14184-07G00

$1.93

20

SPACER, EXHAUST PIPE COVER

14185-07G00

$3.53

21

CUSHION, EXHAUST PIPE COVER

09320-08069

$7.67
