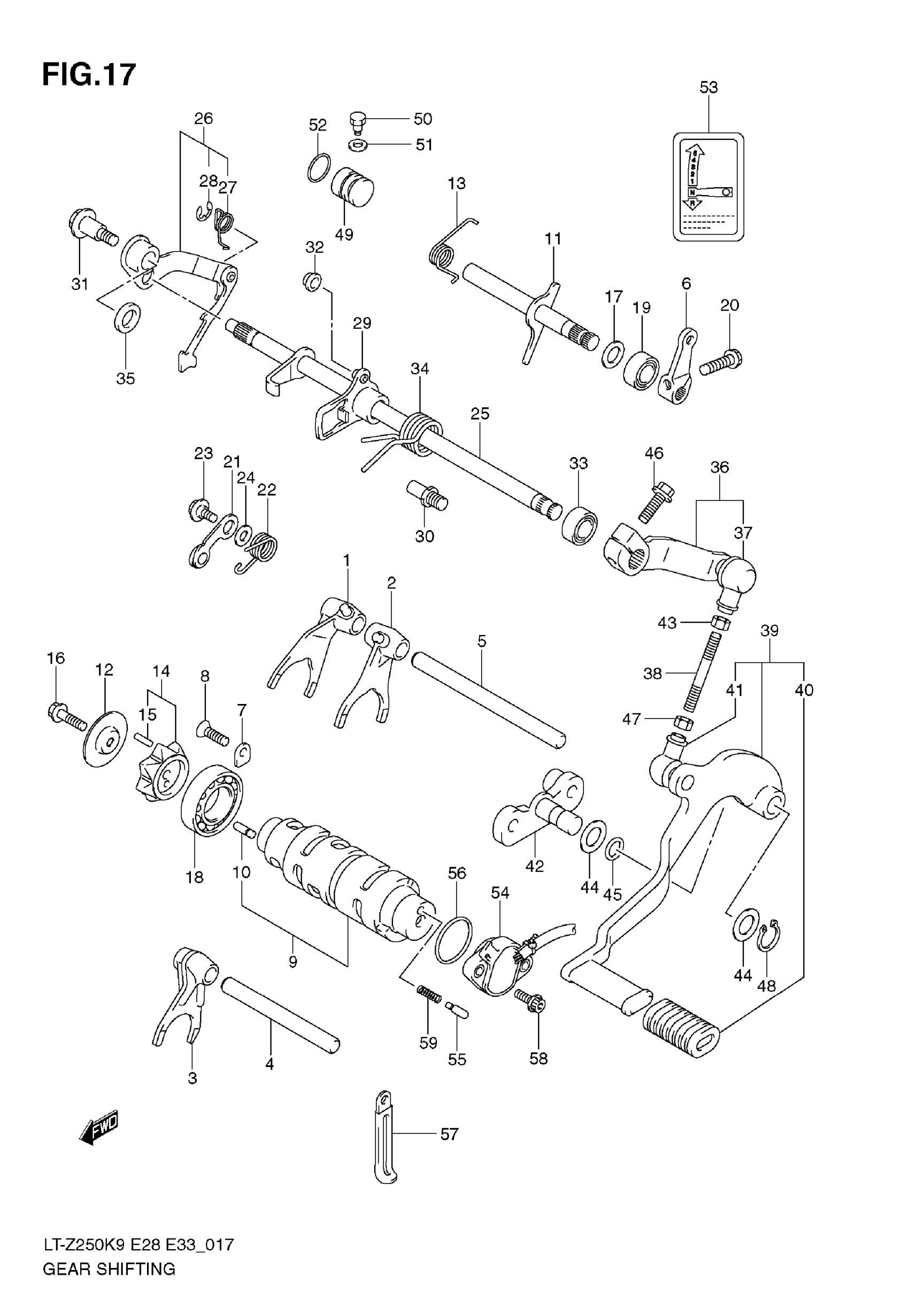

Suzuki LT-Z250 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING, NO.1

25211-05G00

Unavailable

2

FORK, GEAR SHIFTING, NO.2

25221-05G00

$98.98

3

FORK, GEAR SHIFTING, NO.3

25231-19B00

$98.98

4

SHAFT, GEAR SHIFT FORK NO.2

25411-14331

$26.03

5

SHAFT, GEAR SHIFT FORK NO.1

25411-24501

Unavailable

6

ARM, SHIFT CAM LOCK

23271-49100

$36.22

7

RETAINER

24741-20A00

$2.80

8

SCREW, CAM BEARING (6X12)

09126-06011

$2.01

9

CAM, GEAR SHIFT | Includes Item(s) 10

25310-05G01

Unavailable

10

PIN (4X13.8)

04221-04089

$1.10

11

SHAFT, SHIFT CAM LOCK

25320-05G02

Unavailable

12

RETAINER, GEAR SHIFT CAM

25322-05G00

Unavailable

13

SPRING, SHIFT CAM LOCK

25328-05G00

Unavailable

14

PLATE, GEAR SHIFT CAM | Includes Item(s) 15

25380-05G00

Unavailable

15

ROLLER (4X13.8)

09261-04002

$1.87

16

BOLT This part replaces 09103-06084.

09103-06282

$2.72

17

WASHER, SHIFT CAM (12X20X1.0)

09181-12167

$2.24

18

BEARING, GEAR SHIFT (25X47X8)

09262-25006

$23.05

19

OIL SEAL (12X22X9)

09285-12006

$5.70

20

BOLT, SHIFT CAM

01550-0620B

$2.38

21

STOPPER, GEAR SHIFT CAM

25350-24B00

$16.77

22

SPRING, GEAR SHIFT CAM

25355-05G00

Unavailable

23

BOLT, GEAR SHIFT (6X14.3)

09111-06041

$2.63

24

WASHER

08211-06141

$1.61

25

SHAFT, GEAR SHIFT

25510-05G20

Unavailable

26

ARM, GEAR SHIFT NO.2 | Includes Item(s) 27 - 28

25520-05G00

Unavailable

27

SPRING

25527-05G00

Unavailable

28

E RING

08332-1107A

$1.77

29

ARM, GEAR SHIFT LINK

25540-05G20

Unavailable

30

STOPPER, GEAR SHIFT ARM

25671-38B00

$6.00

31

BOLT, GEAR SHIFT

09103-08193

Unavailable

32

ROLLER, GEAR SHIFT

09180-07014

$3.71

33

OIL SEAL (14X22X6)

09283-14006

$6.04

34

SPRING

09444-26025

$5.80

35

WASHER

08211-08201

$2.06

36

ARM,GEAR SHIFT | Includes Item(s) 37 This part replaces 25520-21G00.

25520-21G01

$76.90

37

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

38

ROD, GEAR SHIFT LINK

25525-12C10

$9.97

39

LEVER ASSY,GEAR | Includes Item(s) 40 - 41 This part replaces 25600-21G10.

25600-21G11

$84.13

40

RUBBER

25652-49300

$4.78

41

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

42

PLATE, SHIFT SUPPORT

25670-05G30

$47.90

43

NUT

09140-06025

$1.84

44

WASHER (13X20X1.0)

09160-13010

$2.27

45

O RING (D:1.9,ID:9.8)

09280-10016

$3.04

46

BOLT

01550-0620B

$2.38

47

.NUT

08310-00067

$1.83

48

CIRCLIP, GEAR SHIFT LEVER

08331-3113A

$2.43

49

PLUG, SPDOM HOLE

26442-21G00

Unavailable

50

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$2.80

51

WASHER, SPDOM (6.2X11X1.2)

09168-06004

$1.43

52

O RING (D:1.9,ID:16.6)

09280-17004

$3.98

53

LABEL, GEAR SHIFT PATTERN

68392-05G00

Unavailable

53

LABEL, GEAR SHIFT PATTERN | E28

68392-05G10

Unavailable

54

BASE ASSY, GEAR SHIFT

37720-21G00

$158.42

55

CONTACT

09209-05011

$2.02

56

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

57

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

58

BOLT

07120-0516A

$1.72

59

SPRING, GEAR SHIFT

09440-04010

$1.52
