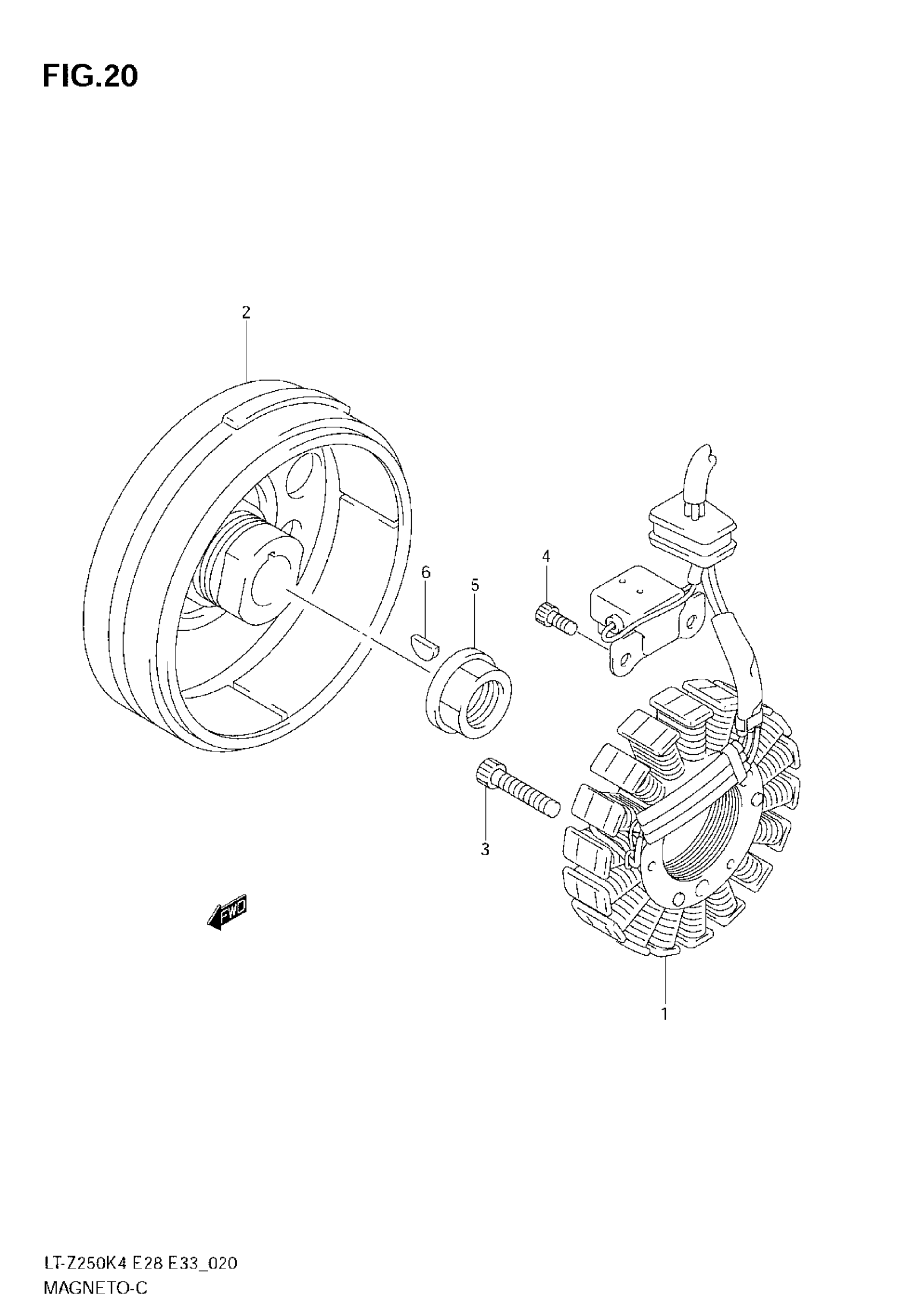

Suzuki LT-Z250 (2008) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-05G00

$358.19

2

ROTOR

32102-05G00

Unavailable

3

BOLT, MAGNETO STATOR

07130-0525B

$2.70

4

BOLT, SENSOR

07130-0510B

$2.64

5

NUT, MAGNETO ROTOR

31792-18A00

$13.40

6

KEY

09420-04008

$3.08
